Siecor 5000 Series - Crimping Device; Heatshrink Oven, Adjustable with Universal Splice Tray Holder; Characteristics; Installation

Operating Instructions 8-9 M90 Fusion Splicer
Issue 02/97 Accessories
Heatshrink Oven, Adjustable with Universal Splice Tray
Holder
Characteristics
The heatshrink oven is required for protecting the spliced joint with the heat-shrink
splice protector.
The adjustable heatshrink oven provides:
- Fully automatic heat-shrinking.
- Indication of heat-shrinking time by LED.
- Adjustable heating time and temperature.
- The heat-shrink process is indicated by LED.
Installation

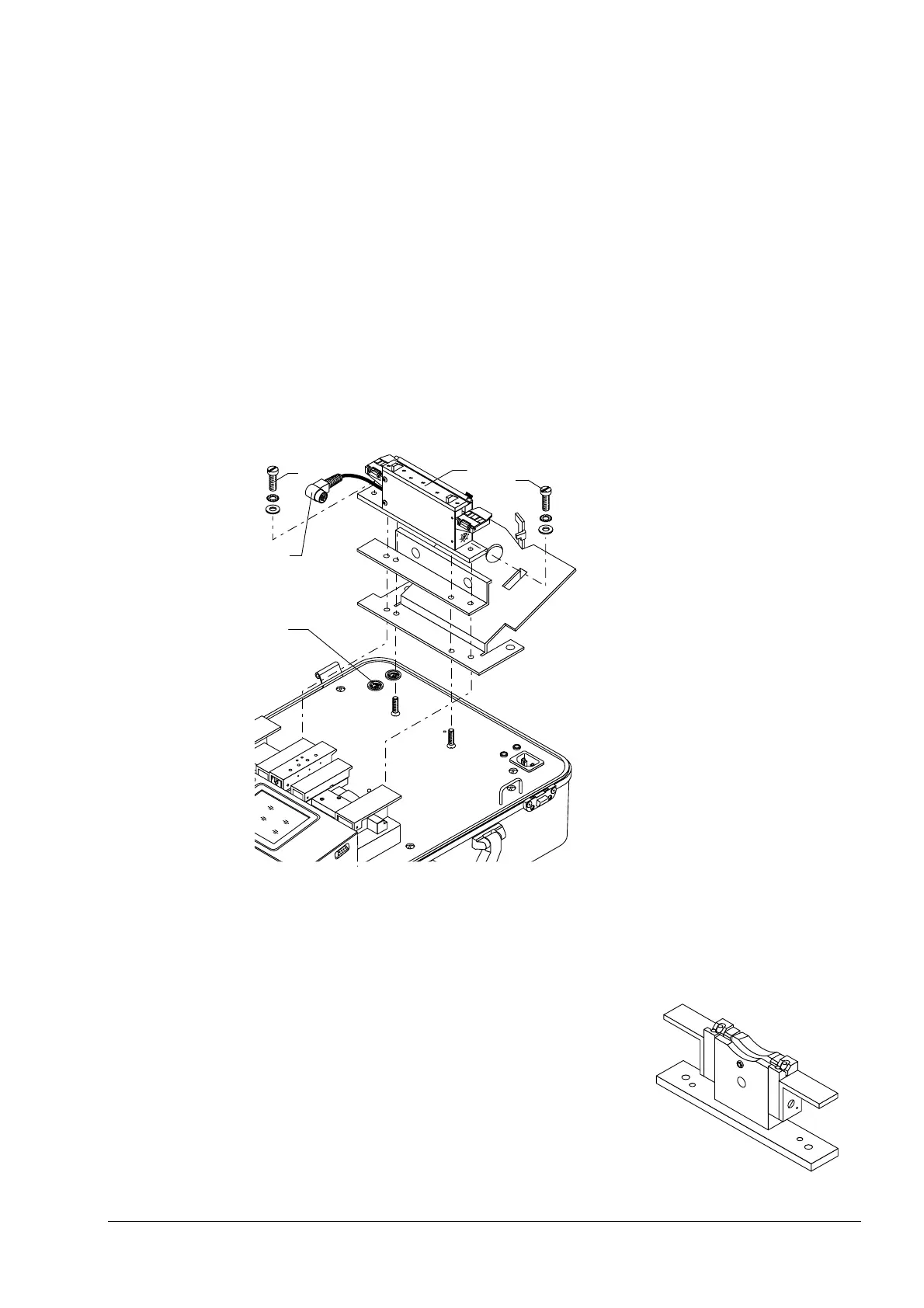

-Secure the universal splice tray holder together with heat-shrink oven on the splicer
with the two bolts (1).
-Ensure that the cover (2) is closed.
-Insert the plug (3) in the socket (4).
4
1
1
3
2
Further informa-
tion
For further information regarding e.g. operation and technical specifications, please
refer to the Operating Instructions for the "Heat-Shrink Oven, Adjustable".
Crimping Device
Characteristics The crimp splice protector consists of a V-shaped alumi-
num section with a soft coating on the inside edges. This
splice protector is crimped around the splice after splicing
using the crimper and restores the mechanical stability of
the spliced joint.
