Siecor 5000 Series - Inputs; Outputs; RS 232 Interface; External Video Output

Operating Instructions 1-9 M90 Fusion Splicer
Issue 02/97 Getting to Know the M90 Fusion Splicer
Inputs / Outputs
Overview
M=23%
1
2
3

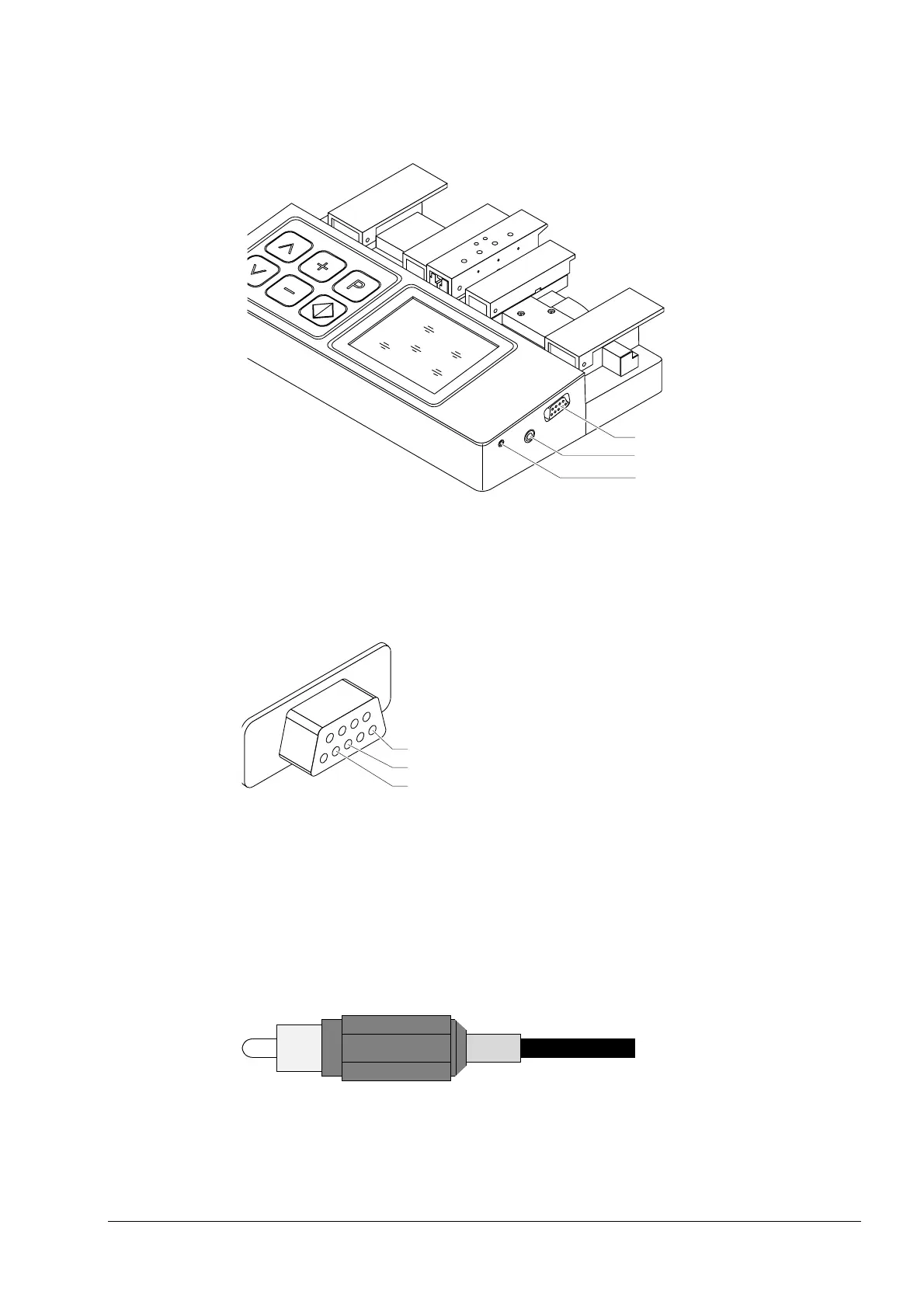

Inputs and Outputs
1 RS 232
interface
2 External
video output
3 External
LID input
RS 232
interface
The RS 232 interface can be used to print out the splice values and splicing parameters
or to transfer these to a computer with appropriate terminal software.
Pin assignment
PIN 5
PIN 3
PIN 2
RS 232 Interface
PIN 2: RXD
PIN 3: TXD
PIN 5: Ground
External
video output
An external monitor of European standard
CCIR
(625 lines, 50 Hz) with an input imped-
ance of 75 Ω or higher can be connected to the video output.
RF cable A cinch plug and an RF cable (75 Ω) must be used to connect the external monitor.
Cinch Plug
