Siecor 5000 Series - Fixed Parameters (LID); Automatic; Variable Fusion Curve; Automatic

Operating Instructions 4-15 M90 Fusion Splicer
Issue 02/97 Splicing

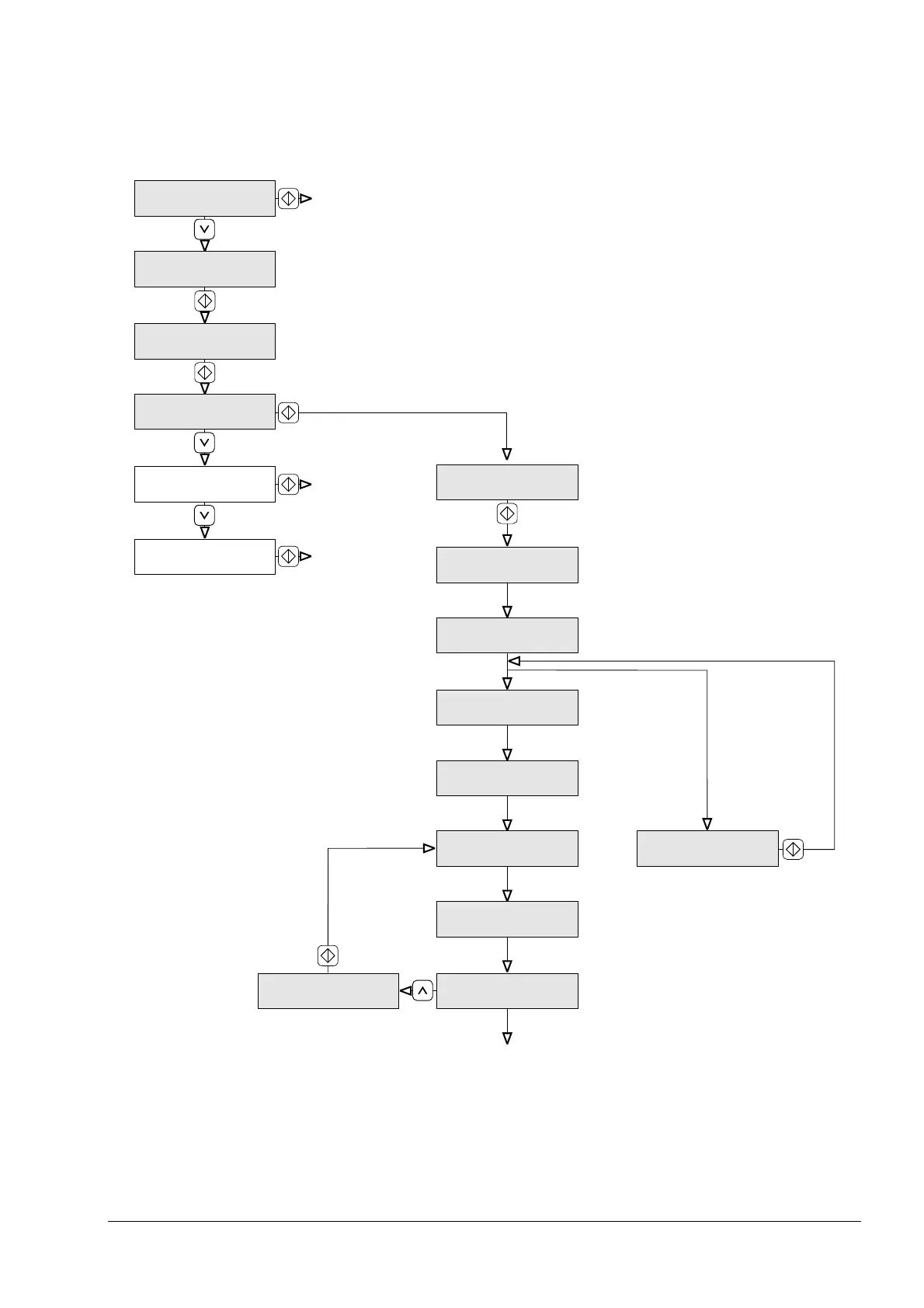

Fixed Parameters (LID) / Automatic
Variable Fusion Curve / Automatic
Automatic XYZ, clean,
fuse?
Fully automatic
Automatic
Semi automatic
Manual
Clean fibers?
Searching fibers?
Align fibers manually?
Automatic XYZ and
fuse?
Automatic XY?
If error message
Automatic Z
level ####
Automatic Z
level ####
XY Video automatic
Prefusion current
### mA
Fusion current
### mA
Attenuation
#,## dB
Fuse again?
End
1*
Bad endface
fusing?
Automatic XY
level ####
Automatic XY
level ####
1* The attenuation indicator flashes if fusion is performed after the "Bad endface, fusing?" display.
