Siecor 5000 Series - Are the Flaps Closed; Cleaver

M90 Fusion Splicer 6-4 Operating Instructions
Taking Out of Service Issue 02/97
Cleaver

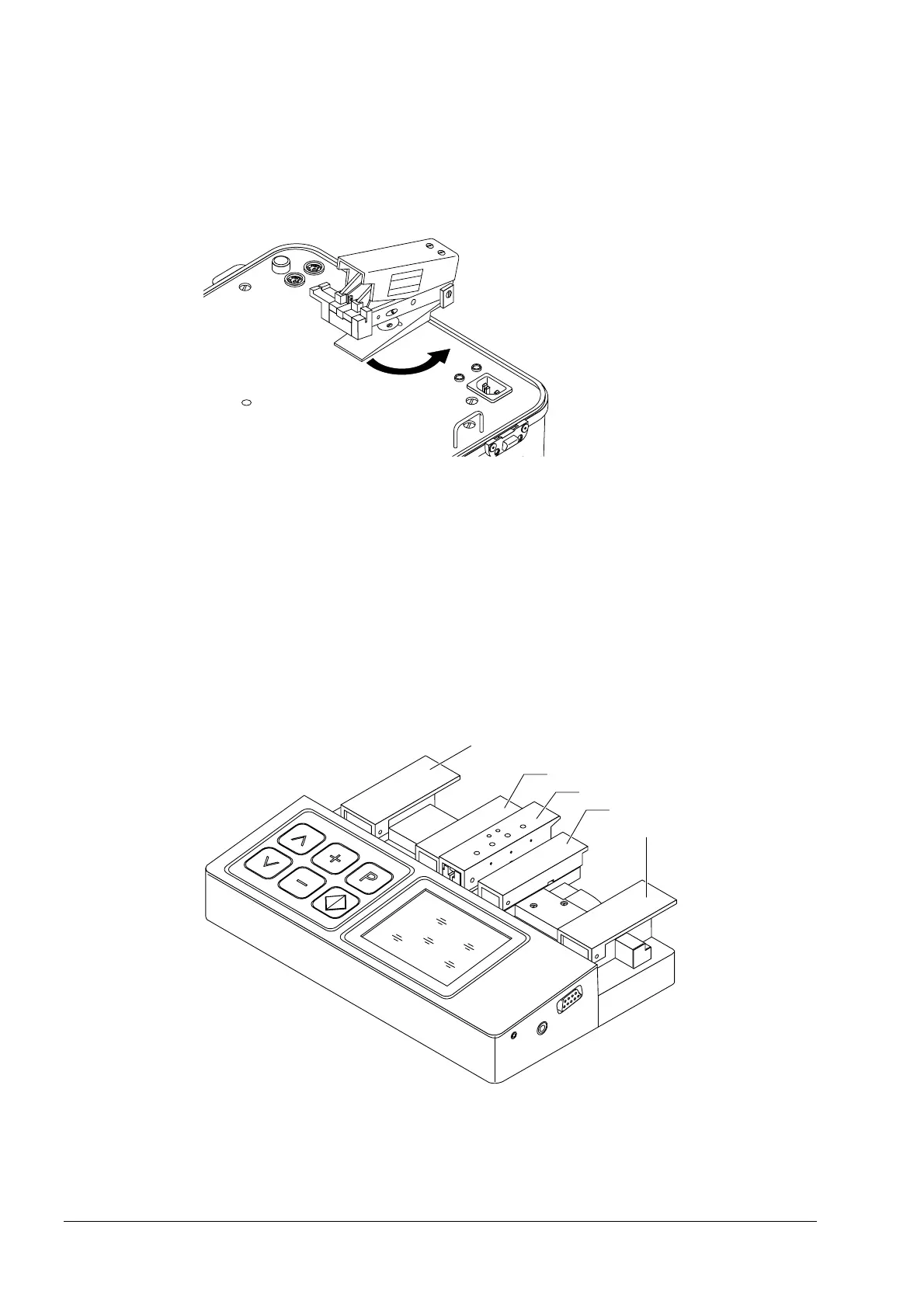

- Turn the cleaver through 90° in counter-clockwise direction.
- Press the sprung flap inwards and, in doing so, let the cleaver fold down.
Move Cleaver to Transport Position
Are the Flaps Closed?
Close all the flaps of the fusion unit in the correct sequence:
1. Flaps of the LID system
2. Holder flaps
3. Electrode flap
1
1
2
2
3
Close the Flaps of the Fusion Unit
