Operating Instructions 1-5 M90 Fusion Splicer
Issue 02/97 Getting to Know the M90 Fusion Splicer
The mechanical and electronic systems are housed in a sturdy aluminum case.
The splicer can be powered by connecting it to mains voltages of 95 V to 260 V and
50 Hz to 60 Hz, the integral AC-line adapter selecting the correct voltage/frequency
range automatically.
If the splicer cannot be powered from the mains, it can be operated by a battery instead
(accessories). If the lead-acid battery is fully charged, operation can be sustained for 3-
4 hours if no additional load (e.g. working light or heatshrink oven) is connected. When
the battery is run down it can be recharged by means of the integral charger even if the
fusion splicer is switched off. The splicer can still be used while charging is in progress.
The splicer can also be operated from an external 12-V power supply.
Power Supply
Overview
The terminal panel is located in the rear third of the splicer and features the sockets for
the power supply, charging indicator and mains switch ("I").

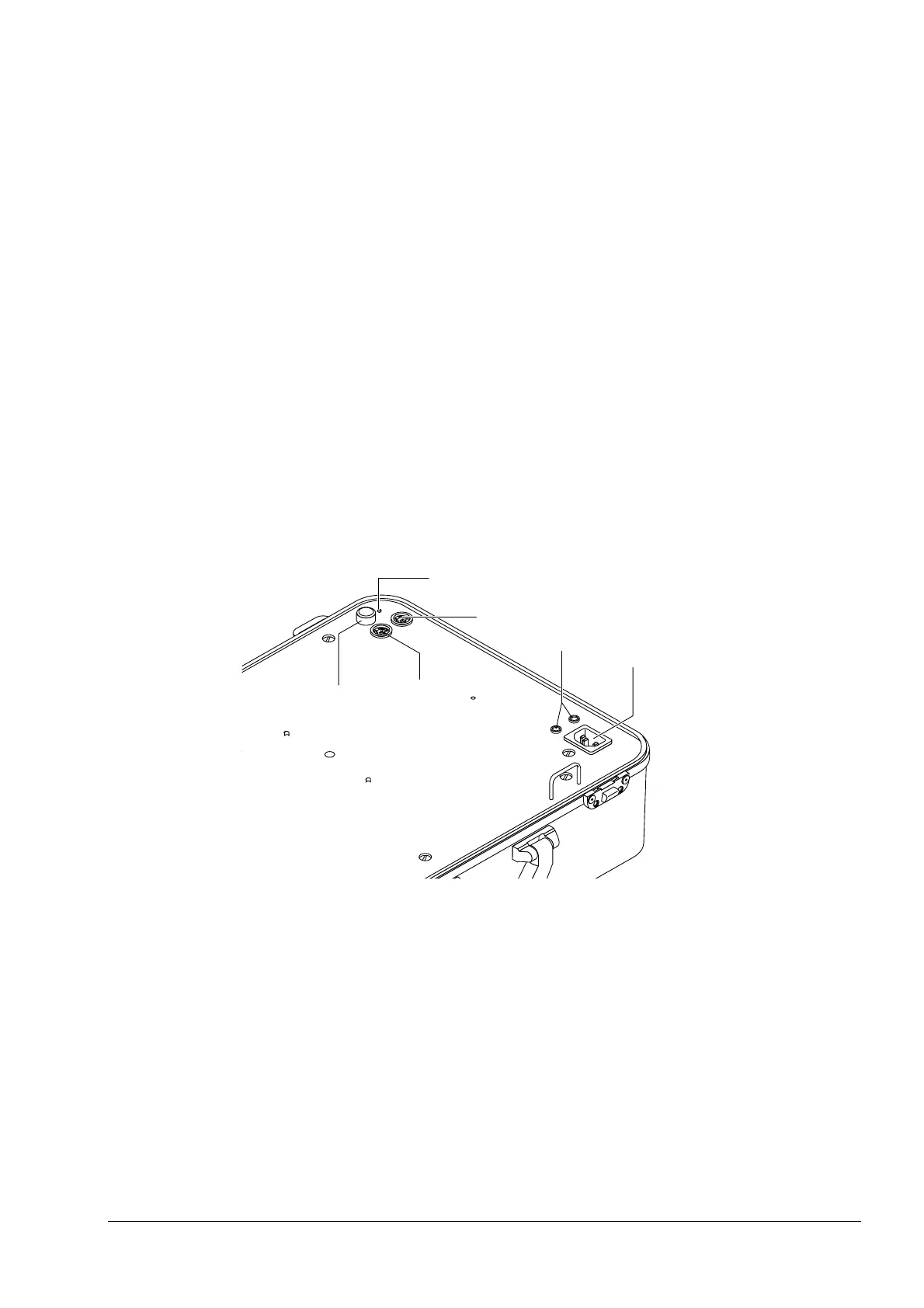

Overview of Power Supply
1 AC power connec-
tor
2 Connection for
working light
3 Connection for
heatshrink oven
4 Input, 12-VDC
(red +, black -)
5 Charging indicator
6 Mains switch
