Operating Instructions 2-7 M90 Fusion Splicer
Issue 02/97 Preparations
Removing the
fiber guide
- Remove the hexagon socket head wrench size 1.5 from the tool bag.
- Open the electrode flap and the holder flap.
- Turn the eccentric clamp through 180
°
(see figure) and remove the fiber guide.

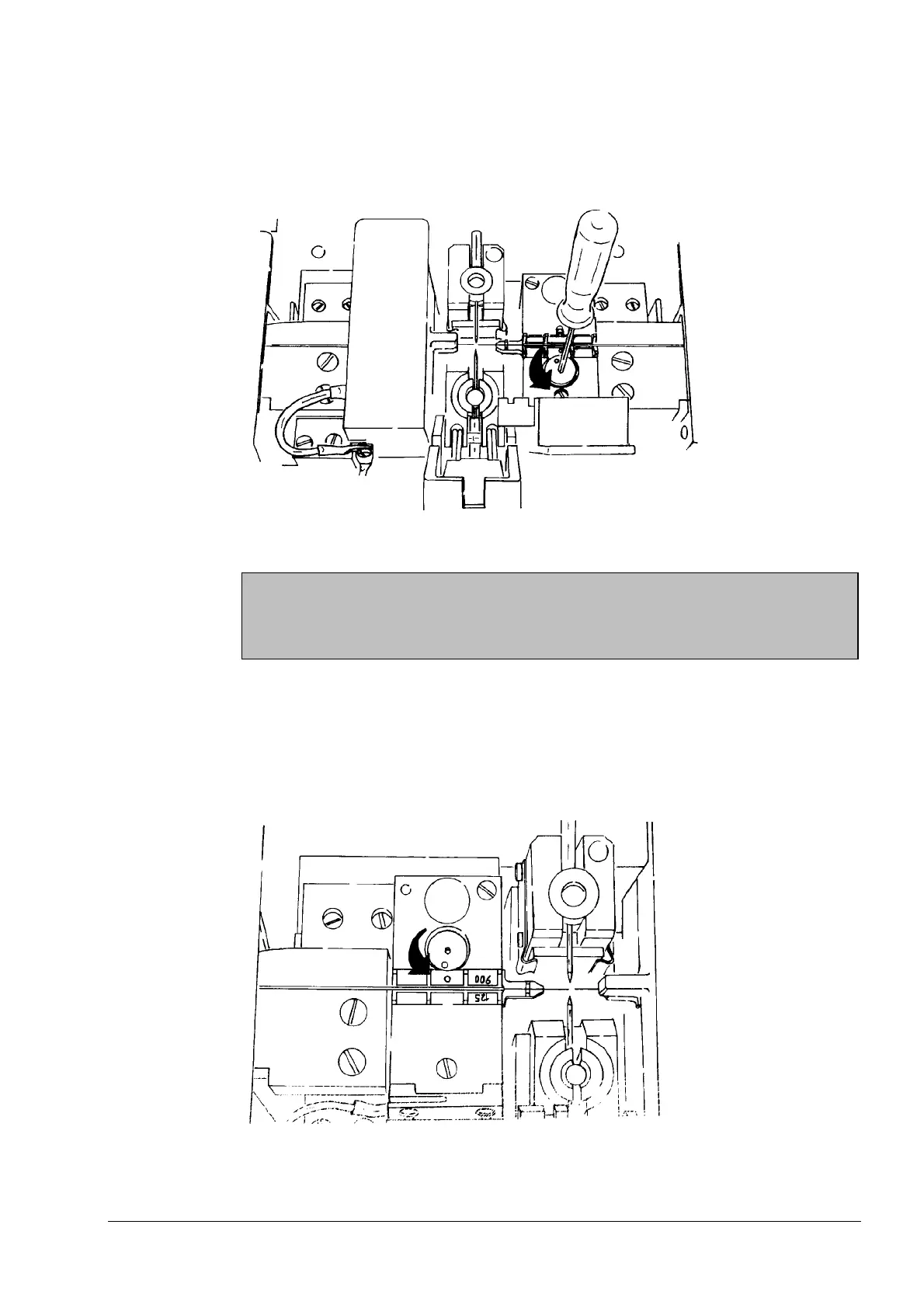

Opening the Eccentric Clamp
Note
The fiber guides must always be clean. Open only one holder flap at a time.
Close this as soon as the operation has been completed.
Installing the
fiber guide
- Ensure there is no dirt in the groove.
- Insert the new fiber guide in the groove.
- Turn the eccentric clamp through 180
°
until the bright dot on the eccentric clamp is
lined up with the mark on the fiber guide (see figure).
Fitting the New Fiber Guide
