05.05 Connections

Siemens AG 6RX1700-0AD76 6-61

SIMOREG DC Master Operating Instructions

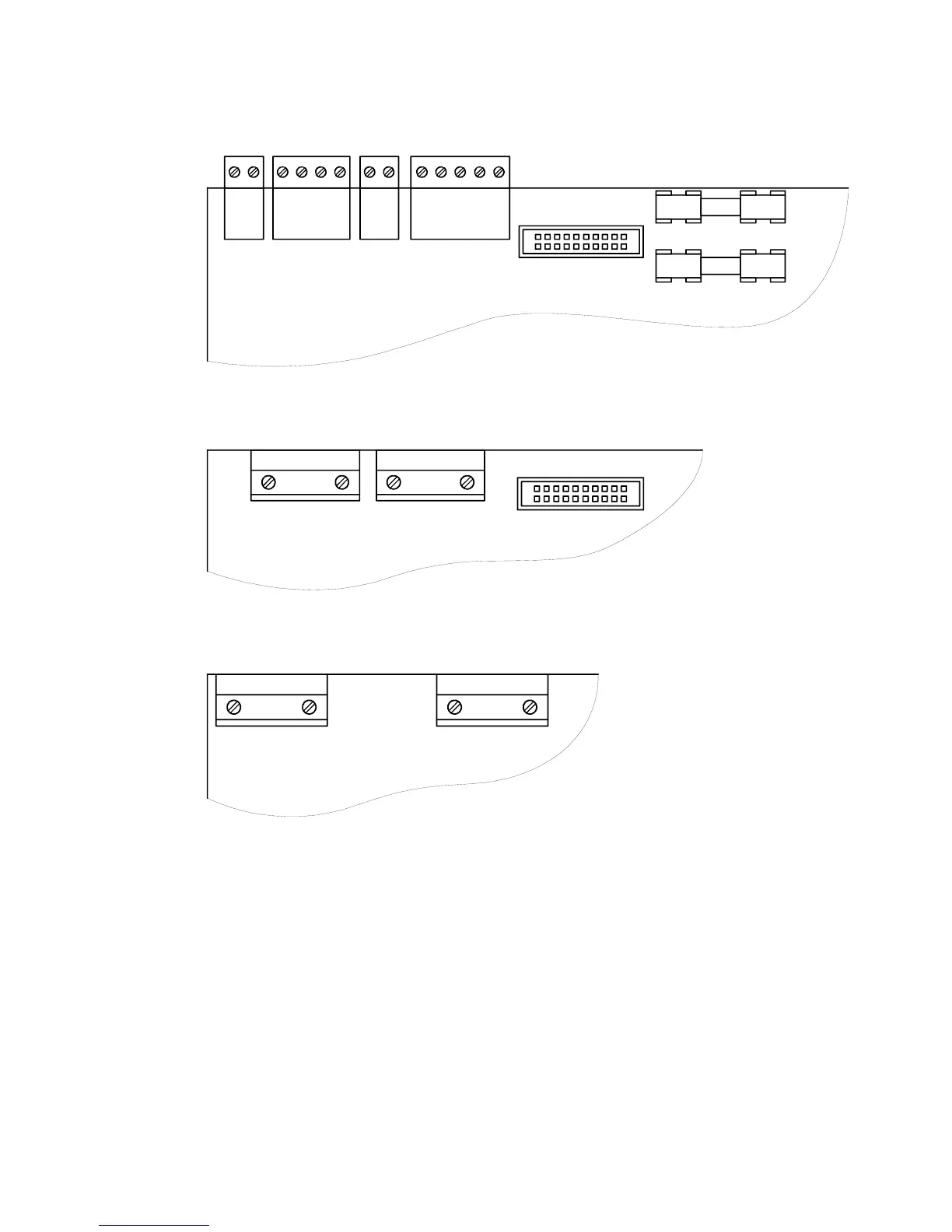

Module C98043-A7002 or C98043-A7003

103 104 105 106 107 108 109 110 5N1 5W1 5U1

X102

XT XS XR XP

Module C98043-A7010

X102

XF1 XF2

3U1 3W1 3C 3D

Module C98043-A7014

XF1 XF2

3U1 3W1 3C 3D
