Start-Up 05.05
7-10 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
4 Input of motor data
In the parameters below, the motor data must be entered as specified on the motor rating plate.
P100 . . . Rated armature current (in amps)
P101 . . . Rated armature voltage (in volts)
P102 . . . Rated field current (in amps)
P104 . . . Speed n
1
(in rpm) see also Section 9.16
P105 . . . Armature current I
1
(in amperes) see also Section 9.16
P106 . . . Speed n
2
(in rpm) see also Section 9.16
P107 . . . Armature current I
2
(in amperes) see also Section 9.16
P108 . . . Maximum operating speed n
3
(in rpm) see also Section 9.16
P109 . . . 1 = speed-dependent current limitation active see also Section 9.16
P114 . . . Thermal time constant of motor (in minutes) see also Section 9.14
(if necessary: activate fault signal F037 with P820!)
5 Actual speed sensing data
5.1 Operation with analog tacho
P083 = 1: The actual speed is supplied from the “Main actual value” channel (K0013)
(terminals XT.103, XT.104)
P741 Tacho voltage at maximum speed (– 270,00V to +270,00V)
5.2 Operation with pulse encoder
P083 = 2: The actual speed is supplied by the pulse encoder (K0040)
P140 Selecting a pulse encoder type (pulse encoder types see below)
0 No encoder/"Speed sensing with pulse encoder" function not selected
1 Pulse encoder type 1
2 Pulse encoder type 1a
3 Pulse encoder type 2
4 Pulse encoder type 3
1. Pulse encoder type
1

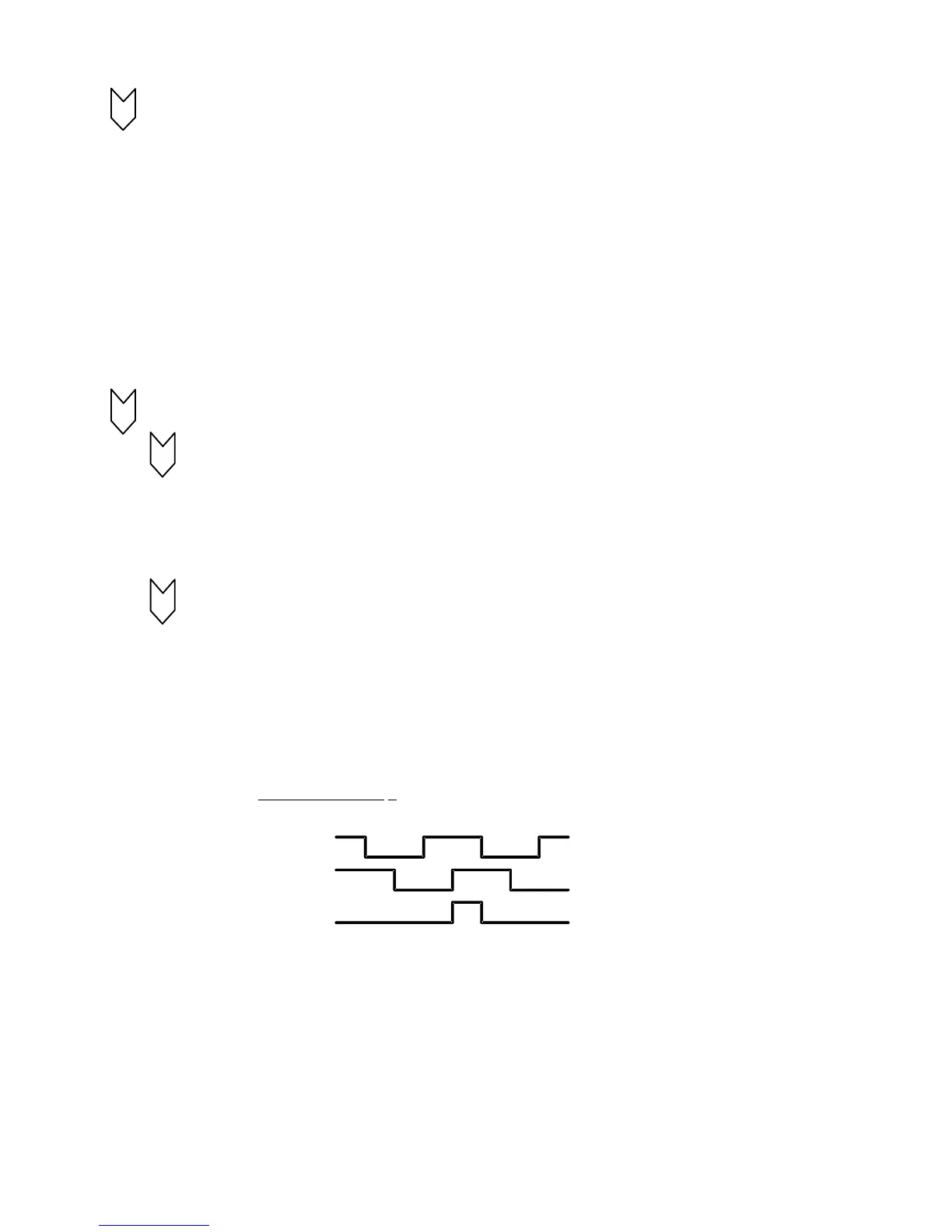

Encoder with two pulse tracks mutually displaced by 90° (with/without zero marker)
Track 1
X173 28, 29
Track 2
X173 30, 31
Zero marker
X173 32, 33
Heidenhain ROD
Teldix Rotaswitch Serie 26
