Siemens 6RA7086-6KS22

Function diagrams 05.05
8-40 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions

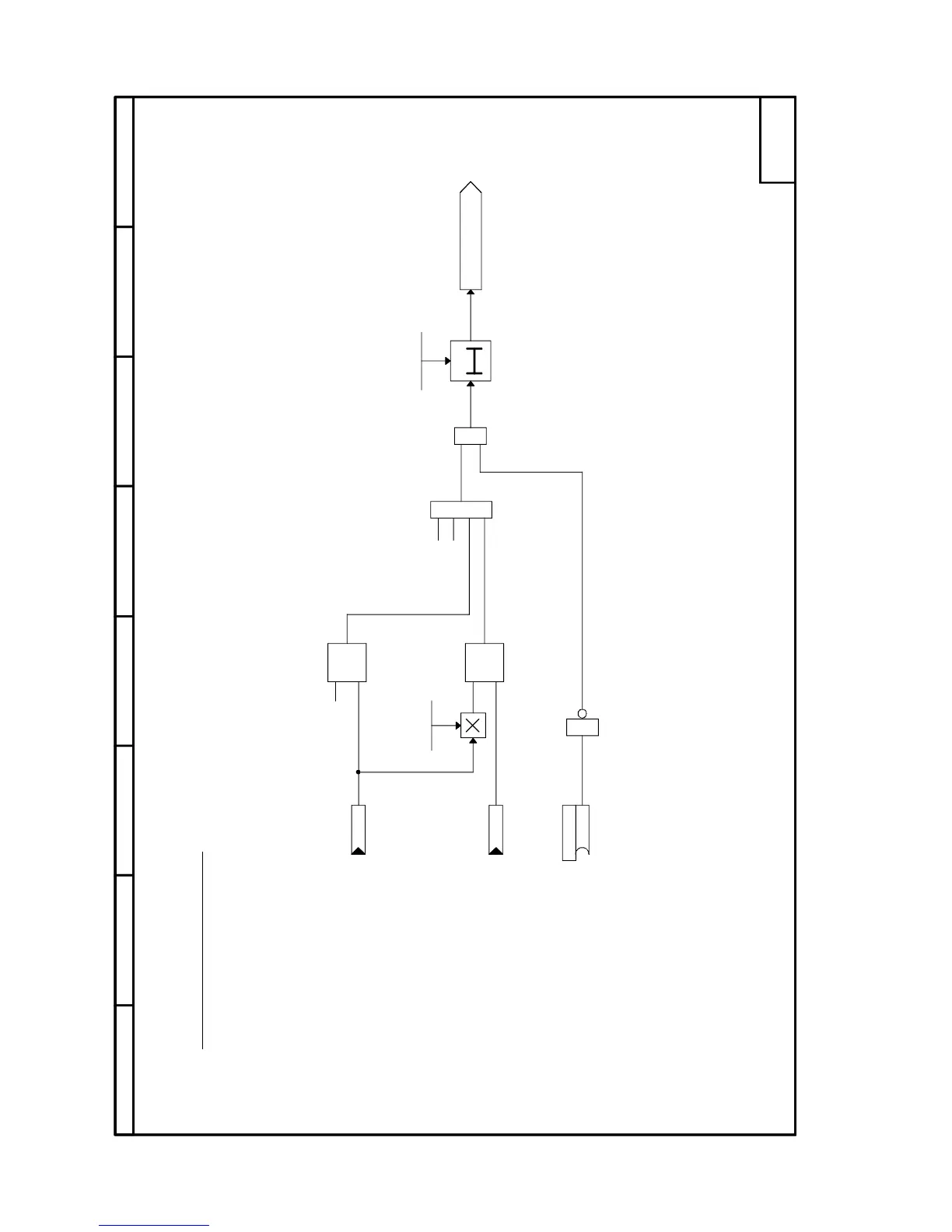

Sheet G167 Field current monitoring
8
7
564321
- G167 -
1
≥
&
T
0
B A
B>A
B A
B<A
1
[G166.3] [G166.3]
P265.B (1)
B
P396.F (50)
1...100%
P397.F (0,50)
0,02...60,00s
P082 > 0
P082 < 20
K0268 K0265
Fault F005
Threshold
Monitoring time
Selection of external field
current monitoring signal
Field current monitoring
2% of r073.002
Actual value at field
current controller input
Setpoint at field
current controller input
