Siemens 6RA7086-6KS22

05.05 Function diagrams
SIEMENS AG 6RX1700-0AD76 8-81
SIMOREG DC Master Operating Instructions

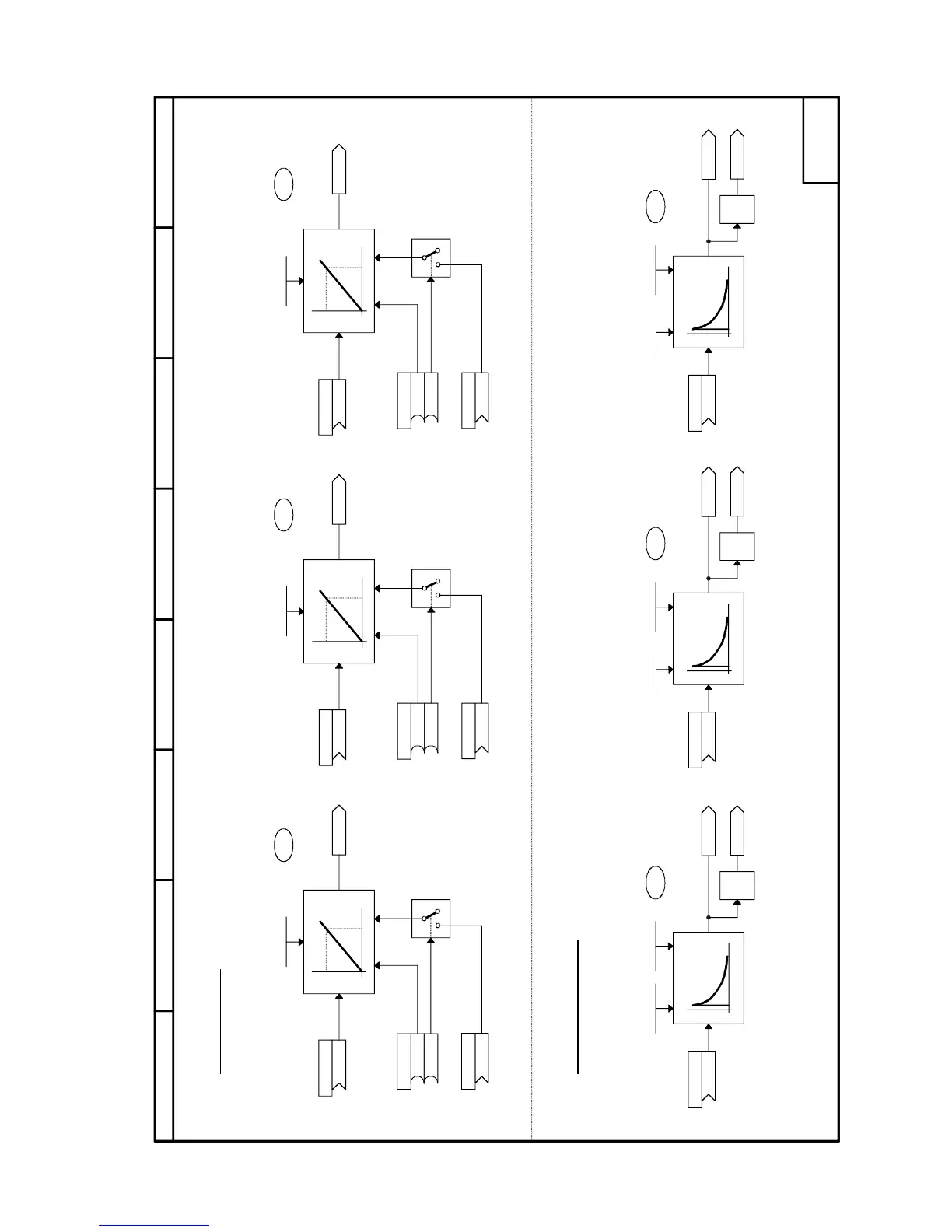

Sheet B155 Integrators, DT1 elements
87564321
x
t
y
y
x
Tn
1
0
y
y
t
.01 .02
- B155 -
100
x
t
y
y
x
Tn
1
0
.01 .02
101
x
t
y
y
x
Tn
1
0
.01 .02
102
U269 (10)
U270 (0)
B
U271 (0)
K
U268 (0)
K
K9222
B
-1
y
y
t
-1
y
y
t
-1
103 104 105
(0...1000ms) (0...1000ms)
U273 (0) U274 (0)
(0...1000ms) (0...1000ms)
U276 (0) U277 (0)
(0...1000ms) (0...1000ms)
U279 (0) U280 (0)
U272 (0)
K
U275 (0)
K
U278 (0)
K
(10...65000ms)
U261 (10)
U262 (0)
B
U263 (0)
K
U260 (0)
K
K9220
B
U265 (10)
U266 (0)
B
U267 (0)
K
U264 (0)
K
K9221
B
(10...65000ms) (10...65000ms)
K9223
K9224
K9225
K9226
K9227
K9228
s (transfer function: G(s) = Tv * ------------ ) 1 + s T1
Derivative
action
time (Tv)
Filter time (T1) Filter time (T1) Filter time (T1)
Set integrator
Setting value
Integral-action time (Tn)
3 integrators
Stop
integrator
Set integrator Setting value
Integral-action time (Tn)
Stop
integrator
Set integrator Setting value
Integral-action time (Tn)
Stop
integrator
3 DT1 elements
Derivative
action
time (Tv)
Derivative
action
time (Tv)
