Siemens 6RA7086-6KS22

05.05 Function diagrams
SIEMENS AG 6RX1700-0AD76 8-87
SIMOREG DC Master Operating Instructions

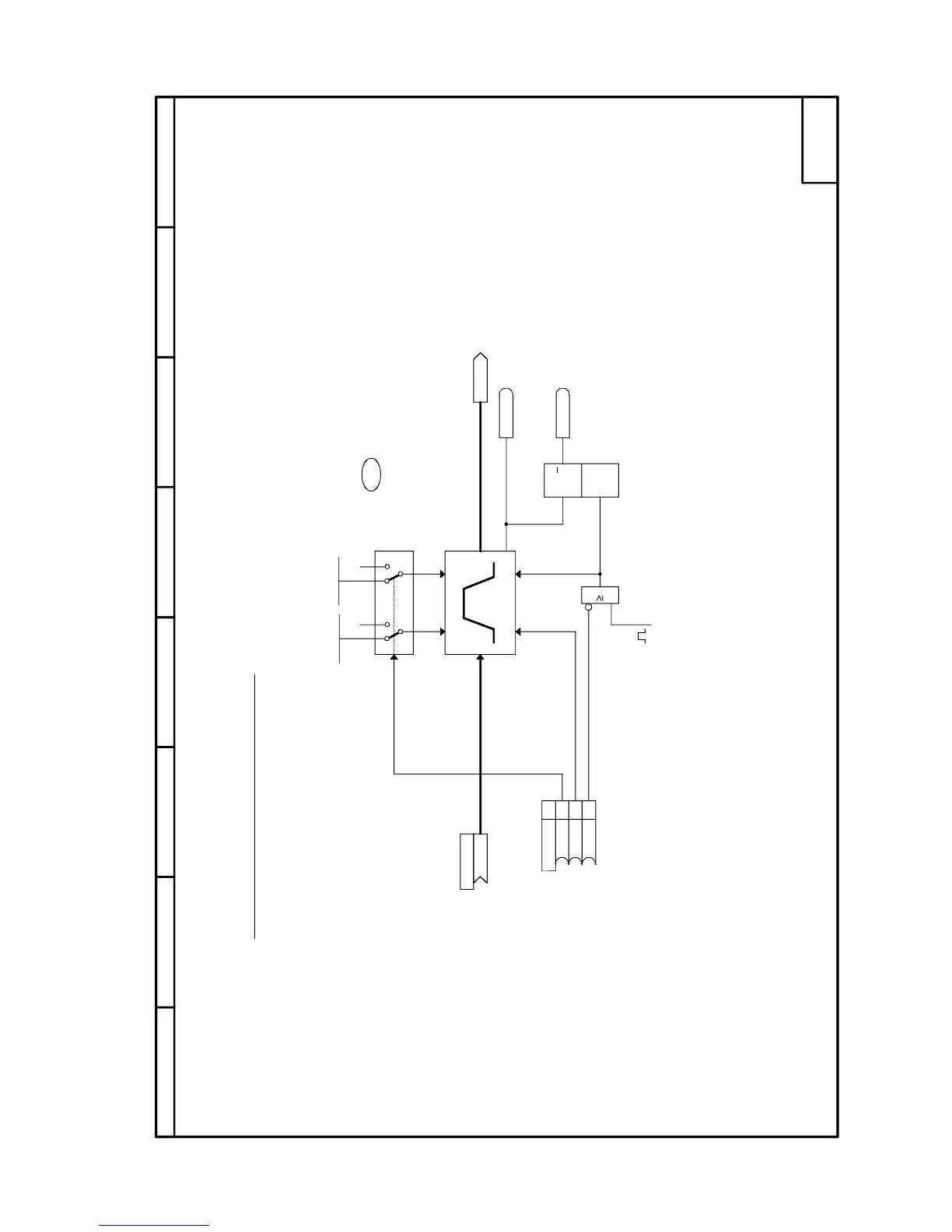

Sheet B165 Simple ramp-function generator
87564321
freeze y
y
y=0
x
POWER ON
1
10
1
0
0s 0s
TH TR
y=x
R
S
Q
<1>
.01 .02 .03
<2>
113
- B165 -
B
U301
B B
0 0 1
U300 (0)
K
K9236
B9190 B9191
U302 (0,00) U303 (0,00)
FS
Simple ramp-function generator
1 = Enable simple ramp-function generator 0 = Reset simple ramp-function generator
Stop simple ramp-function
generator
Bypass simple ramp-function
generator
0 = Ramp-function generator initial run
Priority: 1. S (SET) 2. R (RESET)
Ramp-up time Ramp-down time
<2> from voltage monitor for electronics power supply <1> When U301.01 = 9191, the ramp-function generator operates only once after it has been enabled (edge log. "0" to "1")
