Siemens 6RA7086-6KS22

05.05 Function diagrams
SIEMENS AG 6RX1700-0AD76 8-123
SIMOREG DC Master Operating Instructions

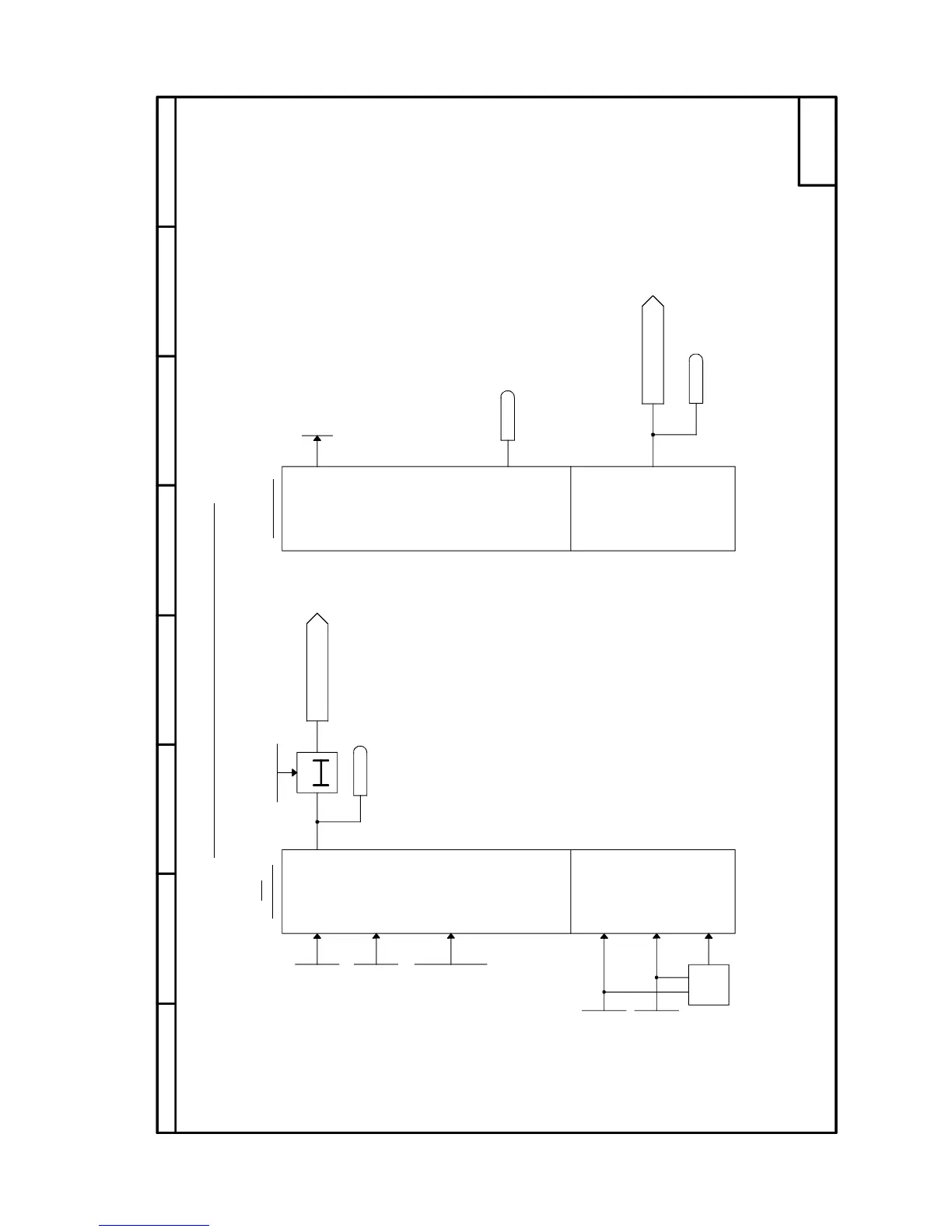

Sheet Z121 SIMOLINK board: Configuration, diagnosis
87564321
- Z121 -
U741.01 (0 ms)
0...6500ms
0T
f
<1>
<1>
B7030
U753 (0,0)
0,0...100,0 s
U740.01 (0)
0...200
U742.01 (3)
U745.01 (3)
1...8
U746.01 (1,20)
1,00...6,50ms
B7040
Time out
n748
B7050
Fault message trigger
1 = "Fault F015"
Fault delay
Telegram failure
Telegram monitoring
time
Monitoring is activated after the first valid telegram
SLB node
address
Transmit power
SLB
configuration
General
section
Dispatcher-
specific
section
Module
address = 0
SLB channel selection
SLB cycle time
SLB diagnosis
Dispatcher
specific
section
Module
address = 0
1 = 0...15m 2 = 15...25m 3 = 25...40m Cable length
SLB diagnosis
i001: No. of error-free synchronizing telegram i002: No. of CRC errors i003: No. of timeout errors i004: last accessible bus address i005: Address node transmitting the special "timeout" telegram i006:Implemented bus cycle time i007: Number of re-configurations i008: reserved ... i016:reserved
Starting alarm
Alarm message trigger
1 = "Alarm A015"
U746 + 3,18 µs 1 f: No. of addressed nodes = ( ---------------------- – 2) • -------- 6,36 µs U745
"SIMOLINK starting" alarm
6,36 µs = time for 1 telegram
SIMOLINK board: Configuration, diagnosis
