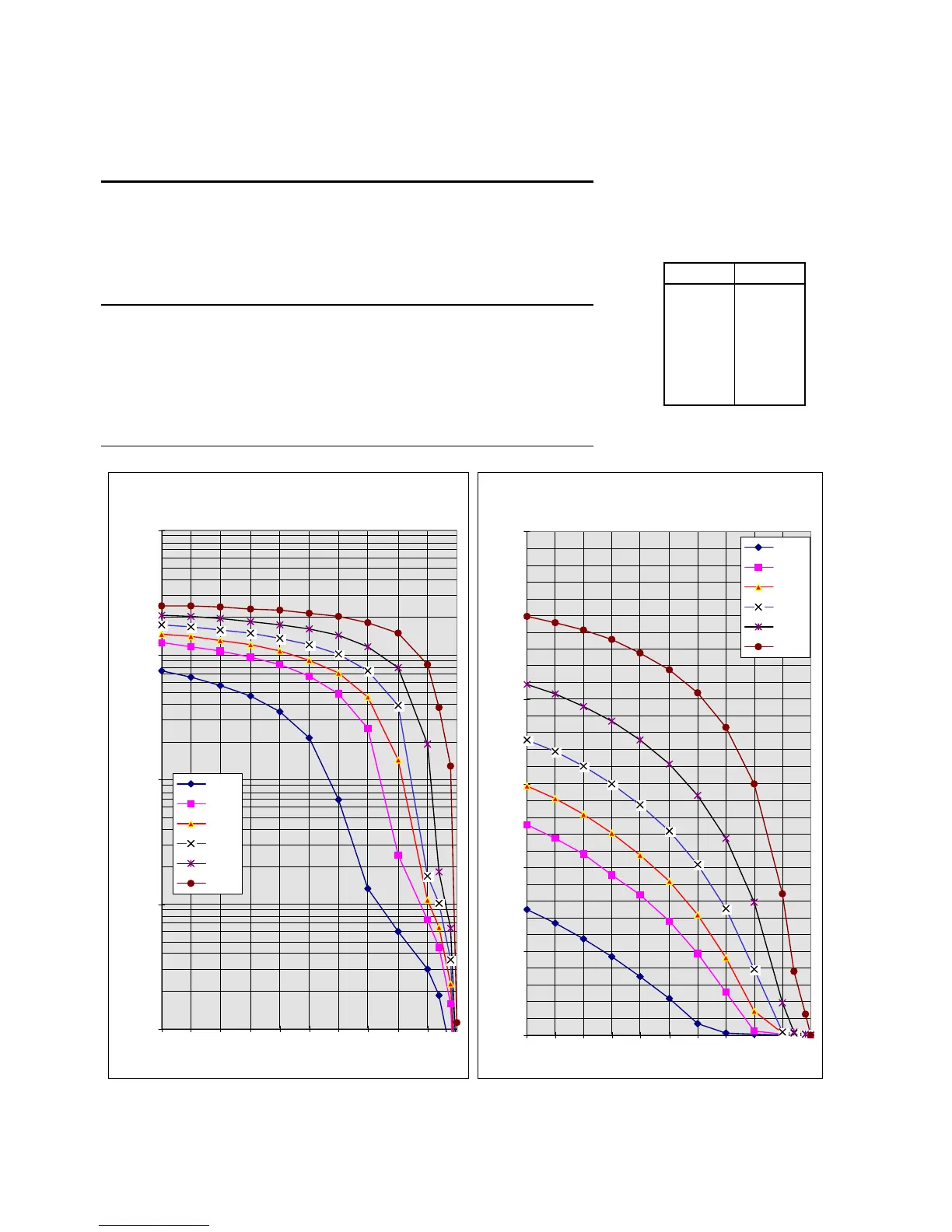

Function descriptions 05.05
9-44 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7031-6DV62. 6RA7031-6FV62 and 6RA7031-6GV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 74.560 125.660 148.680 176.040 209.100 249.760
10 66.512 117.485 140.799 168.832 203.128 245.972
20 57.377 107.974 131.548 160.259 195.896 241.303
30 46.984 95.363 120.584 149.925 187.042 235.487
40 35.141 83.679 107.433 137.311 175.983 227.952 X t
an
(s)
50 21.702 67.946 91.425 121.613 161.810 217.919 1.1 2160
60 6.944 48.910 71.581 101.600 143.079 203.951 1.2 1453
70 1.340 25.670 46.462 75.329 117.208 183.226 1.3 1079
80 0.603 2.501 14.468 39.467 79.328 149.404 1.4 836
90 0.304 0.749 1.080 1.686 19.379 84.405 1.5 662
94 0.184 0.454 0.655 1.022 1.811 38.066 1.8 344
98 0.065 0.159 0.230 0.358 0.635 12.764
100 0.005 0.012 0.017 0.027 0.047 0.113 t
ab
(s) = 3112
6RA7031-6DV62 125A/4Q 400V
6RA7031-6FV62 125A/4Q 460V
6RA7031-6GV62 125A/4Q 575V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7031-6DV62 125A/4Q 400V
6RA7031-6FV62 125A/4Q 460V
6RA7031-6GV62 125A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
