Siemens 6RA7086-6KS22

05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-45
SIMOREG DC Master Operating Instructions
6RA7075-6DS22. 6RA7075-6FS22 and 6RA7075-6GS22
6RA7075-6DV62. 6RA7075-6FV62 and 6RA7075-6GV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 1.080 21.600 50.720 91.660 149.600 235.560
10 0.902 14.843 43.009 83.652 142.448 231.608
20 0.733 8.313 34.150 74.216 133.825 226.741
30 0.585 4.428 24.068 63.100 123.347 220.628
40 0.456 2.419 12.873 50.001 110.490 212.789 X t
an
(s)
50 0.344 1.369 4.870 34.589 94.498 202.443 1.1 680.00
60 0.246 0.826 1.995 16.667 74.278 188.324 1.2 318.00
70 0.160 0.486 0.947 3.749 48.370 167.990 1.3 167.00
80 0.085 0.264 0.480 1.081 15.400 136.377 1.4 78.00
90 0.024 0.150 0.286 0.581 1.407 80.999 1.5 25.00
94 0.015 0.109 0.209 0.424 1.025 45.980 1.8 0.96
98 0.010 0.069 0.131 0.266 0.644 16.631
100 0.007 0.048 0.092 0.187 0.454 1.956 t
ab
(s) = 766
6RA7075-6DS22 210A/1Q 400V
6RA7075-6FS22 210A/1Q 460V
6RA7075-6GS22 210A/1Q 575V
6RA7075-6DV62 210A/4Q 400V
6RA7075-6FV62 210A/4Q 460V
6RA7075-6GV62 210A/4Q 575V
0,1
1,0
10,0
100,0
1000,0

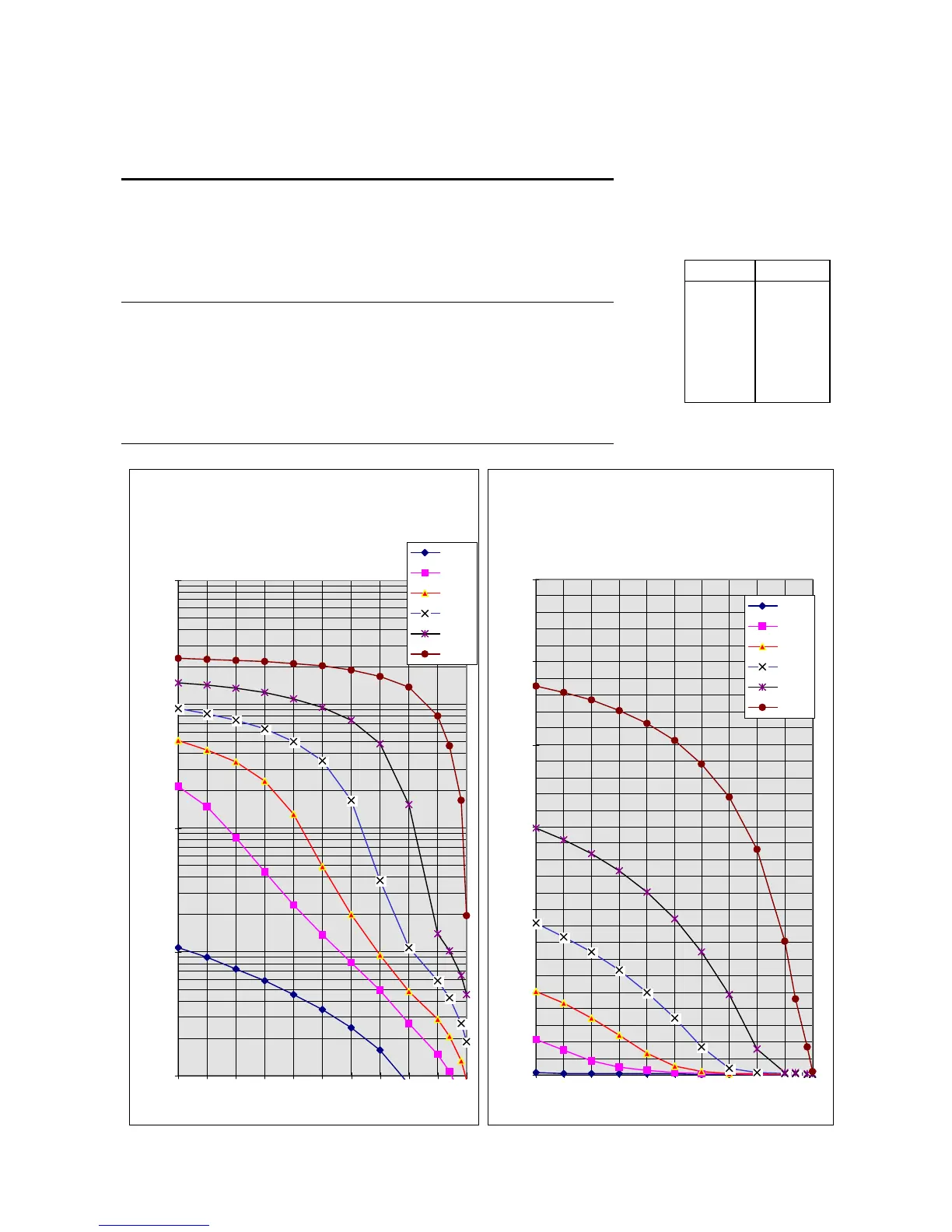

0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7075-6DS22 210A/1Q 400V
6RA7075-6FS22 210A/1Q 460V
6RA7075-6GS22 210A/1Q 575V
6RA7075-6DV62 210A/4Q 400V
6RA7075-6FV62 210A/4Q 460V
6RA7075-6GV62 210A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
