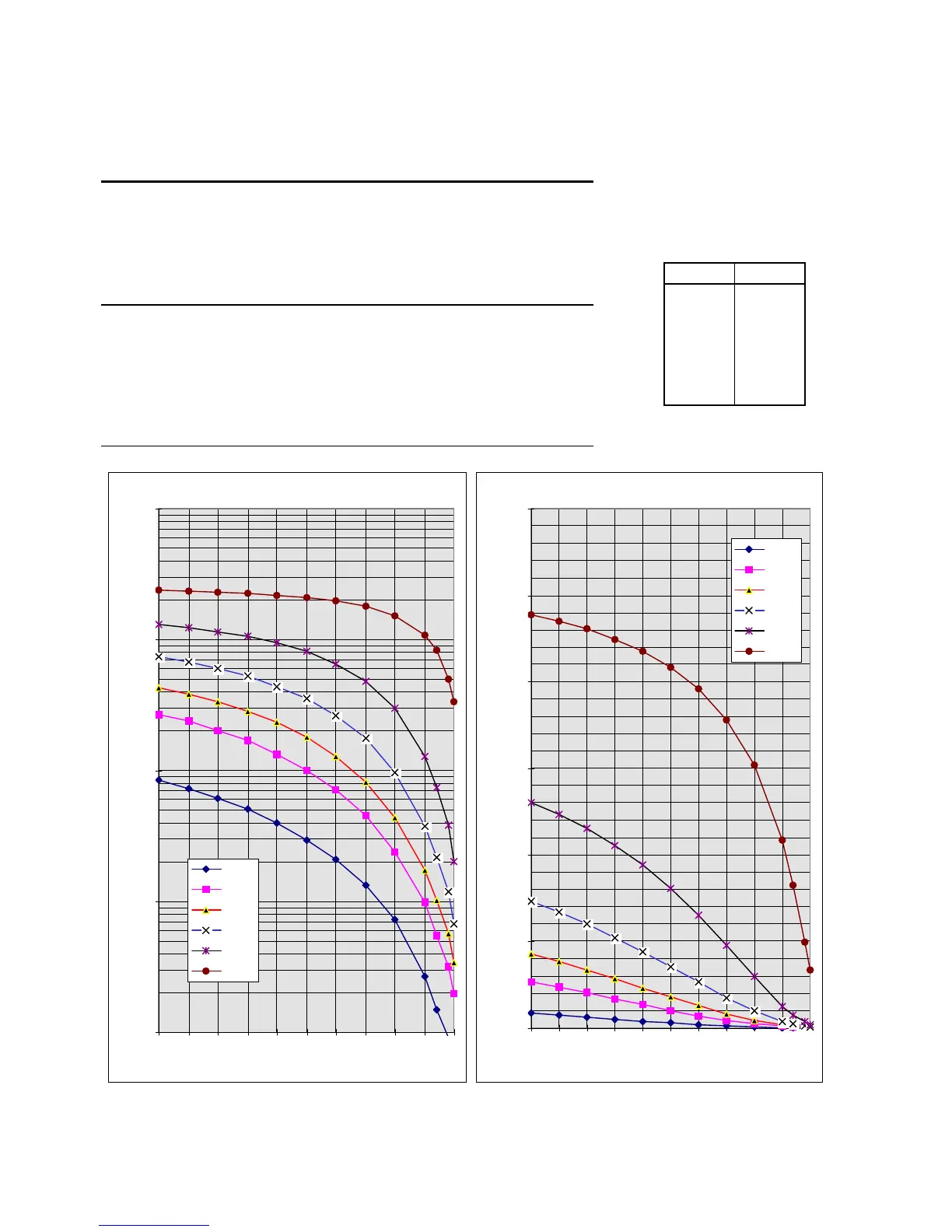

Function descriptions 05.05
9-60 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7093-4KV62 and 6RA7093-4LV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 8.440 26.800 42.880 73.260 130.180 238.580
10 7.298 23.608 38.359 66.907 123.241 234.844
20 6.151 20.256 33.532 59.860 115.099 230.280
30 5.028 16.808 28.460 52.162 105.514 224.637
40 3.954 13.363 23.204 43.906 94.199 217.465 X t
an
(s)
50 2.959 10.070 17.875 35.241 80.852 208.159 1.1 546.0
60 2.080 7.079 12.713 26.356 65.306 196.012 1.2 195.0
70 1.339 4.489 8.111 17.545 47.882 178.187 1.3 92.0
80 0.729 2.403 4.373 9.623 29.713 151.885 1.4 47.0
90 0.265 0.975 1.724 3.773 12.681 108.266 1.5 27.0
94 0.150 0.550 1.013 2.173 7.327 82.134 1.8 7.8
98 0.092 0.316 0.565 1.174 3.792 49.566
100 0.063 0.198 0.341 0.675 2.025 33.283 t
ab
(s) = 480
6RA7093-4KV62 1500A/4Q 690V
6RA7093-4LV62 1500A/4Q 830V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7093-4KV62 1500A/4Q 690V
6RA7093-4LV62 1500A/4Q 830V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
