Siemens 6RA7086-6KS22

05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-61
SIMOREG DC Master Operating Instructions
6RA7093-4DS22 and 6RA7093-4GS22
6RA7093-4DV62 and 6RA7093-4GV62

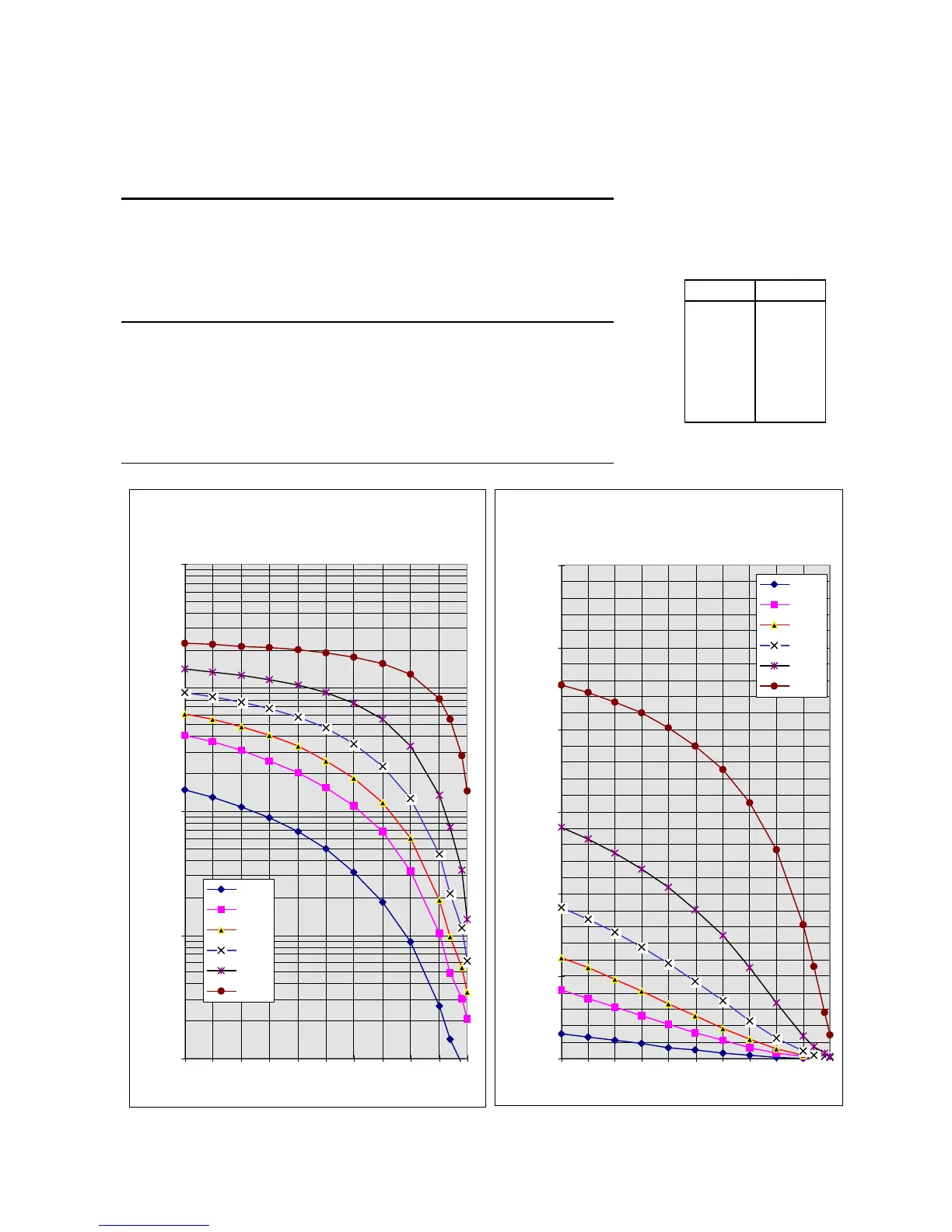

Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 15.040 41.340 61.280 91.820 140.780 227.360
10 12.954 36.316 55.103 84.796 133.569 222.650
20 10.869 31.083 48.348 76.885 125.211 216.969
30 8.805 25.773 41.070 67.986 115.478 210.017
40 6.830 20.551 33.418 57.998 104.075 201.343 X t
an
(s)
50 4.928 15.577 25.708 46.892 90.612 190.226 1.1 518.0
60 3.200 10.975 18.373 34.932 74.597 175.591 1.2 219.0
70 1.825 6.826 11.783 23.052 55.559 155.476 1.3 122.0
80 0.871 3.283 6.134 12.641 33.675 127.036 1.4 73.0
90 0.264 1.028 1.905 4.482 13.555 81.104 1.5 45.0
94 0.144 0.496 0.964 2.176 7.393 55.811 1.8 14.5
98 0.091 0.304 0.550 1.133 3.350 28.291
100 0.065 0.208 0.342 0.612 1.328 14.530 t
ab
(s) = 548
6RA7093-4DS22 1600A/1Q 400V
6RA7093-4GS22 1600A/1Q 575V
6RA7093-4DV62 1600A/4Q 400V
6RA7093-4GV62 1600A/4Q 575V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7093-4DS22 1600A/1Q 400V
6RA7093-4GS22 1600A/1Q 575V
6RA7093-4DV62 1600A/4Q 400V
6RA7093-4GV62 1600A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
