Function descriptions 05.05
9-62 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7095-4LS22 and 6RA7095-4LV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 27.940 59.320 77.240 103.320 141.420 200.360
10 24.487 53.864 71.061 96.528 134.447 194.568
20 20.784 47.829 64.114 88.735 126.266 187.592
30 16.870 41.224 56.347 79.809 116.633 179.035
40 12.774 34.075 47.728 69.588 105.208 168.391 X t
an
(s)
50 8.585 26.448 38.274 57.927 91.562 154.899 1.1 513.0
60 4.759 18.459 28.103 44.762 75.176 137.352 1.2 259.0
70 2.224 10.297 17.464 30.275 55.529 113.823 1.3 160.0
80 0.866 3.403 6.908 15.091 32.654 81.138 1.4 108.0
90 0.248 0.644 1.152 2.475 8.588 35.600 1.5 76.0
94 0.151 0.383 0.561 0.901 2.175 14.997 1.8 30.8
98 0.055 0.139 0.203 0.326 0.772 5.118
100 0.006 0.016 0.024 0.038 0.070 0.179 t
ab
(s) = 1056
6RA7095-4LS22 1900A/1Q 830V
6RA7095-4LV62 1900A/4Q 830V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100

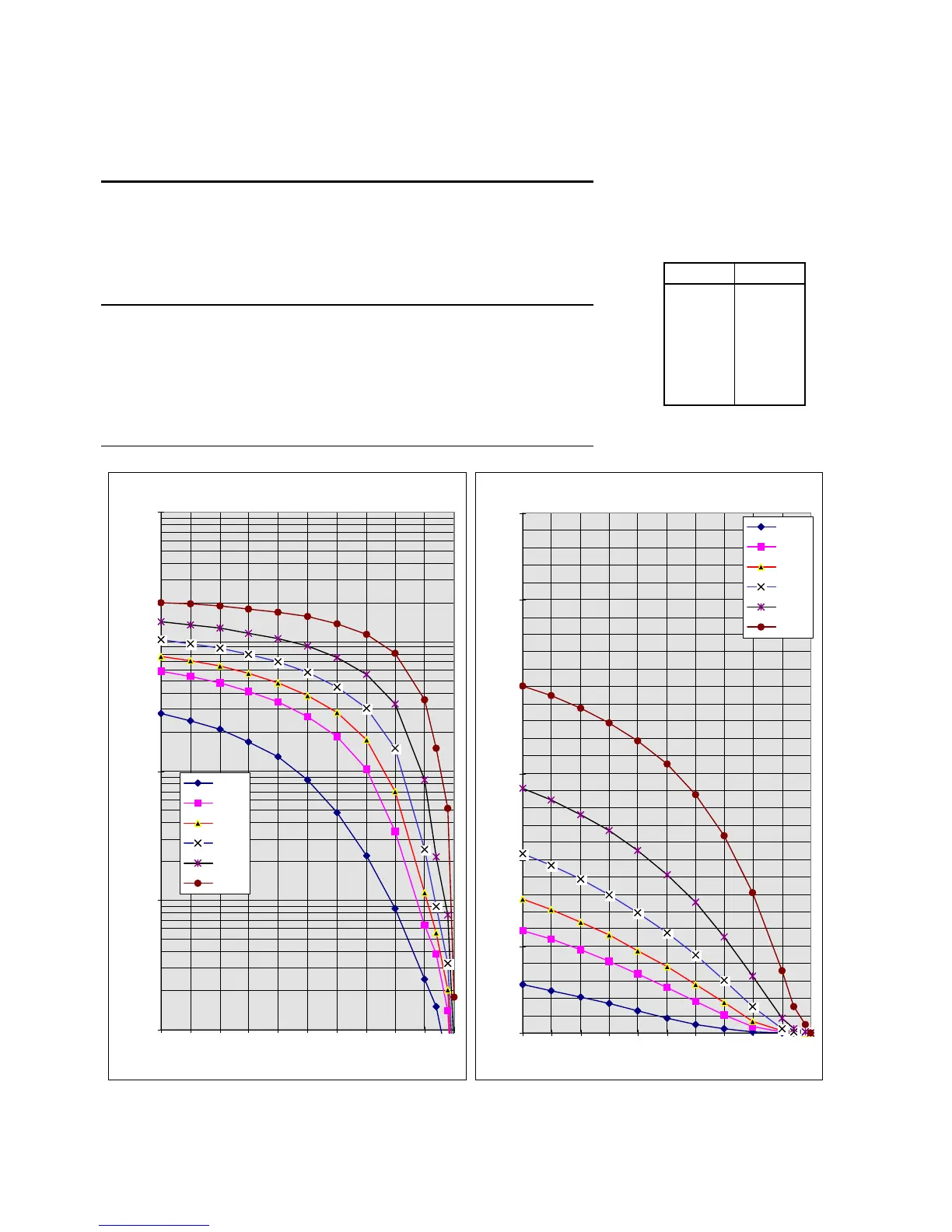

Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7095-4LS22 1900A/1Q 830V
6RA7095-4LV62 1900A/4Q 830V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
