Function descriptions 05.05
9-64 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7095-4KS22
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 26.880 59.700 79.780 108.360 151.120 220.200
10 23.649 54.174 73.569 101.610 144.367 215.318
20 20.327 48.089 66.581 93.882 136.463 209.406
30 16.978 41.460 58.758 85.031 127.152 202.144
40 13.665 34.367 50.050 74.872 116.097 193.067 X t
an
(s)
50 10.445 27.004 40.484 63.200 102.850 181.458 1.1 479.7
60 7.380 19.715 30.318 49.860 86.799 166.159 1.2 248.5
70 4.552 12.906 20.226 35.021 67.180 145.210 1.3 155.7
80 2.097 6.899 11.149 20.032 43.331 114.998 1.4 104.8
90 0.496 2.090 3.812 7.485 17.833 68.545 1.5 73.4
94 0.243 0.828 1.607 3.608 9.406 43.196 1.8 28.7
98 0.135 0.427 0.770 1.602 3.935 18.871
100 0.081 0.227 0.351 0.599 1.200 6.709 t
ab
(s) = 663

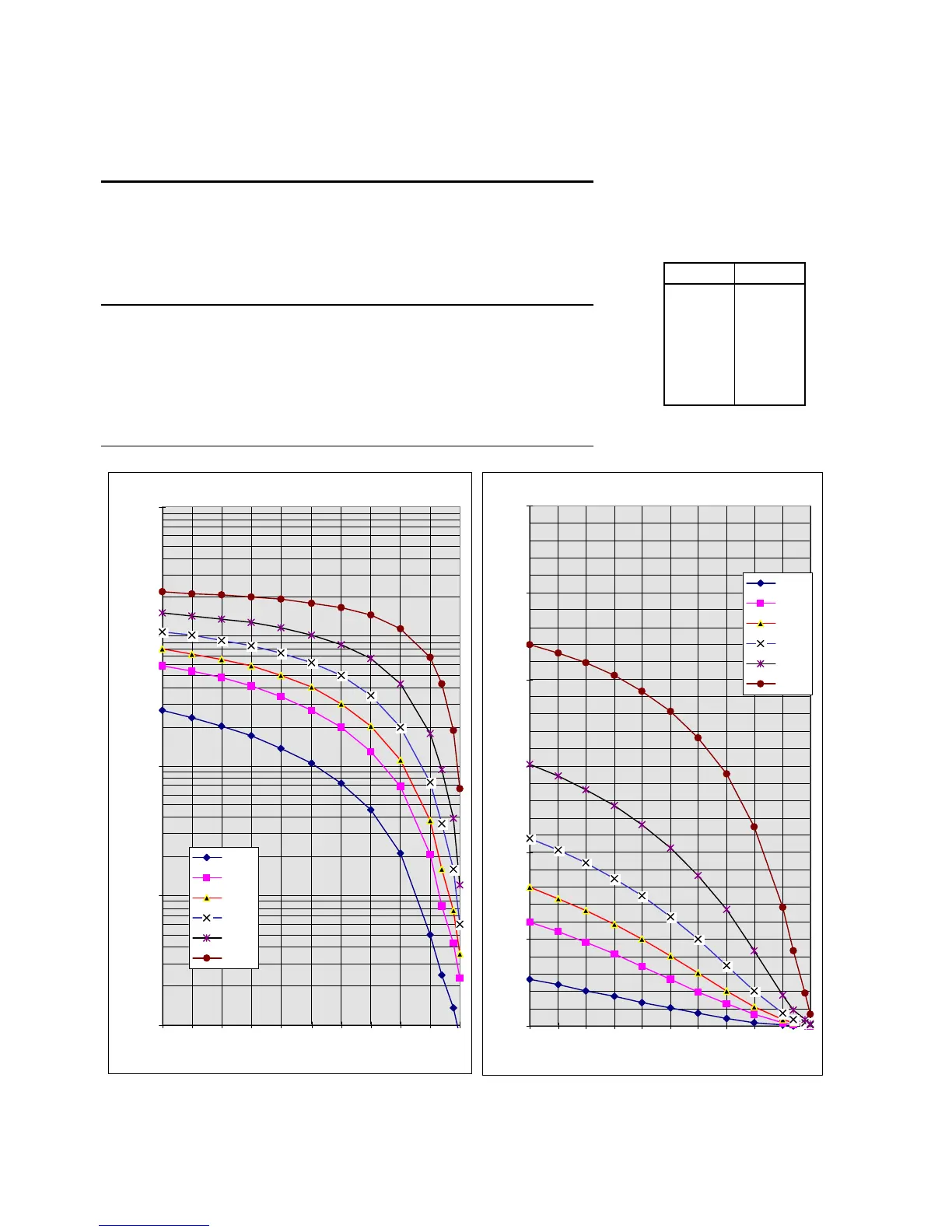

6RA7095-4KS22 2000A/1Q 690V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7095-4KS22 2000A/1Q 690V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
