05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-65
SIMOREG DC Master Operating Instructions
6RA7095-4GS22 and 6RA7095-4GV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 39.720 80.060 103.680 136.840 185.580 262.160
10 35.381 73.782 96.869 129.838 179.331 259.402
20 30.789 66.849 89.218 121.817 171.987 256.043
30 25.968 59.224 80.620 112.580 163.277 251.935
40 20.951 50.876 70.958 101.897 152.798 246.641 X t
an
(s)
50 15.779 41.819 60.123 89.469 140.037 241.189 1.1 1247.5
60 10.524 32.135 48.069 74.951 124.224 230.257 1.2 421.2
70 5.568 22.016 34.904 58.026 104.256 216.666 1.3 241.9
80 2.295 11.757 21.027 38.670 78.552 195.547 1.4 159.2
90 0.753 3.171 7.298 17.853 45.497 158.419 1.5 111.9
94 0.411 1.542 3.225 9.642 30.440 134.458 1.8 46.6
98 0.280 0.883 1.640 4.265 15.415 96.988
100 0.214 0.553 0.848 1.576 7.902 78.254 t
ab
(s) = 1064
6RA7095-4GS22 2000A/1Q 575V
6RA7095-4GV62 2000A/4Q 575V
0,1
1,0
10,0
100,0
1000,0

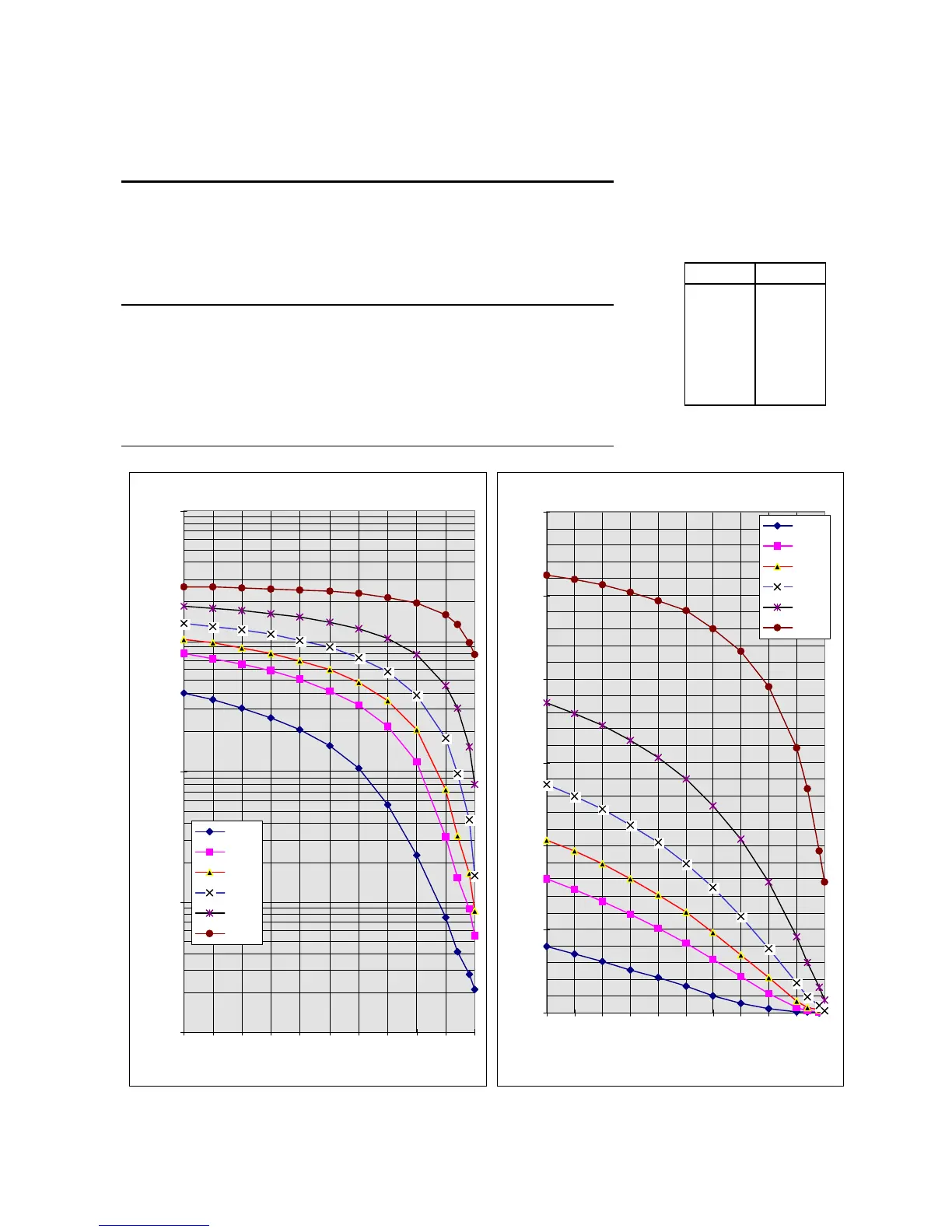

0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7095-4GS22 2000A/1Q 575V
6RA7095-4GV62 2000A/4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
