Function descriptions 05.05
9-68 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
6RA7098-4DS22 and 6RA7098-4DV62
Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 21.198 45.618 61.299 84.680 120.895 181.596
10 18.556 41.108 55.887 78.379 114.060 175.411
20 15.785 36.244 49.949 71.291 106.160 168.033
30 12.920 31.042 43.483 63.346 96.995 159.155
40 10.016 25.536 36.512 54.496 86.324 148.311 X t
an
(s)
50 7.153 19.790 29.086 44.742 73.884 134.832 1.1 282.051
60 4.482 13.934 21.314 34.169 59.438 117.710 1.2 160.486
70 2.346 8.250 13.445 22.996 42.967 95.388 1.3 103.230
80 0.992 3.377 6.107 11.792 24.979 65.716 1.4 70.241
90 0.250 0.750 1.279 2.623 7.396 28.003 1.5 49.850
94 0.093 0.274 0.454 0.877 2.321 12.350 1.8 21.276
98 0.014 0.036 0.060 0.112 0.271 1.276
100 0.001 0.002 0.003 0.004 0.007 0.023 t
ab
(s) = 464.709
6RA7098-4DS22 3000A/ 1Q 400V
6RA7098-4DV62 3000A/ 4Q 400V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100

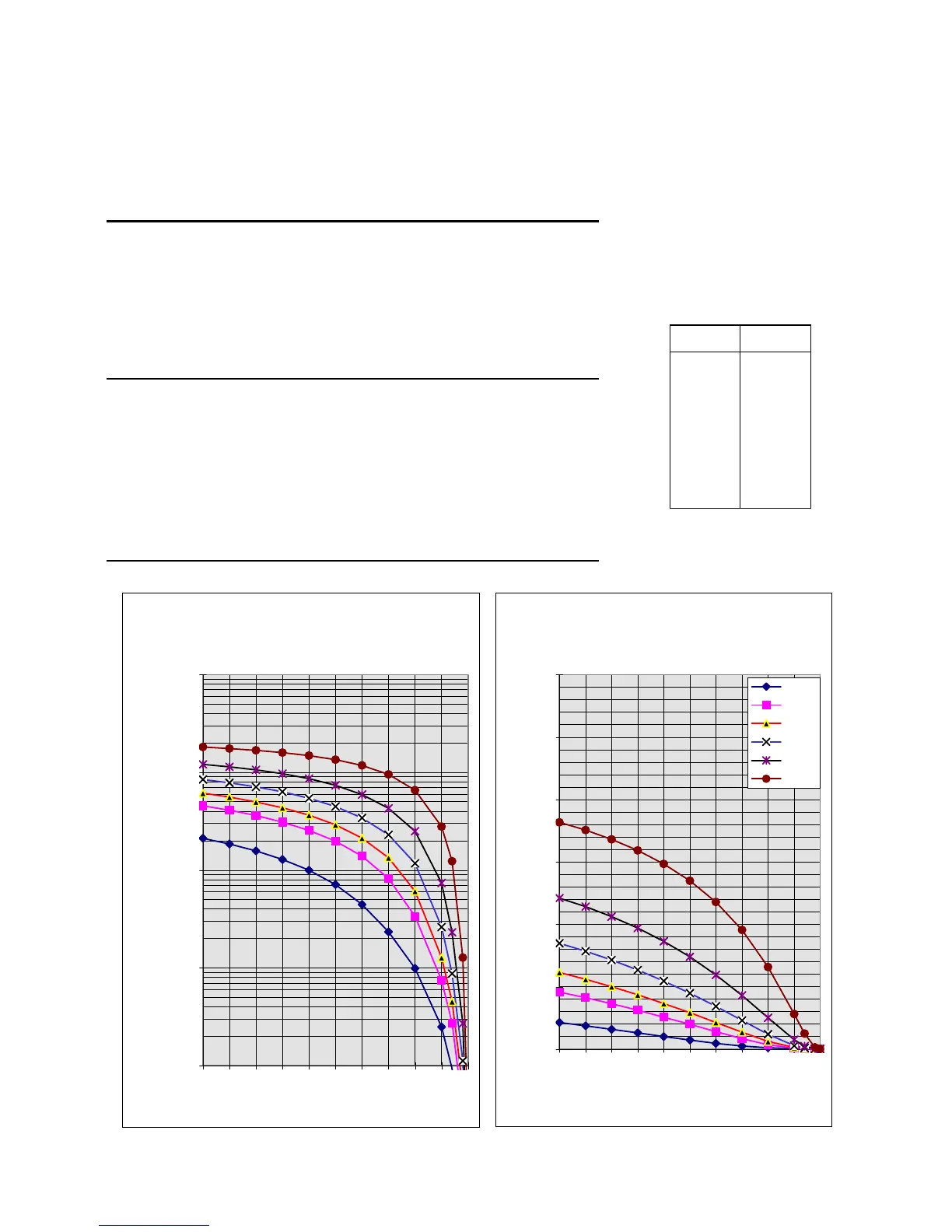

Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
6RA7098-4DS22 3000A/ 1Q 400V
6RA7098-4DV62 3000A/ 4Q 400V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
