05.05 Function descriptions
SIEMENS AG 6RX1700-0AD76 9-67
SIMOREG DC Master Operating Instructions
6RA7096-4GS22 and 6RA7096-4GV62

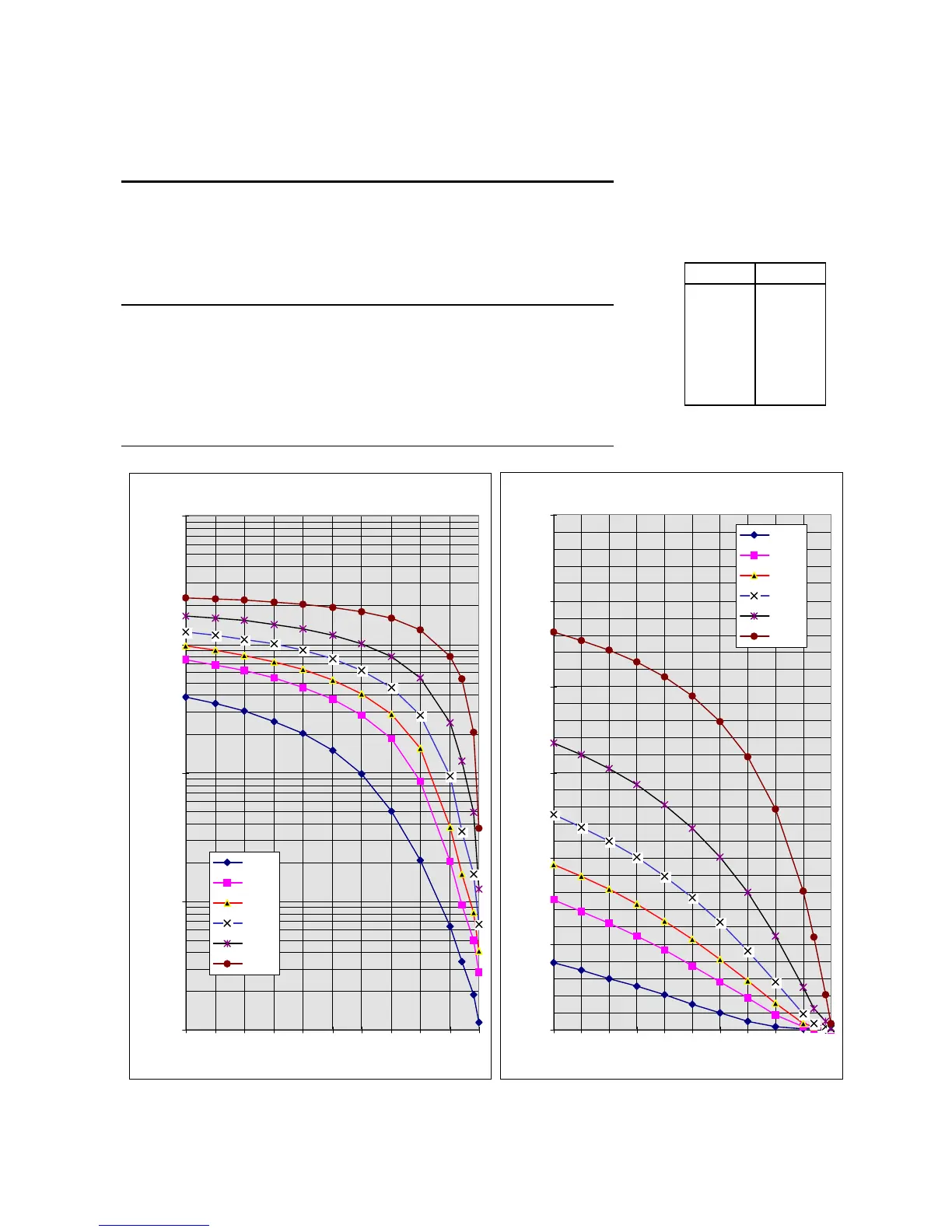

Tp (s) Tp (s) Tp (s) Tp (s) Tp (s) Tp (s)
Ig (%) X=1.8 X=1.5 X=1.4 X=1.3 X=1.2 X=1.1
0 39.000 75.480 96.440 125.460 167.360 231.500
10 34.653 69.163 89.521 118.189 160.398 226.803
20 30.048 62.221 81.784 109.887 152.267 221.147
30 25.226 54.625 73.140 100.396 142.699 214.187
40 20.218 46.366 63.494 89.496 131.303 205.444 X t
an
(s)
50 15.067 37.482 52.786 76.940 117.591 194.231 1.1 753
60 9.838 28.083 41.038 62.485 100.872 179.350 1.2 340
70 5.003 18.370 28.453 46.016 80.237 158.741 1.3 209
80 2.073 8.650 15.482 27.901 54.722 128.525 1.4 142
90 0.636 2.032 3.781 9.411 24.713 80.823 1.5 102
94 0.341 0.930 1.630 3.521 12.433 54.030 1.8 45
98 0.190 0.496 0.818 1.616 4.978 20.492
100 0.114 0.279 0.412 0.663 1.251 3.722 t
ab
(s) = 985
6RA7096-4GS22 2200A/ 1Q 575V
6RA7096-4GV62 2200A/ 4Q 575V
0,1
1,0
10,0
100,0
1000,0
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
6RA7096-4GS22 2200A/ 1Q 575V
6RA7096-4GV62 2200A/ 4Q 575V
0
50
100
150
200
250
300
0 102030405060708090100
Base-load current as % of rated DC current
Overload period in s with cycle time of 300s
X=1,8
X=1,5
X=1,4
X=1,3
X=1,2
X=1,1
