Parameter list 05.05
11-8 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
PNU
Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)
r010
(G110)
Display of status of binary inputs

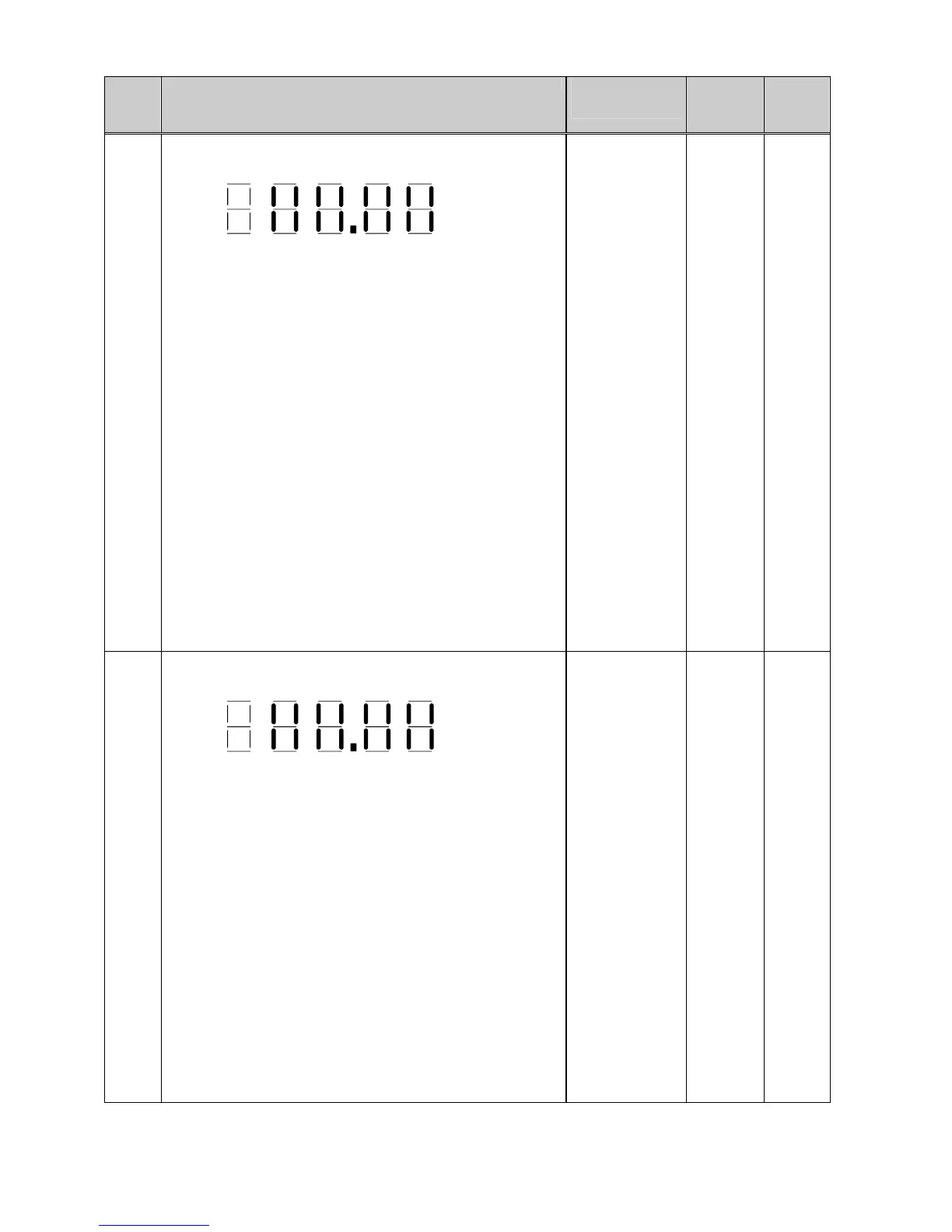

Representation on operator panel (PMU):
3210
4
5
6
7
89101112131415
Segment ON: Corresponding terminal is activated
(HIGH level is applied)
Segment OFF: Corresponding terminal is not activated
(LOW level is applied)
Segment or bit
0 ........ Terminal 36
1 ........ Terminal 37 (switch-on)
2 ........ Terminal 38 (operating enable)
3 ........ Terminal 39
4 ........ Terminal 40
5 ........ Terminal 41
6 ........ Terminal 42
7 ........ Terminal 43
8 ........ Terminal 211
9 ........ Terminal 212
10 ........ Terminal 213
11 ........ Terminal 214
12 ........ Safety shutdown (E-Stop is applied) 1)
13 ........ (not used)
14 ........ (not used)
15 ........ (not used)
1) The safety shutdown command is applied (segment dark) if
- terminal XS-105 is open (switch operation, see also Section 9)
or
- terminal XS-107 (Stop pushbutton) is opened briefly and terminal XS-
108 (Reset pushbutton) is not yet activated (pushbutton operation,
see also Section 9)
Ind: None
Type: V2
P052 = 3
r011
(G112)
(G117)
Display of status of binary outputs
Representation on operator panel (PMU):
3210
4
5
6
7
89101112131415
Segment ON: Corresponding terminal is activated
(HIGH level is applied) or overloaded or short-circuited
Segment OFF: Corresponding terminal is not activated
(LOW level is applied) or not overloaded or not short-
circuited
Display of status of binary output terminals:
Segment or bit
0 ..... Terminal 46
1 ..... Terminal 48
2 ..... Terminal 50
3 ..... Terminal 52
7 ..... Terminal 109/110 (relay contact for line contactor)
Display of overloading of binary outputs:
Segment or bit
8 ..... Terminal 46
9 ..... Terminal 48
10 .... Terminal 50
11 .... Terminal 52
12 .... Terminal 26 (15V output)
13 .... Terminal 34, 44 and/or 210 (24V output)
Ind: None
Type: V2
P052 = 3
