Siemens 6RA7086-6KS22

05.05 Parameter list
SIEMENS AG 6RX1700-0AD76 11-71
SIMOREG DC Master Operating Instructions
PNU Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)

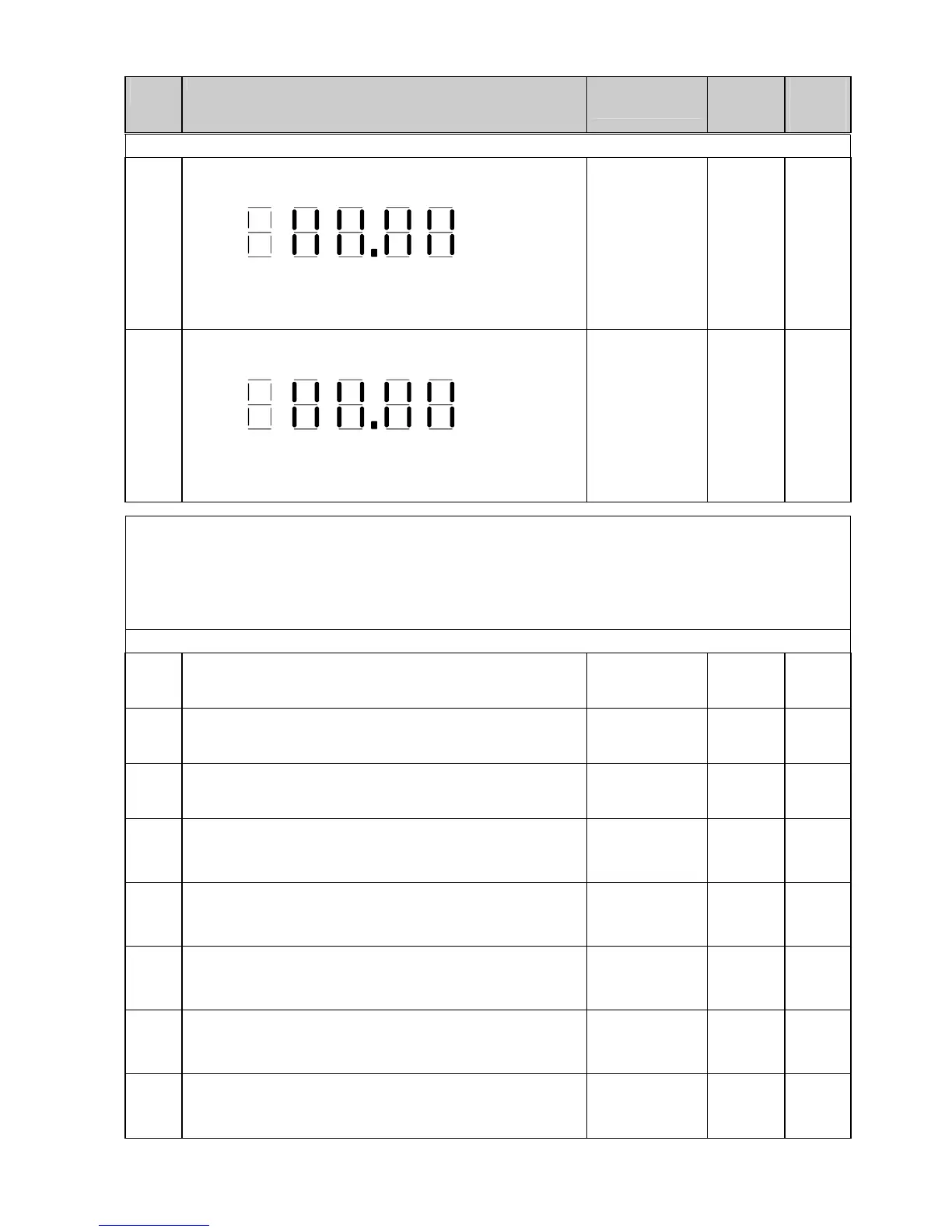

Display of status words 1 and 2
r652
(G182)
Display of status word 1
Mode of representation on operator panel (PMU):
3210
4
5
6
7
89101112131415
Segments 0 to 15 correspond to bits 0 to 15 of the status word
Segment ON: Corresponding bit is in log. "1" state
Segment OFF: Corresponding bit is in log. "0" state
Ind: None
Type: V2
P052 = 3
r653
(G183)
Display of status word 2
Mode of representation on operator panel (PMU):
3210
4
5
6
7
89101112131415
Segments 0 to 15 correspond to bits 16 to 31 of the status word
Segment ON: Corresponding bit is in log. "1" state
Segment OFF: Corresponding bit is in log. "0" state
Ind: None
Type: V2
P052 = 3
The following parameters are used to select the binectors (some of which are gated with one another or with other signals) to be applied to
the individual bits of the control word.
The settings of all these parameters are as follows:
0 = binector B0000
1 = binector B0001
etc.
The functions and logic operations are also shown on Sheets G180 and G181 in Section 8.
Control word 1
P654
*
BDS
(G130)
Source for control word 1, bit0
(0=OFF1, 1=ON; ANDed with terminal 37)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P655
*
BDS
(G180)
1st source for control word 1, bit1
(0=OFF2; ANDed with 2
nd
and 3
rd
sources for bit1)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P656
*
BDS
(G180)
2nd source for control word 1, bit1
(0=OFF2; ANDed with 1
st
and 3
rd
sources for bit1)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P657
*
BDS
(G180)
3rd source for control word 1, bit1
(0=OFF2; ANDed with 1
st
and 2
nd
sources for bit1)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P658
*
BDS
(G180)
1st source for control word 1, bit2
(0=OFF3=Fast stop; ANDed with 2
nd
and 3
rd
sources for bit2)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P659
*
BDS
(G180)
2nd source for control word 1, bit2
(0=OFF3=Fast stop; ANDed with 1
st
and 3
rd
sources for bit2)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P660
*
BDS
(G180)
3rd source for control word 1, bit2
(0=OFF3=Fast stop; ANDed with 1
st
and 2
nd
sources for bit2)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
P661
*
BDS
(G180)
Source for control word 1, bit3
(0=pulse disable, 1=enable; ANDed with terminal 38)
All binector numbers
1
Ind: 2
FS=1
Type: L2
P052 = 3
P051 = 40
Offline
