Siemens 6RA7086-6KS22

05.05 Connections
Siemens AG 6RX1700-0AD76 6-7
SIMOREG DC Master Operating Instructions
SIMOREG DC Master
Main contactor
Cable clamping bar
Shield rail
Connecting terminals
Commutating reactor
Cable duct
Line filter
Shield rail
Connecting terminals
Main switch
Circuit-breakers
Circuit breaker
Commutating
reactor for field
Fuse-links/miniature
circuit-breakers
Converter filter
3AC
Fuse-links
Control trans-
former for fan
PE conductor
(position is not critical)
Customer terminal DC
Customer terminal 3AC
Customer terminal of field winding
Pulse encoder
Fig. 1b
Fig. 1c or 1d
Shield connection
Fig. 1a
Fig. 1e
Shield rail
s
Fuse-links

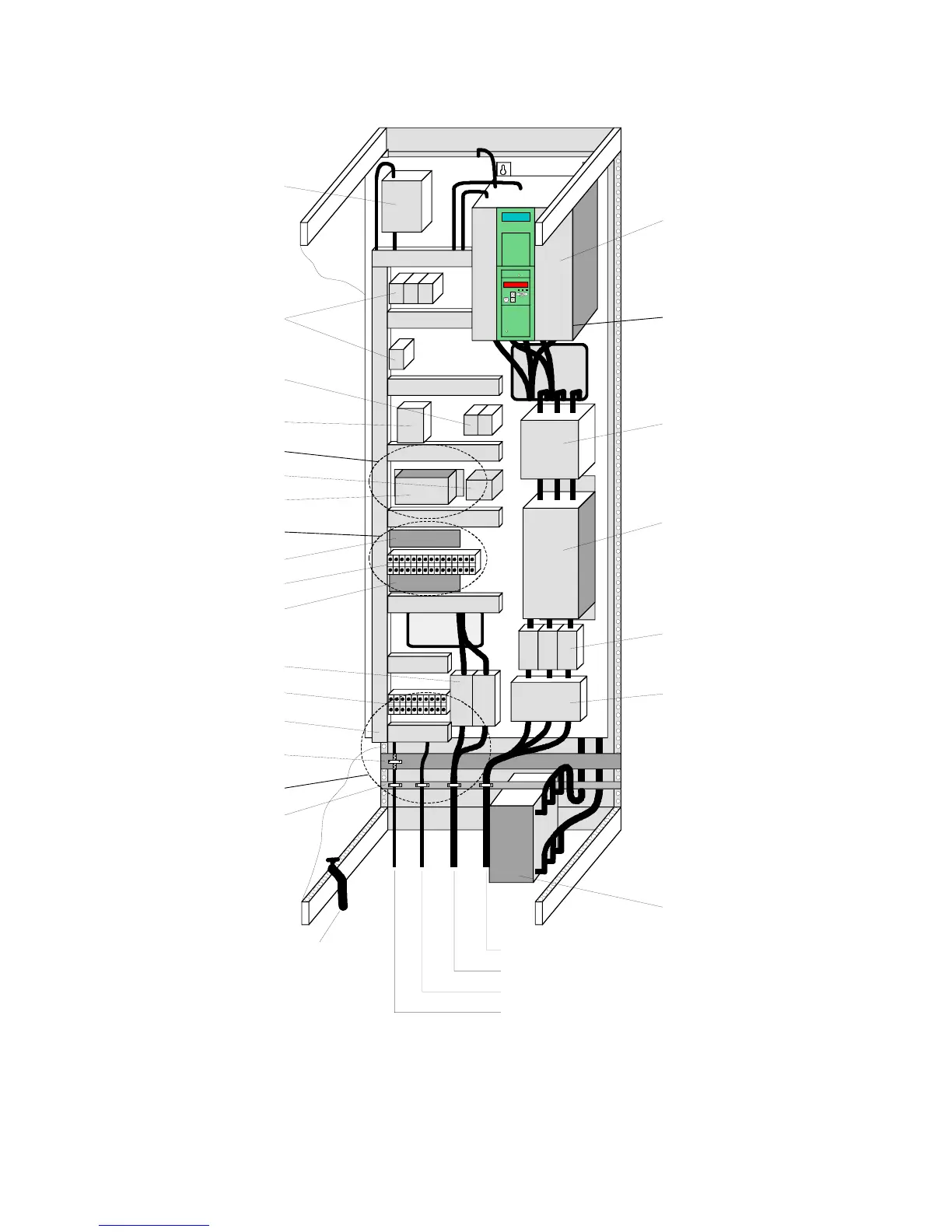

Fig. 1: Example of a cabinet design with a SIMOREG DC Master 15 A to 850 A
