Connections 05.05
6-8 Siemens AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
Cable clamping bar
Shield connection according to the
following variants 1,2,3 and 4.
Connect to cabinet housing at
both ends in conductive,
large-surface connection!
Shield at plant end as well
(e.q. on pulse encoder)
Cable duct
Do not use shield
rail as strain relief
⇒
Cable clamping bar

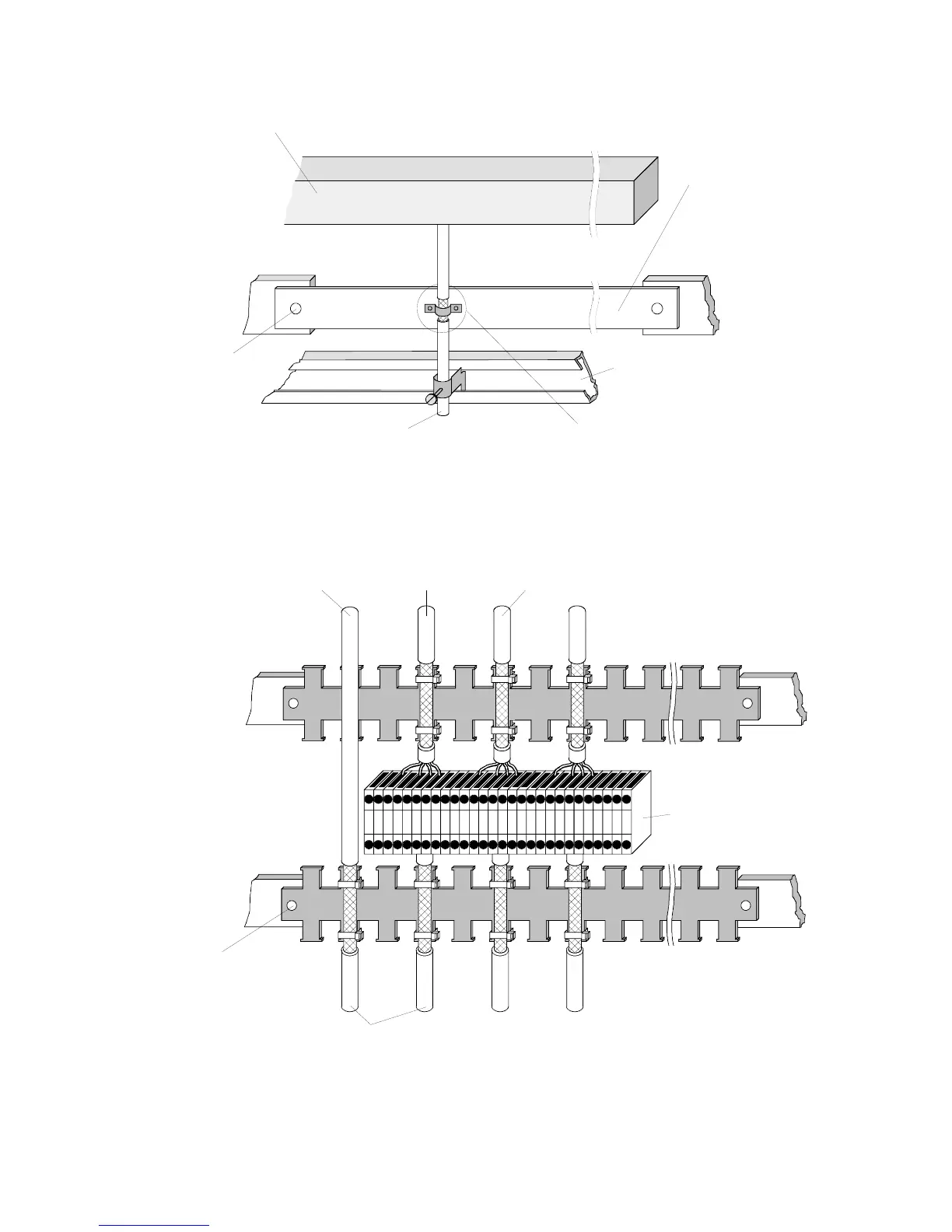

Fig. 1a: Shield at cable entry point to cabinet
Connect to cabinet housing
at both ends in a conductive,
large-area connection!
Terminals
Analog signal line
Data line
(e.g. PROFIBUS-DP)
Data line
(e.g. pulse encoder)
Shield at the plant end as well
(e.g. on pulse encoder)
Fig. 1b: Shielding in the cabinet
