Operating elements and indicators
5.2 MP 270B Keys and OP 270
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
5-3
MP 270B 10" Keys and OP 270 10" keypads
The keypads on the MP 270B 10" Keys and OP 270 10" consist of two functional blocks.
Refer to the figure below. :
• Softkeys
– Keys <K1> to <K16>
– Keys <F1> to <F20>
• System keys
– Alphanumeric keys
– Cursor keys
– Control keys
2
1

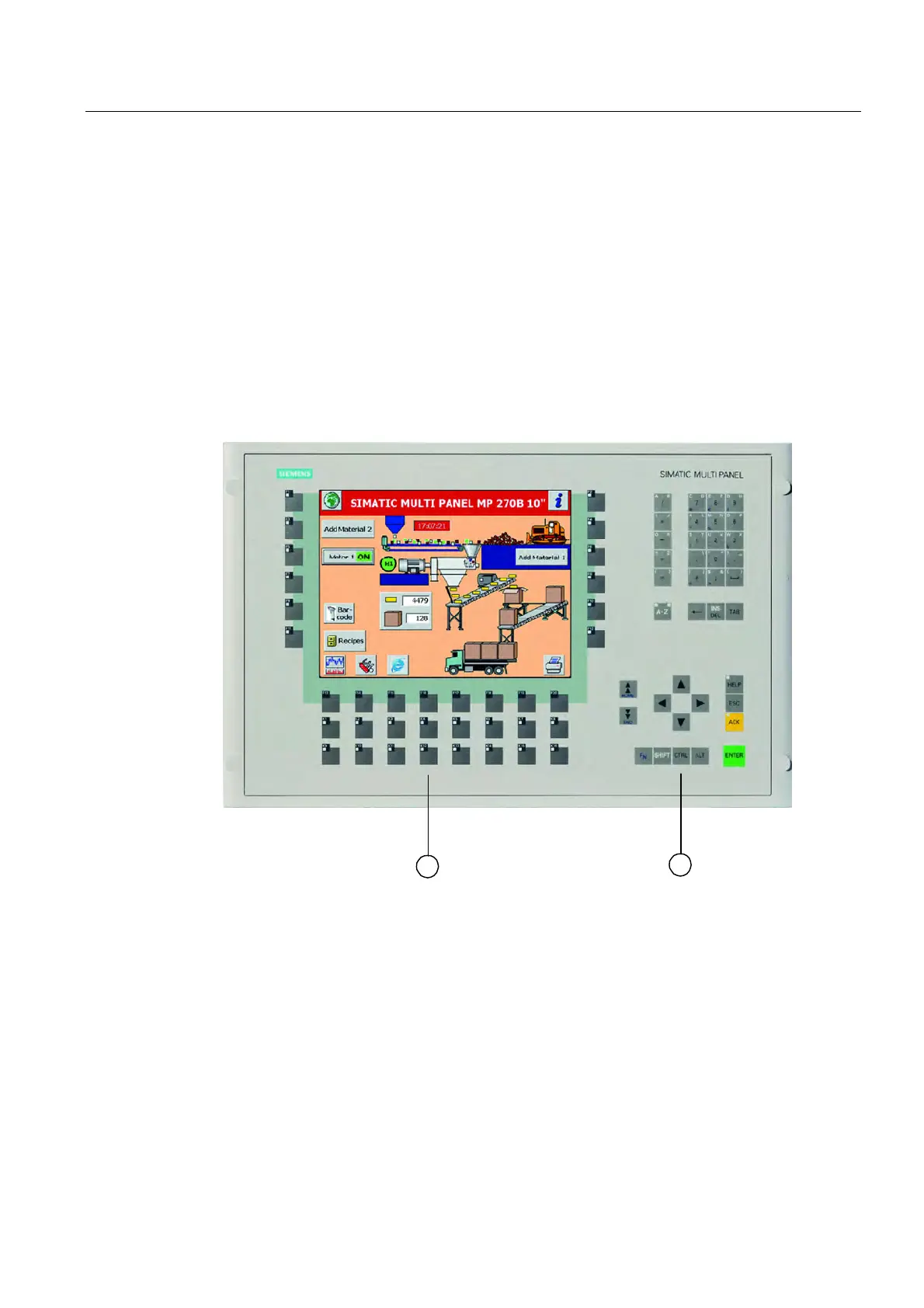

Figure 5-1 Arrangement of the MP 270B 10" Keys and OP 270 10" keypads
1 Function keys
2 System keys
