Operating elements and indicators
5.2 MP 270B Keys and OP 270
TP 270, OP 270, MP 270B (WinCC flexible)
5-4 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
OP 270 60" keypads
The OP 270 6" keyboard is comprised of two functional keypads. Refer to the figure below.
• Softkeys
– Keys <K1> to <K10>
– Keys <F1> to <F14>
• System keys
– Alphanumeric keys
– Cursor keys
– Control keys
1 2

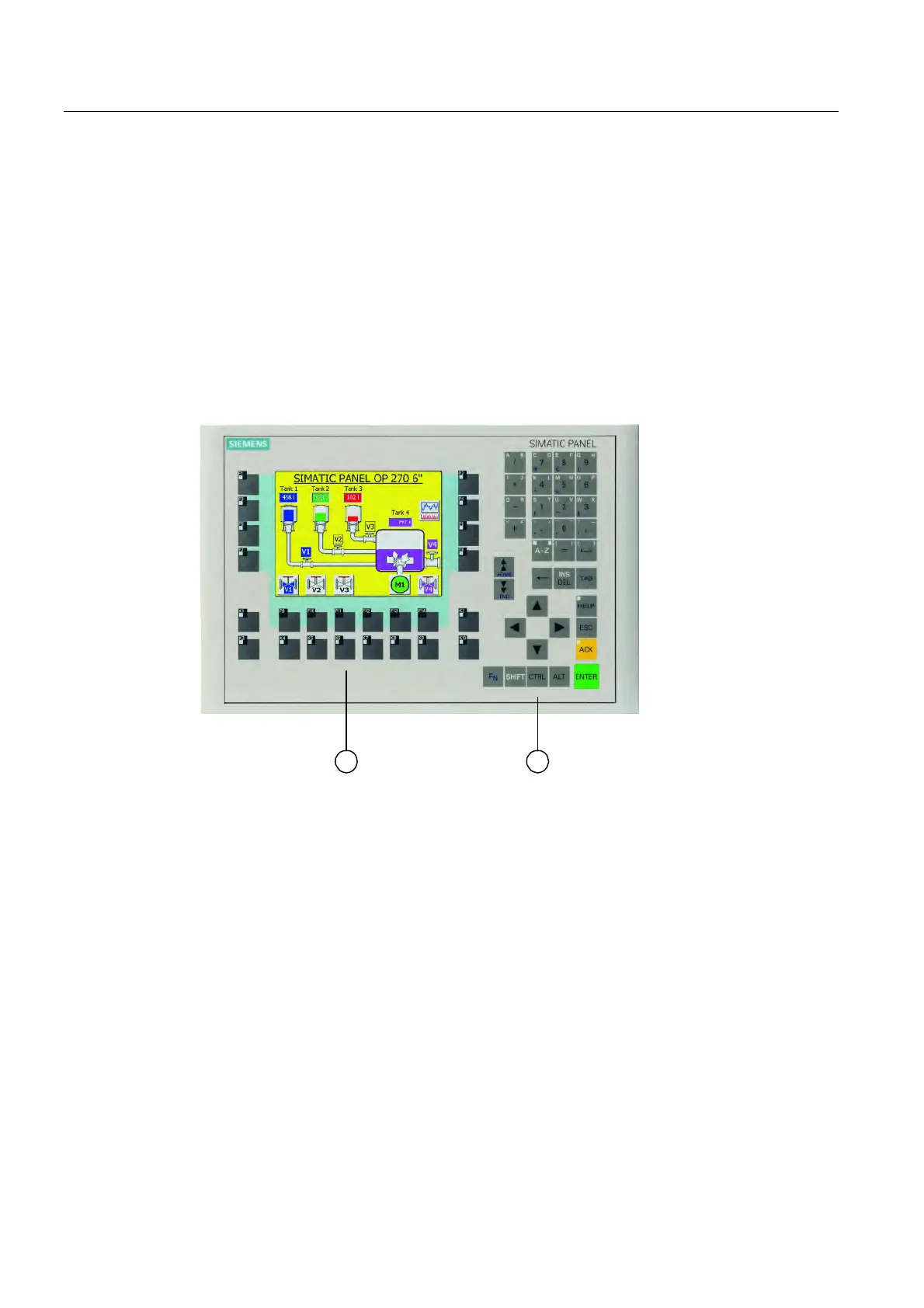

Figure 5-2 OP 270 6" keypad arrangement
1 Function keys
2 System keys
