13.9 Calculation Modules
13.9.1 Calculation Modules
Calculation Modules
Calculation Modules 1 and 2
Both the Calculator 1 and Calculator 2 logic modules integrated in Basic Unit 2 contain the
standard calculation modes and enable all analog values that occur in SIMOCODE pro to be
adapted, calculated and converted, e.g.
● Conversion of the measured temperatures from K (Kelvin) to °F or °C
● Conversion of the motor current from % to A
● Conversion of the 0/4 - 20 mA signals of the Analog Module directly into fill levels,
pressures and flow rates.
The analog value (2 Byte/1 Word) present at the analog socket is calculated using a defined
formula and using freely-selectable parameters (counters, denominators, operators, offsets).
The result of the calculation is output as an analog value at the analog socket of the logic
module (2 Bytes/1 Word) for further processing.
Each Calculator consists of:
● 1 analog plug (Calculator 1) or two analog plugs (Calculator 2)
● 1 logic component
● 1 analog socket (Calculation Module Output).

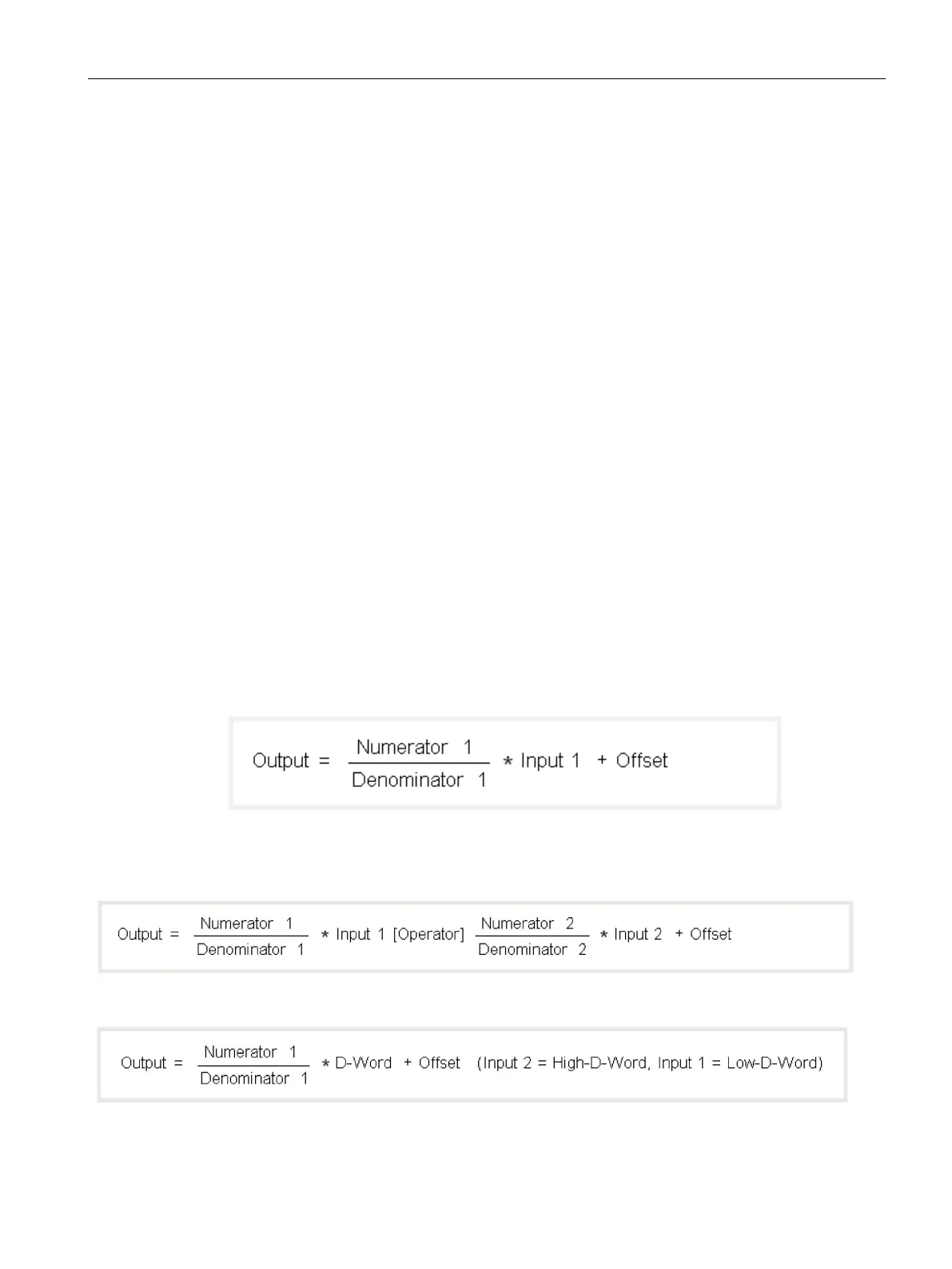

Formula Calculator 1
Formulas Calculator 2
● Operation mode 1: Both inputs of type word.
● Operation mode 2: Inputs 1 and 2 correspond to a D-word input.
● Offset value range: - 2147483648 to 2147483647, increment 1.
