Parameter Function Parameter values Unit
39.BIN1
2)
Function binary input 1 NO contact NC contact
None OFF
Message only on -on
Block configuration bloc1
Block configuring and manual operation bloc2
Move valve to position YE uP -uP
Move valve to position YA doWn -doWn
Block movement StoP -StoP
Partial stroke test PST -PST
40.BIN2
2)
Function binary input 2 NO contact NC contact
None OFF
Message only on -on
Move valve to position YE uP -uP
Move valve to position YA doWn -doWn
Block movement StoP -StoP
Partial stroke test PST -PST
41.AFCT
3)
Alarm function Normal Inverted
None OFF
A1 = Min, A2 = Max
A1 = Min, A2 = Min
A1 = Max, A2 = Max
42.A1 Response threshold, alarm 1 0.0 ... 10.0 ... 100 %
43.A2 Response threshold, alarm 2 0.0 ... 90.0 ... 100 %
44. FCT
3)
Fault message function Normal Inverted
Fault
Fault + not automatic
4)
Fault + not automatic + BIN
4)
45. TIM Monitoring period for setting the fault message
'Control deviation'
Auto / 0 ... 100 s
46. LIM Response threshold of fault message 'Control
deviation'
Auto / 0 ... 100 %
47. STRK Limit monitoring for the number of total strokes 0 ... 1.00E9
48.PRST Preset
Reset all parameters which can be reset
by 'Init', 'PArA' and 'diAg'.
ALL
Reset initialization parameters '1.YFCT'
to '5.INITM'.
Init
Reset parameters '6.SDIR' to '47. STRK'
and '51.FSTY' to '53.FSVL'.
PArA
Reset parameters A to P of the extended
diagnostics function as well as parame‐
ter '50.XDIAG'.
diAg
Parameter assignment

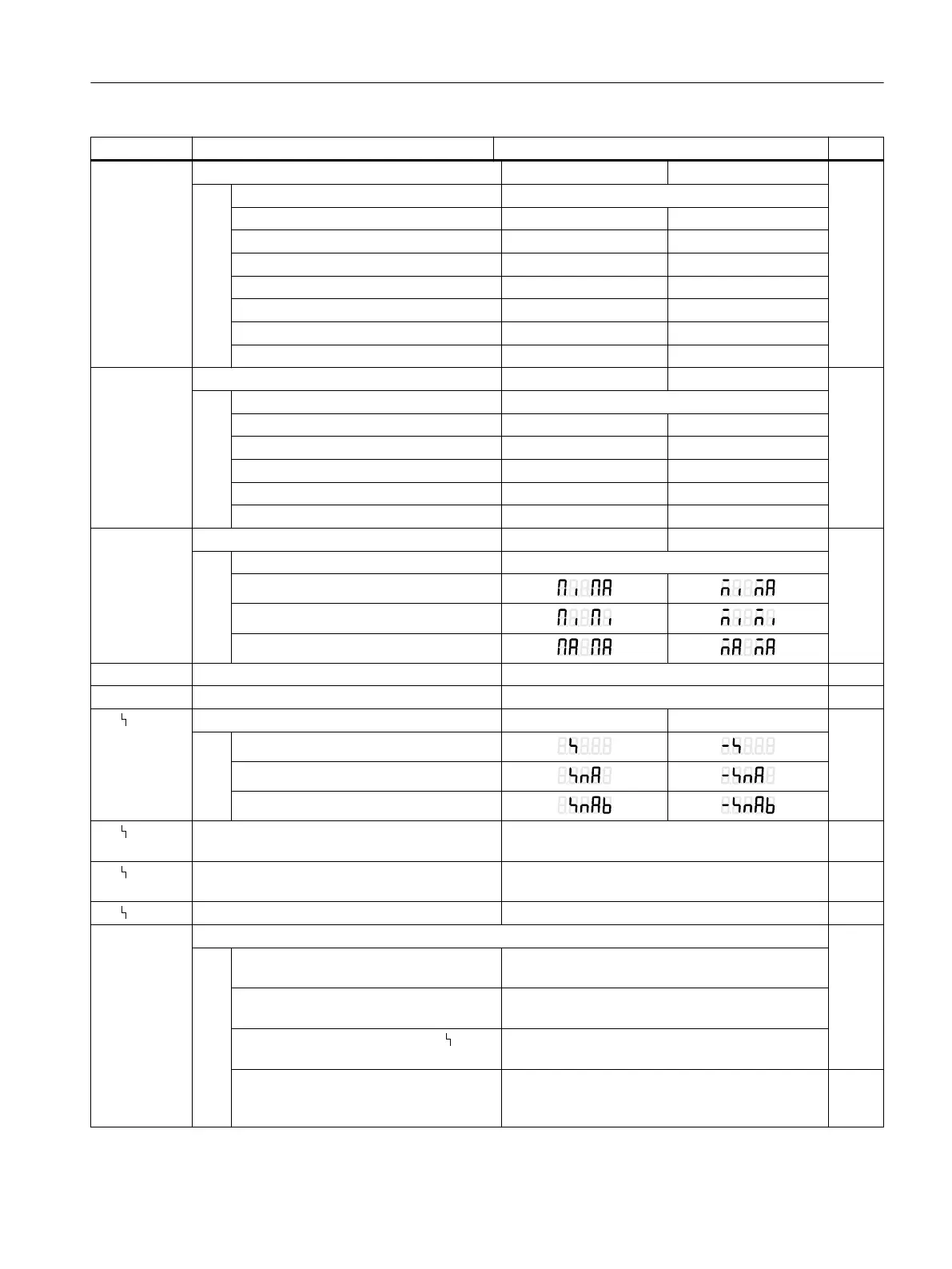

8.2 Tabular overview of the parameters
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 137
