4. If you use a short lever, the carrier pin is already pre-mounted. If you use the long lever
6DR4004-8L, fasten the carrier pin ④ with the existing parts to the long lever.




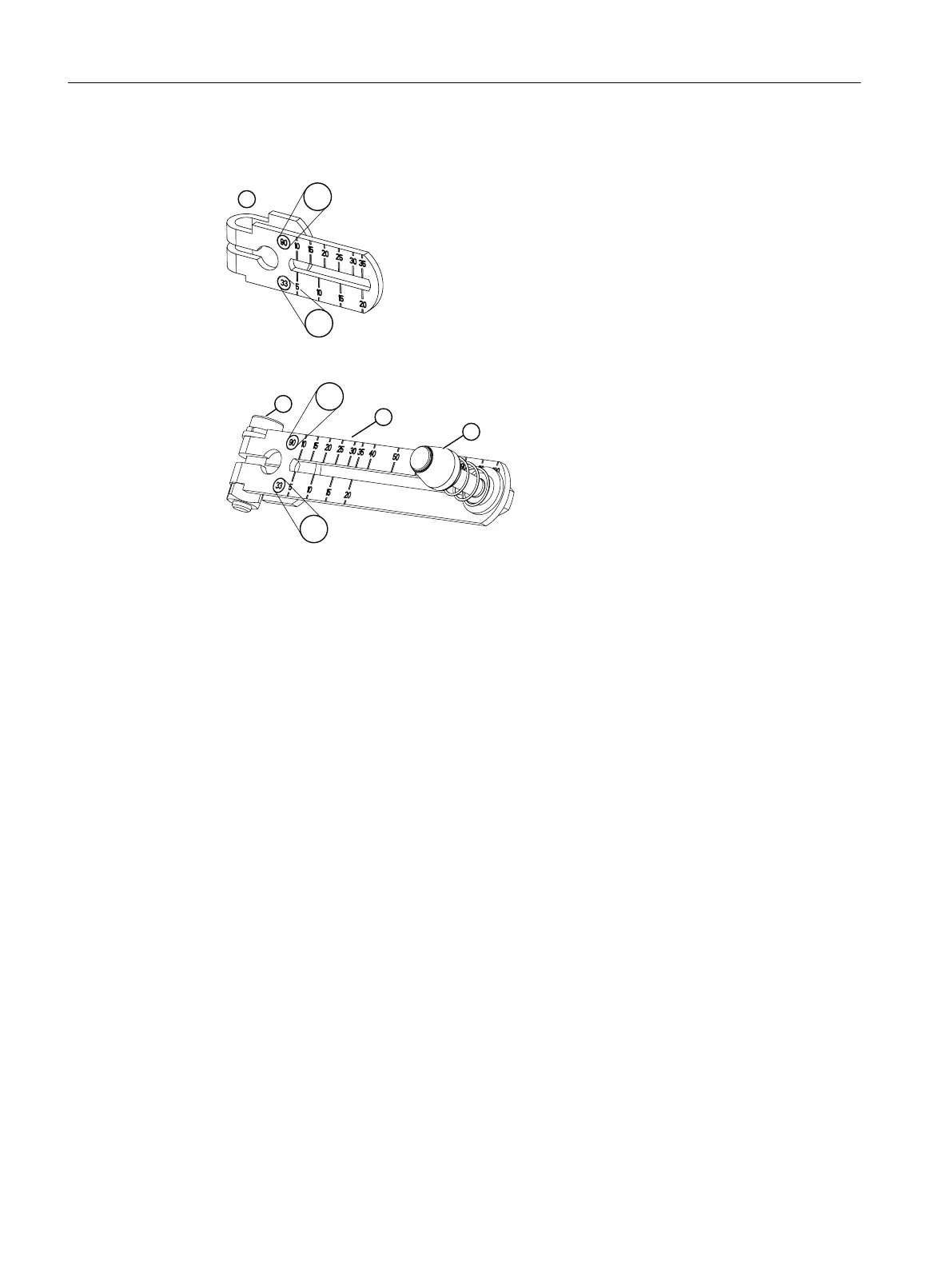

Figure 4-3 Short lever





Figure 4-4 Long lever 6DR4004-8L with mounted carrier pin ④ and cylinder head screw ⑰
5. Set the stroke value. The stroke value is specified on the nameplate of the actuator. Position
the pin center of the carrier pin ④ on the corresponding value of the scale. If none of the
values on the lever scale matches the stroke value of the actuator, select the next higher
value on the scale.
For strokes ≥ 25 mm, select the scale (90). For strokes < 25 mm, select the scale (33).
6. Set the transmission ratio selector to the value of the selected scale.
7. If you need the value of actuator travel after initialization in mm: ensure that the configured
stroke value matches the value of the "3.YWAY" parameter.
8. Push the pre-installed lever ⑥ up to the endstop on the positioner shaft. Fasten the lever ⑥
with socket cap screw ⑰.
Installing/mounting
4.2 Mounting to linear actuator
SIPART PS2 with PROFIBUS PA
44 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
