Siemens SIPART PS2 User Manual

9. Install the mounting bracket ① at the rear side of the positioner. Use 2 hexagon bolts ⑨,
2 spring lock washers ⑩ and 2 flat washers ⑪ for this purpose.








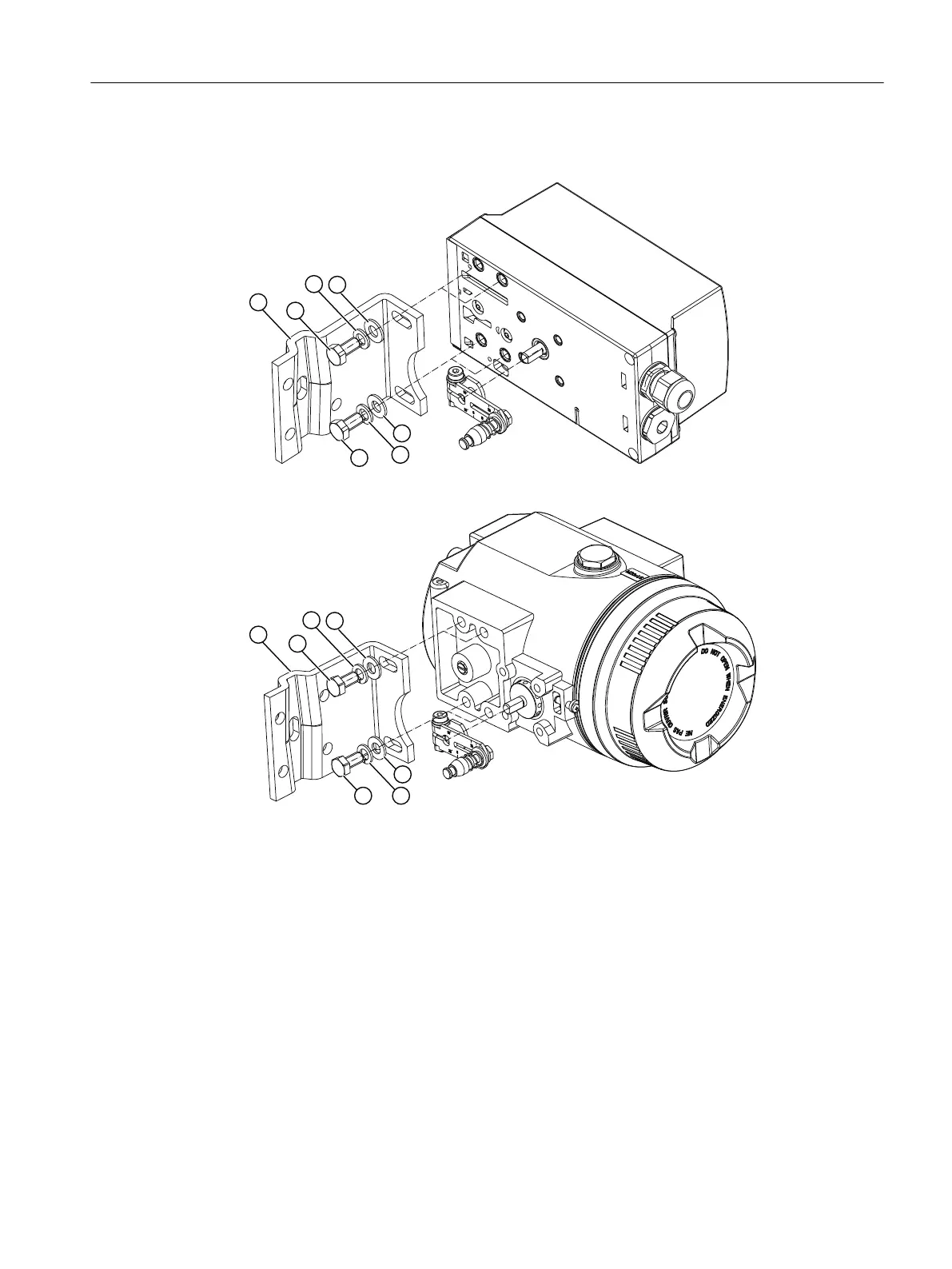

Figure 4-5 Installation with mounting bracket







Figure 4-6 Installation with mounting bracket, flameproof enclosure
10.Select the row of holes. The selection of the row of holes depends on the yoke width of the
actuator. Select the row of holes in such a way that the carrier pin ④ meshes with the pick-
up bracket ② near the spindle.
11.Keep the positioner and the fastening bracket on the actuator. Ensure that the carrier pin ④
for the entire range of stroke of the actuator is guided inside the pick-up bracket ②. Ensure
that the carrier pin ④ does not touch the clamping pieces ③.
Installing/mounting
4.2 Mounting to linear actuator
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 45

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
