12.Tighten the pick-up bracket ②.

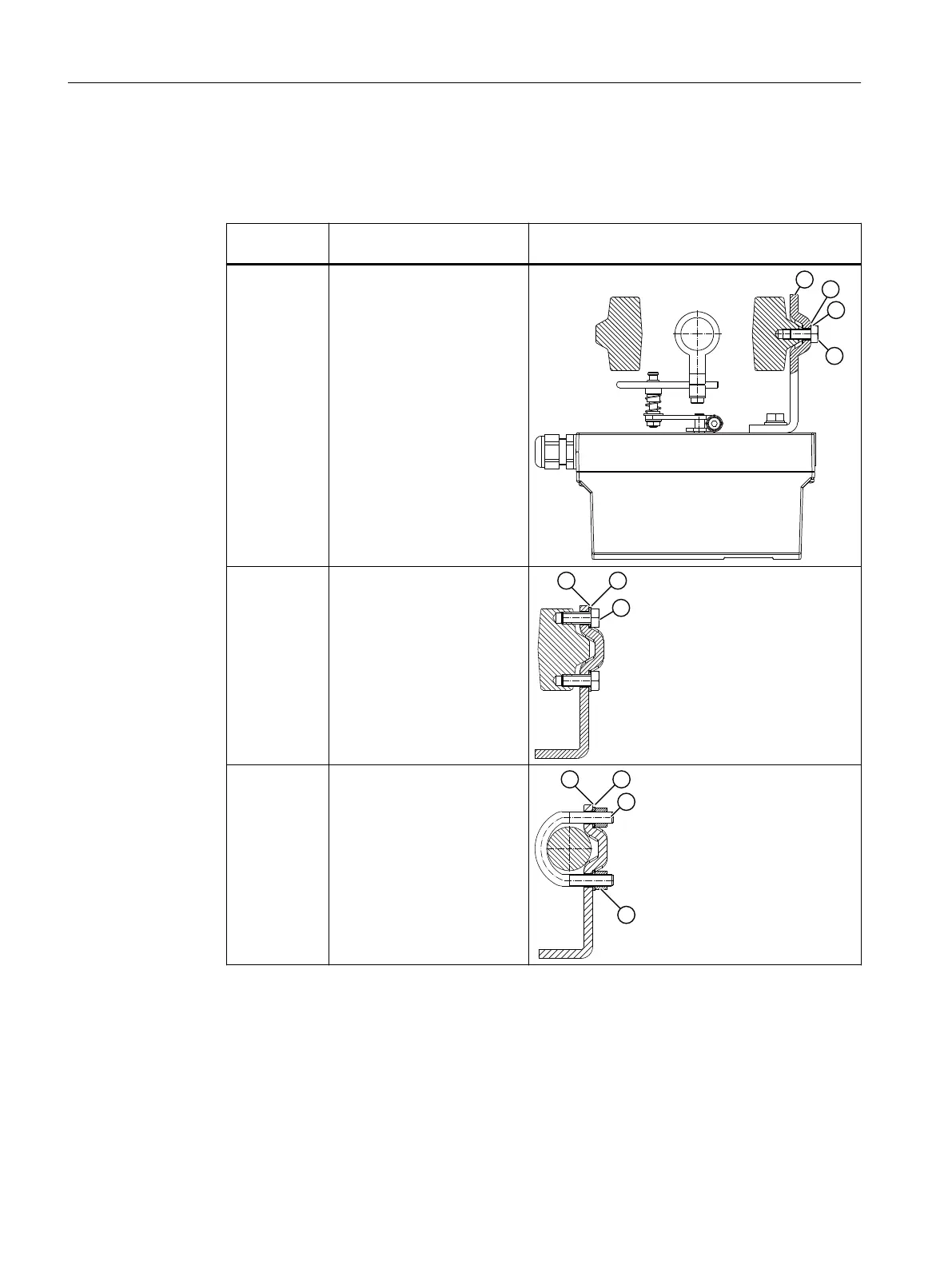

13.Fasten the positioner on the yoke. Use the installation parts suitable for the corresponding
actuator.
Actuator type Required installation compo‐
nents
Yoke with fin
● Hexagon bolt ⑧
● Washer ⑪
● Spring lock washer ⑩




Yoke with
plane surface
● Four hexagon bolts ⑧
● Washer ⑪
● Spring lock washer ⑩


Yoke with col‐
umns
● Two U–bolts ⑦
● Four hexagon nuts ⑳
● Washer ⑪
● Spring lock washer ⑩



Installing/mounting
4.2 Mounting to linear actuator
SIPART PS2 with PROFIBUS PA
46 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
