● Any already installed optional module has been removed.
● You have one of the following external position detection systems / Position Transmitters:
– 6DR4004-.N* NCS sensor
– C73451-A430-D78 Polycarbonate enclosure with potentiometer
– 6DR4004-1ES Aluminum enclosure with potentiometer
– 6DR4004-2ES Aluminum enclosure with NCS
– 6DR4004-3ES Aluminum enclosure with NCS and SIA module / Inductive Limit Switch
(ILS)
– 6DR4004-4ES Aluminum enclosure with NCS and Mechanic Limit Switch (MLS)
Procedure for installing the EMC filter module
① EMC filter module terminals ⑤ Basic electronics
② Yellow wheel for locking the position detection ⑥ Screw
③ Positioner ⑦ EMC filter module 6DR4004-6F/-8F
④ Ribbon cable connector of fitted potentiometer,
or ribbon cable connector of EMC filter module

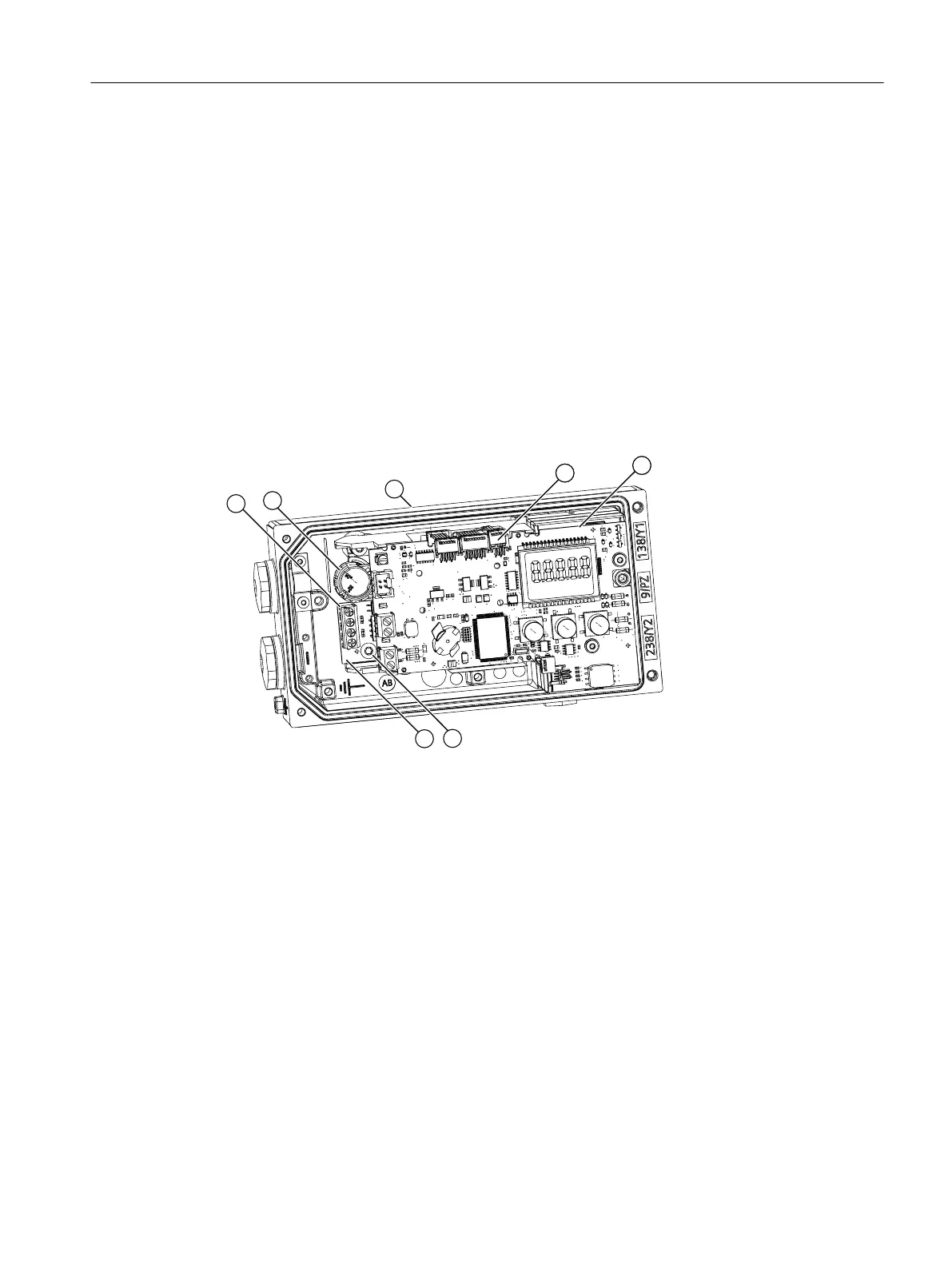

Figure 4-21 Installation EMC filter module
1. Open the positioner as described in section "Opening the standard and and intrinsically safe
version (Page 53)".
2. Remove the ribbon cable from the basic electronics.
3. Loosen the two fixing screws of the basic electronics ⑤.
4. Remove the basic electronics.
5. Loosen the screw ⑥ in the connection area of the positioner.
Installing/mounting
4.5 Installing the optional modules
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 75
