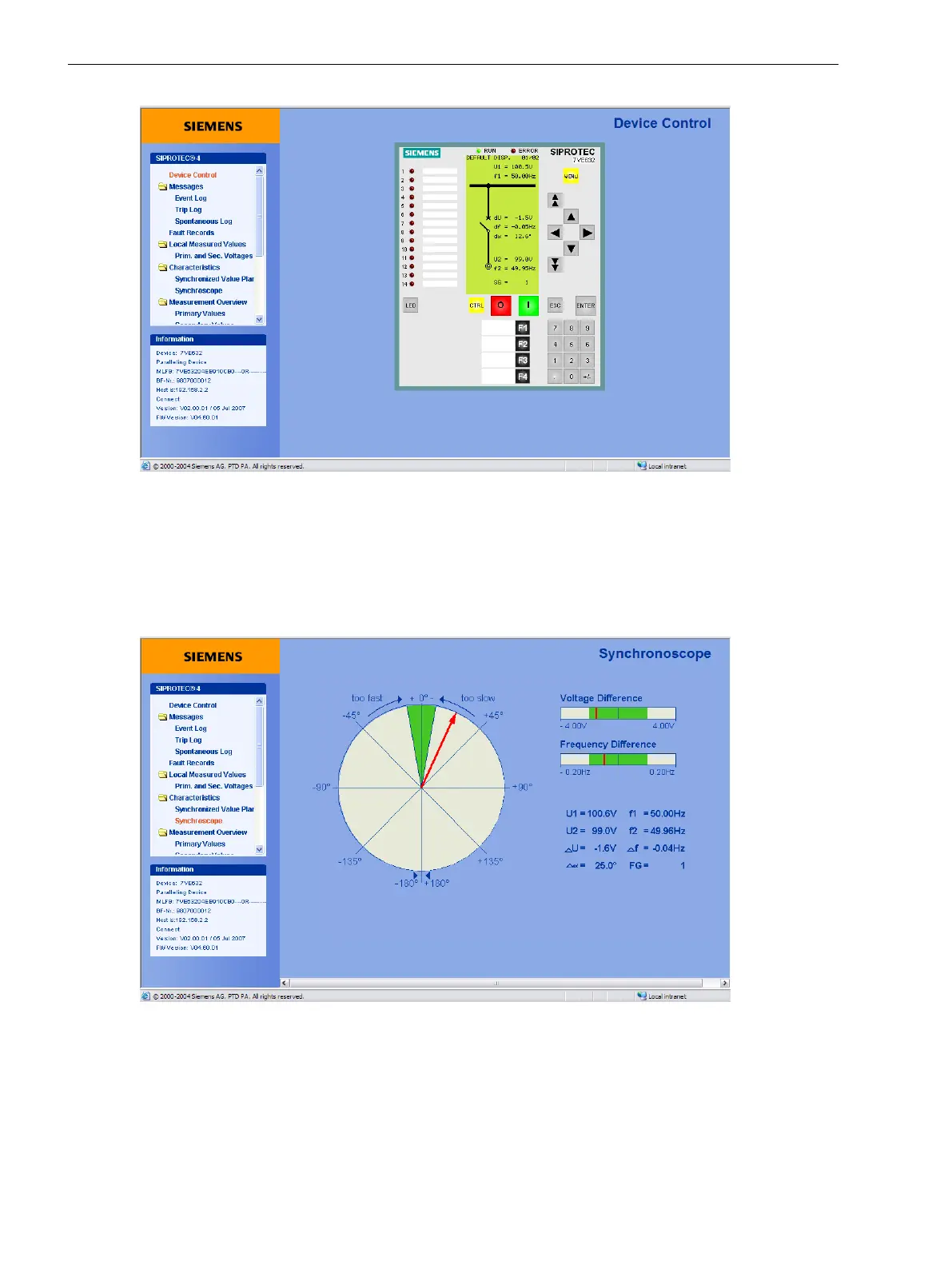

Figure 3-29 Web-Tool – remote control by means of virtual device 7VE6
On the start page are displayed all the data to identify the device. All the parameter settings can be used
directly at the device via the view of the Control Remote.
With more selection fields the measured. values and the parameterized operating ranges of the synchroniza-
tion function can be visualized. Also, a running synchronization by visualization of the rotating vector (U2) is
dynamically illustrated via the option Synchroscope (see the following Figure).
[ve6-ibs-synchronoskop, 1, en_GB]
Figure 3-30 Browser control – Visualisation of the synchronisation values (Synchroscope)
1st Parallel Switching with the Synchronization Function
Prerequisites
After all tests are completed, the first “hot” synchronization occurs.
3.3.13
Mounting and Commissioning
3.3 Commissioning
188 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
