Traction Power Systems in 16.7 Hz
The following connection has to be selected for 16.7 Hz traction power systems. With this system structure,
there is no phase rotation check. The two-channel feature is fully ensured. Wire break in external voltage
transformer circuits is not detected when connecting on a dead busbar. Here it is recommended an additional
query from a further voltage transformer.
[ve6-bahnstromanwendung-030205-kn, 1, en_GB]

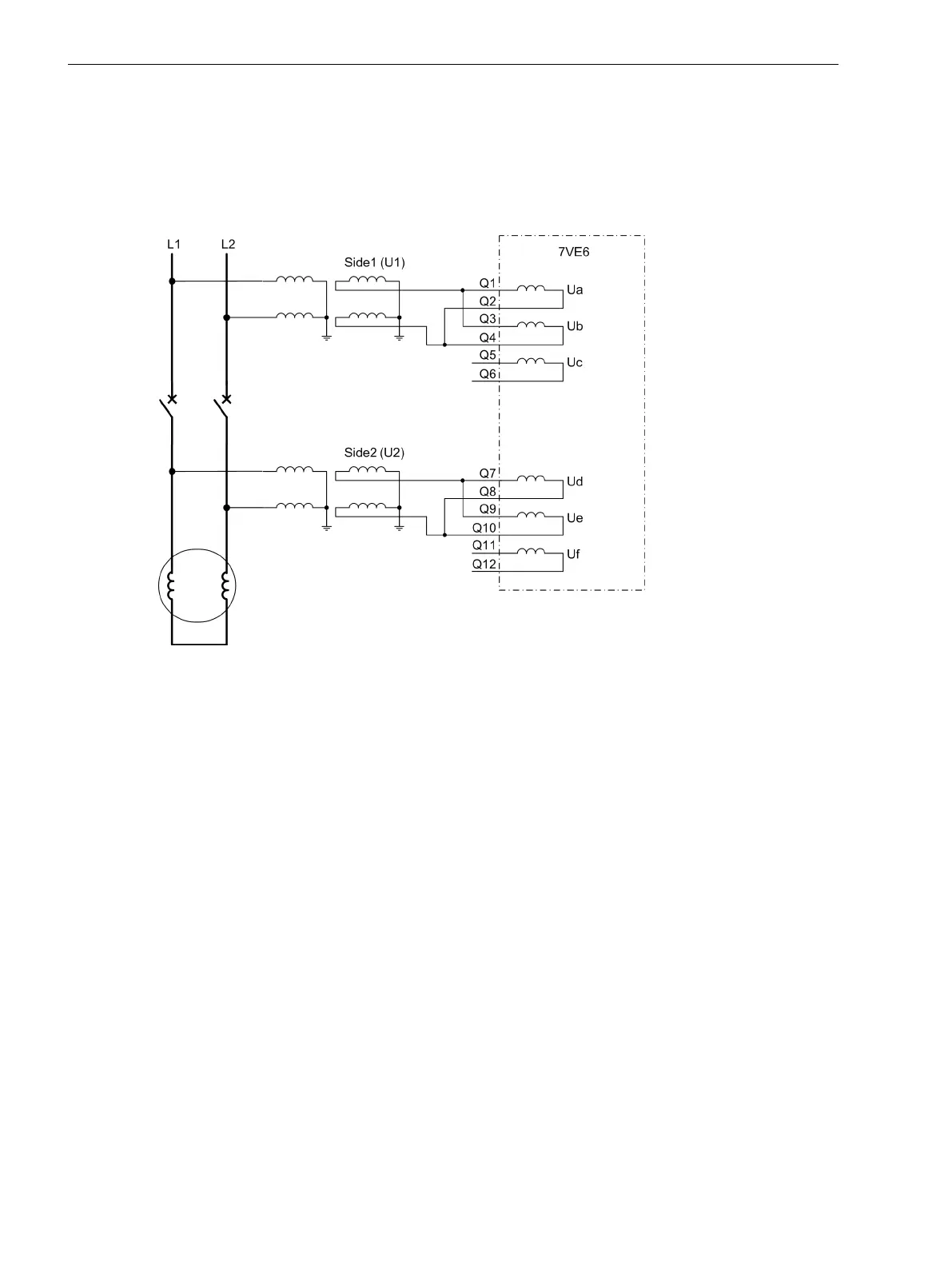

Figure C-7
Connection with traction power application in 16.7 Hz network
C.3
Connection Examples
C.3 Traction Power Systems in 16.7 Hz
