7VE61 complete connection examples
[ve61-anschlussbeispiel-komplett-030205-kn, 1, en_GB]

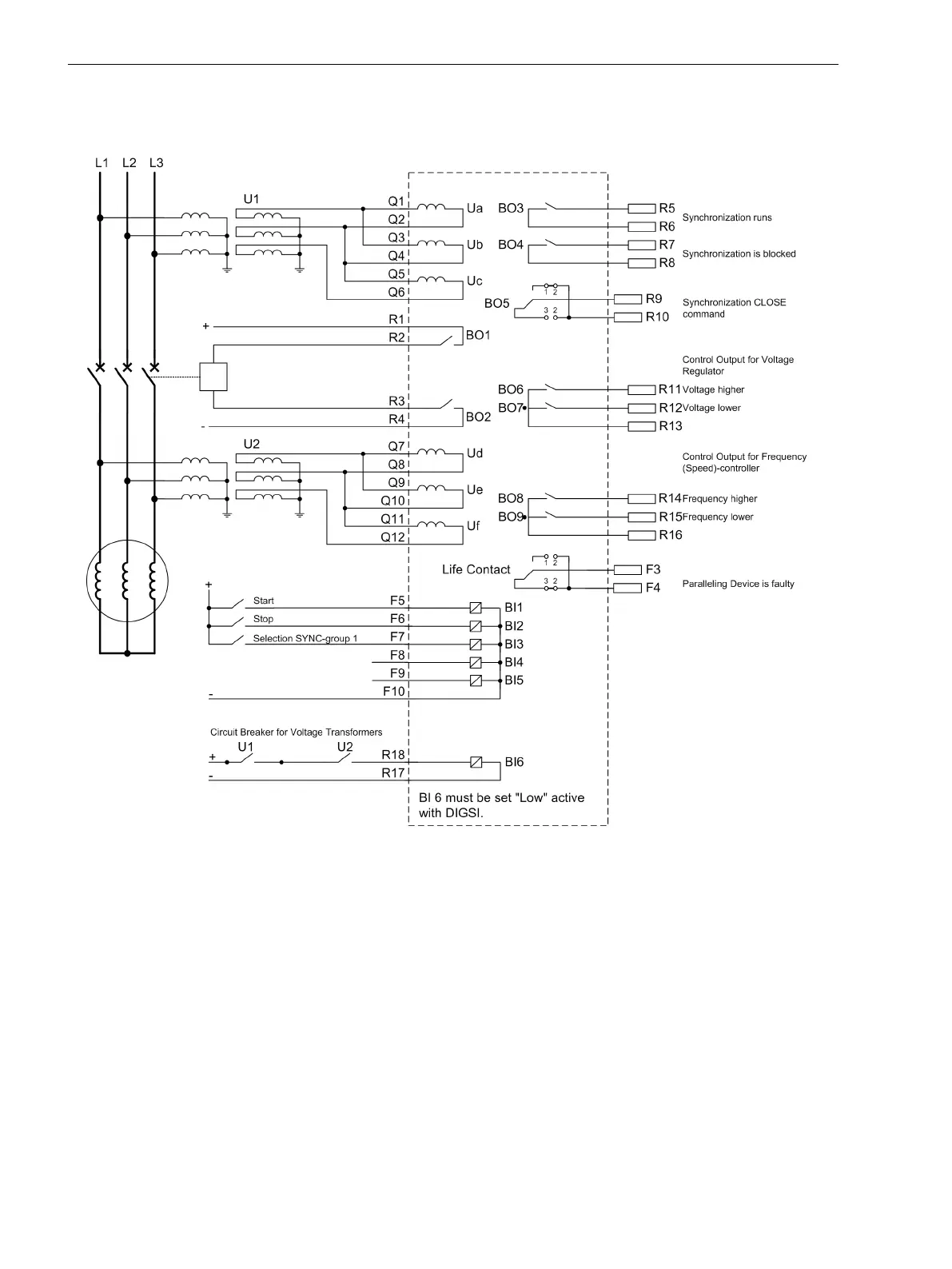

Figure C-1
Connection circuit for the synchronization of a generator — Example 7VE61**-*E in flush
mounted case
C.1
Connection Examples
C.1 7VE61 complete connection examples
238 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
