Default Display

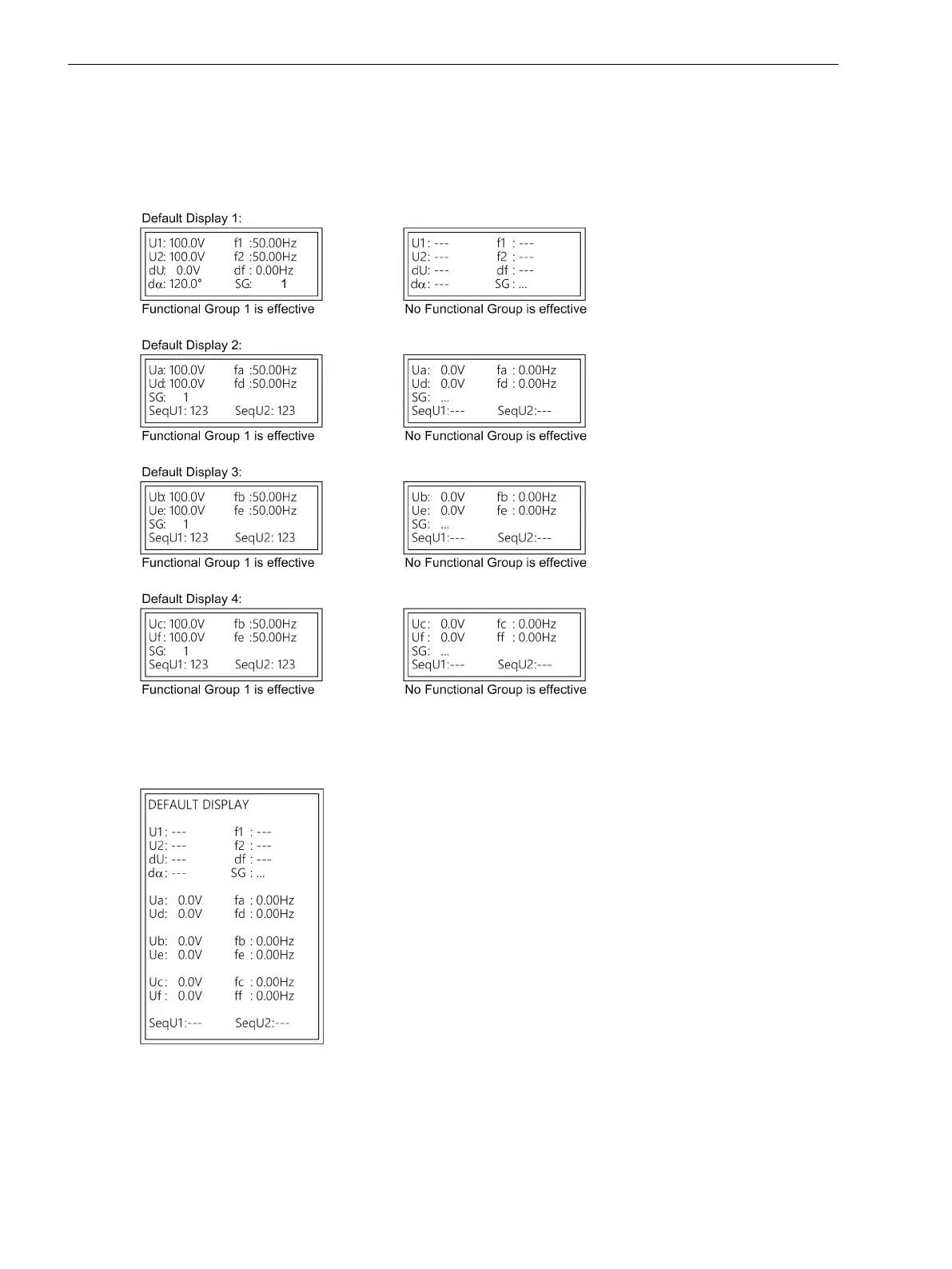

Basic Display of a 7VE61 with Text Display
The following selection is available as start page which may be configured:
[grundbilder-kleines-display-190303-kn, 1, en_GB]
Figure D-1
Basic display of a 7VE61 (with text display)
Basic Displays of a 7VE61 with Graphic Display
[grundbild-bei-grafikdisplay-190303-kn, 1, en_GB]
Figure D-2 Basic display of a 7VE63 device with a large number of measured values (with graphic)
D.5
Default Settings and Protocol-dependent Functions
D.5 Default Display
252 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
