[ve6-grundbild-160603-kn, 1, en_GB]

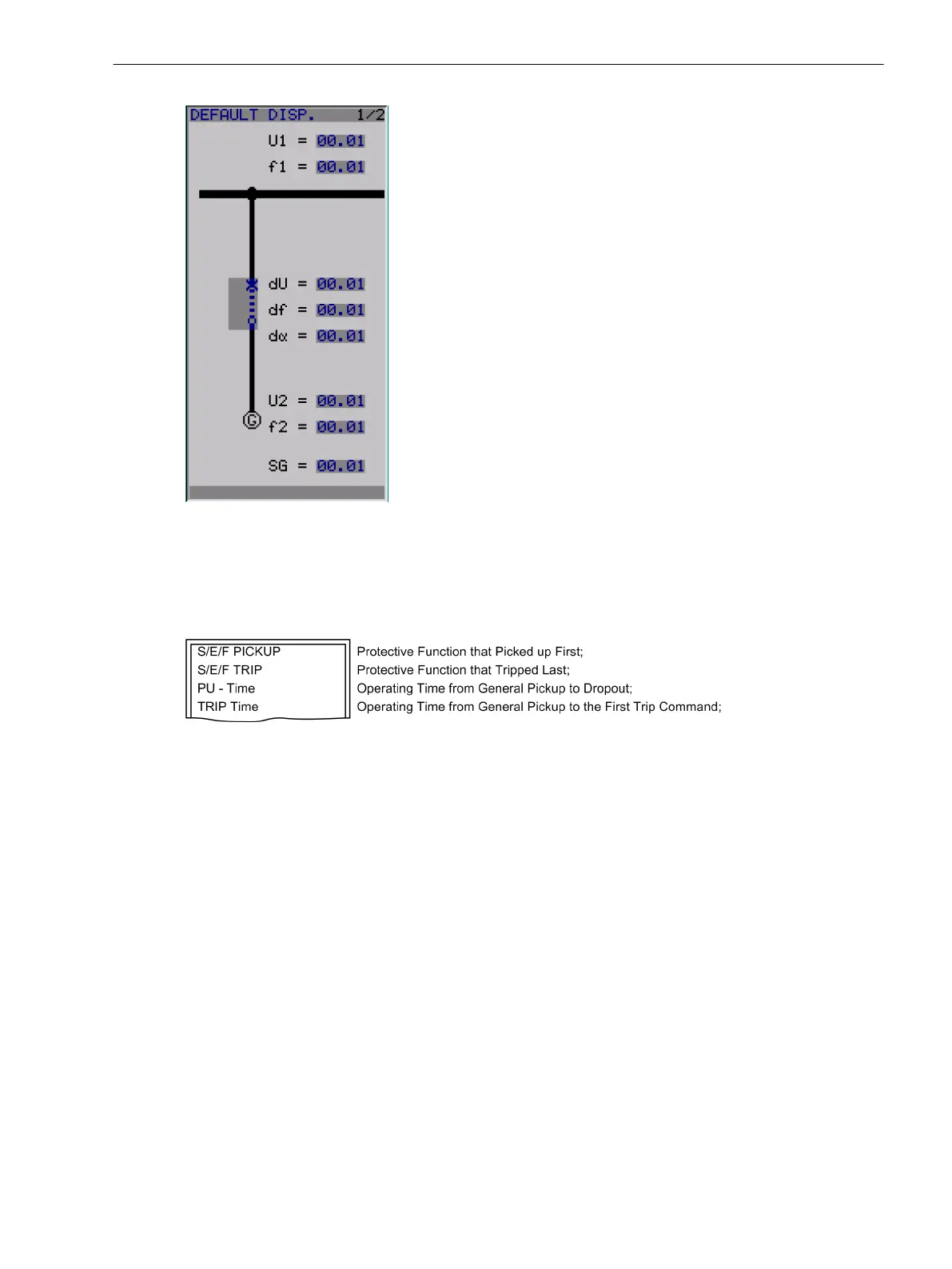

Figure D-3 Basic display of a 7VE63 showing the system (with graphic display)
Spontaneous Fault Message Display
After a fault, automatically and without operator action, the most important fault data from the general device
7VE61 and 7VE63 pickup appears on the display in the sequence shown in the following figure.
[anzeige-spontanmeldungen-im-display-des-geraetes-260602-kn, 1, en_GB]
Figure D-4 Display of spontaneous messages in the display – example
Default Settings and Protocol-dependent Functions
D.5 Default Display
SIPROTEC 4, 7VE61 and 7VE63, Manual 253
C53000-G1176-C163-3, Edition 10.2017
