Siemens SIPROTEC 4 7VE61 User Manual

[ve6-beispielausgabedu-07032003-kn, 1, en_GB]

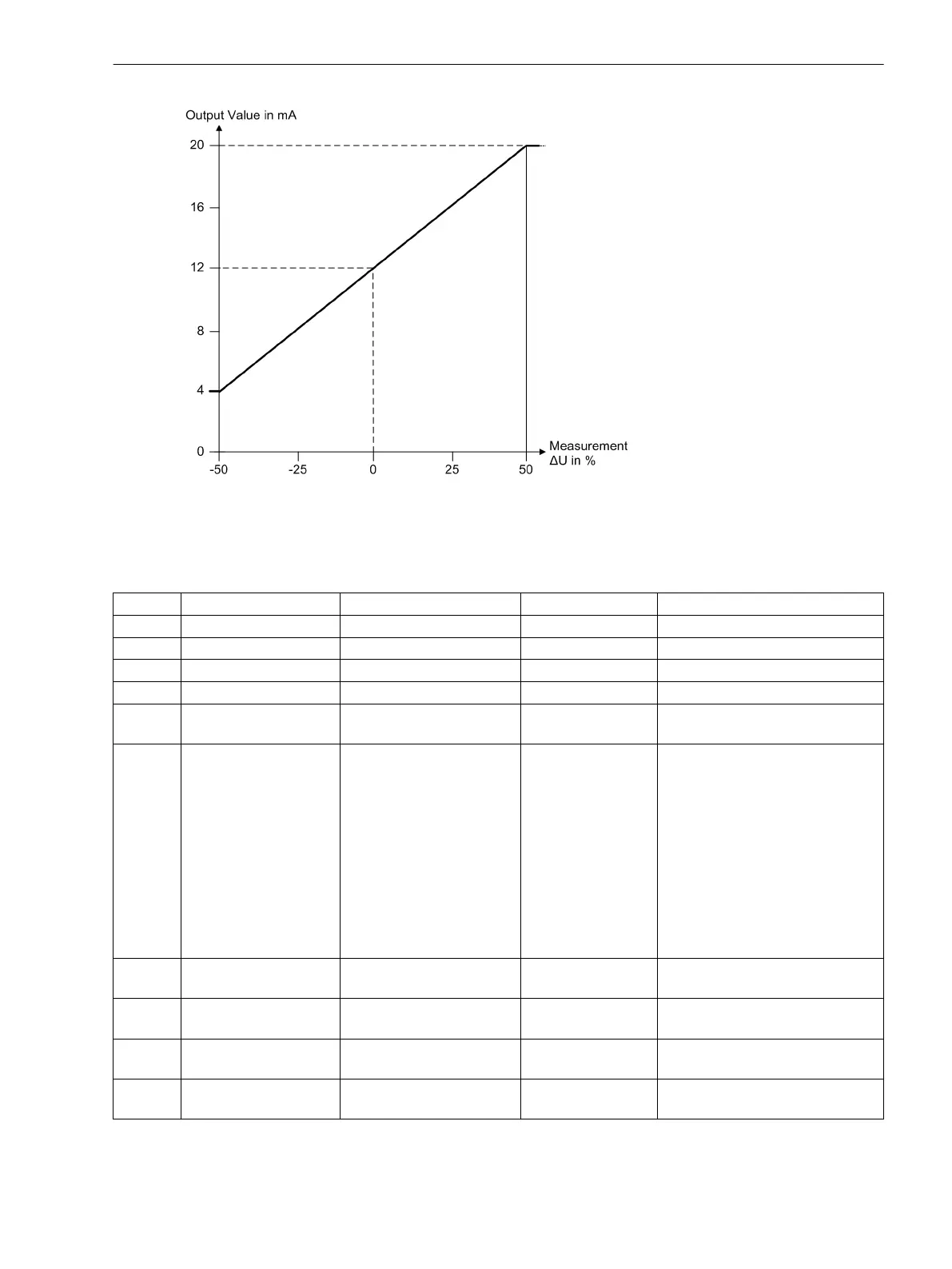

Figure 2-50 Example of an output of the measured value ΔU
Settings
Addr.
Parameter Setting Options Default Setting Comments
7301 SCAL. U 10.0 .. 180.0 V 100.0 V Scaling factor U for 100%
7302 SCAL. f 10.00 .. 200.00 Hz 100.00 Hz Scaling factor f for 100%
7303 SCAL. ΔU 1.0 .. 180.0 V 5.0 V Scaling factor DELTA U for 100%
7304 SCAL. Δf 1.00 .. 200.00 Hz 10.00 Hz Scaling factor DELTA f for 100%
7305 SCAL. Δα 1.0 .. 180.0 ° 10.0 ° Scaling factor DELTA ALPHA for
100%
7311 ANALOGOUTPUT B1 U1 [%]
f1 [%]
U2 [%]
f2 [%]
ΔU [%]
Δf [%]
Δα [%]
|ΔU| [%]
|Δf| [%]
|Δα| [%]
ΔU [%] Analog Output B1 (Port B)
7312 MIN. VALUE(B1) -200.00 .. 100.00 % -50.00 % Minimum Percentage Output
Value (B1)
7313 MIN. OUTPUT(B1) 0 .. 10 mA 4 mA Minimum Current Output Value
(B1)
7314 MAX. VALUE(B1) 10.00 .. 200.00 % 50.00 % Maximum Percentage Output
Value (B1)
7315 MAX. OUTPUT(B1) 10 .. 22 mA 20 mA Maximum Current Output Value
(B1)
2.11.3
Functions
2.11 AnalogOutputs
SIPROTEC 4, 7VE61 and 7VE63, Manual 109
C53000-G1176-C163-3, Edition 10.2017
