Housing for Panel Flush and Cubicle Mounting
7VE61**–*E
[schrankeinbau-7ve61-e-170203-oz, 1, en_GB]

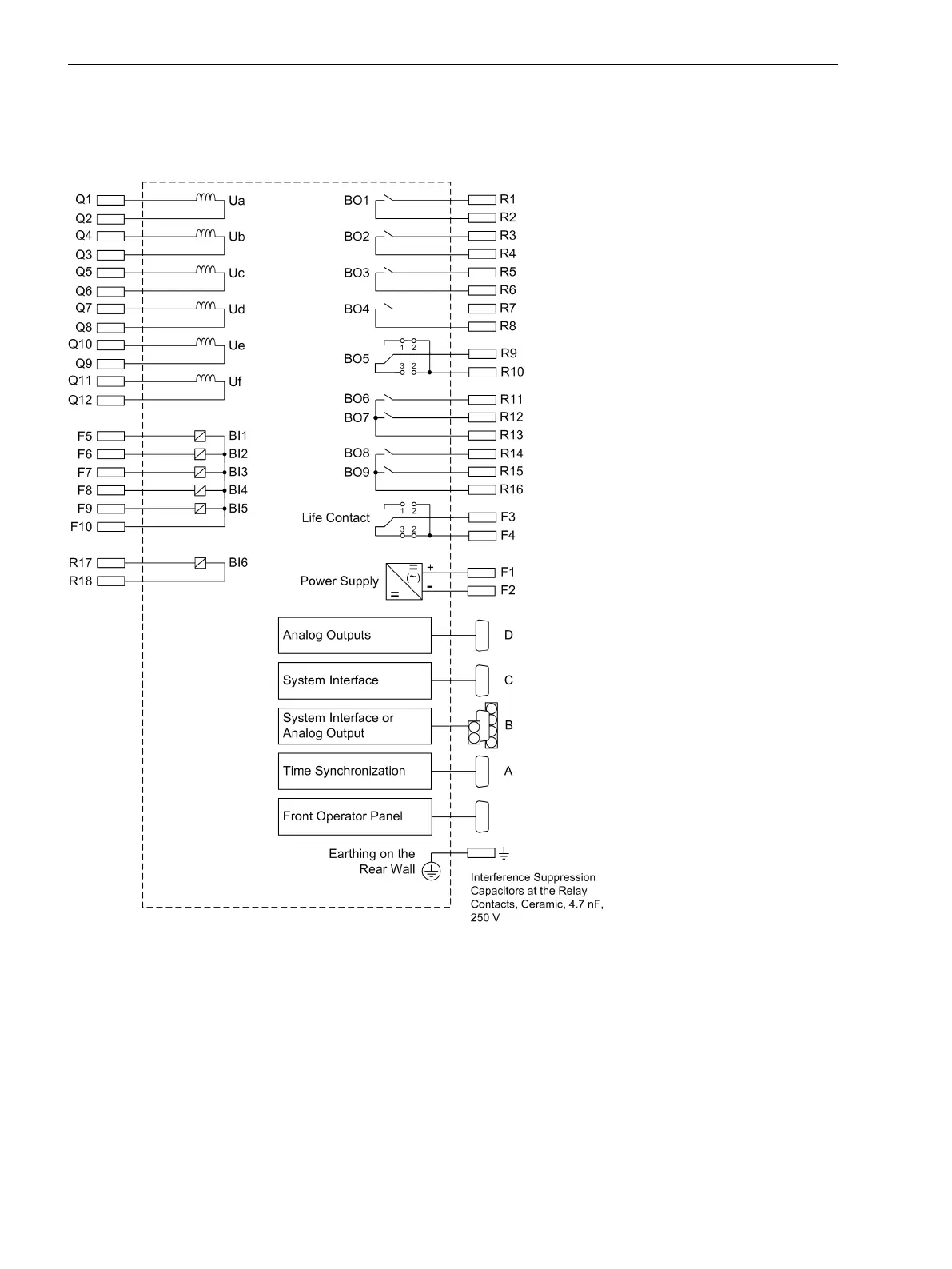

Figure B-1
General diagram for 7VE61**-*E (panel flush mounted or cubicle mounted)
B.1
Terminal Assignments
B.1 Housing for Panel Flush and Cubicle Mounting
232 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
