7VE63**-*E
[schrankeinbau-7ve63-e-170203-oz, 1, en_GB]

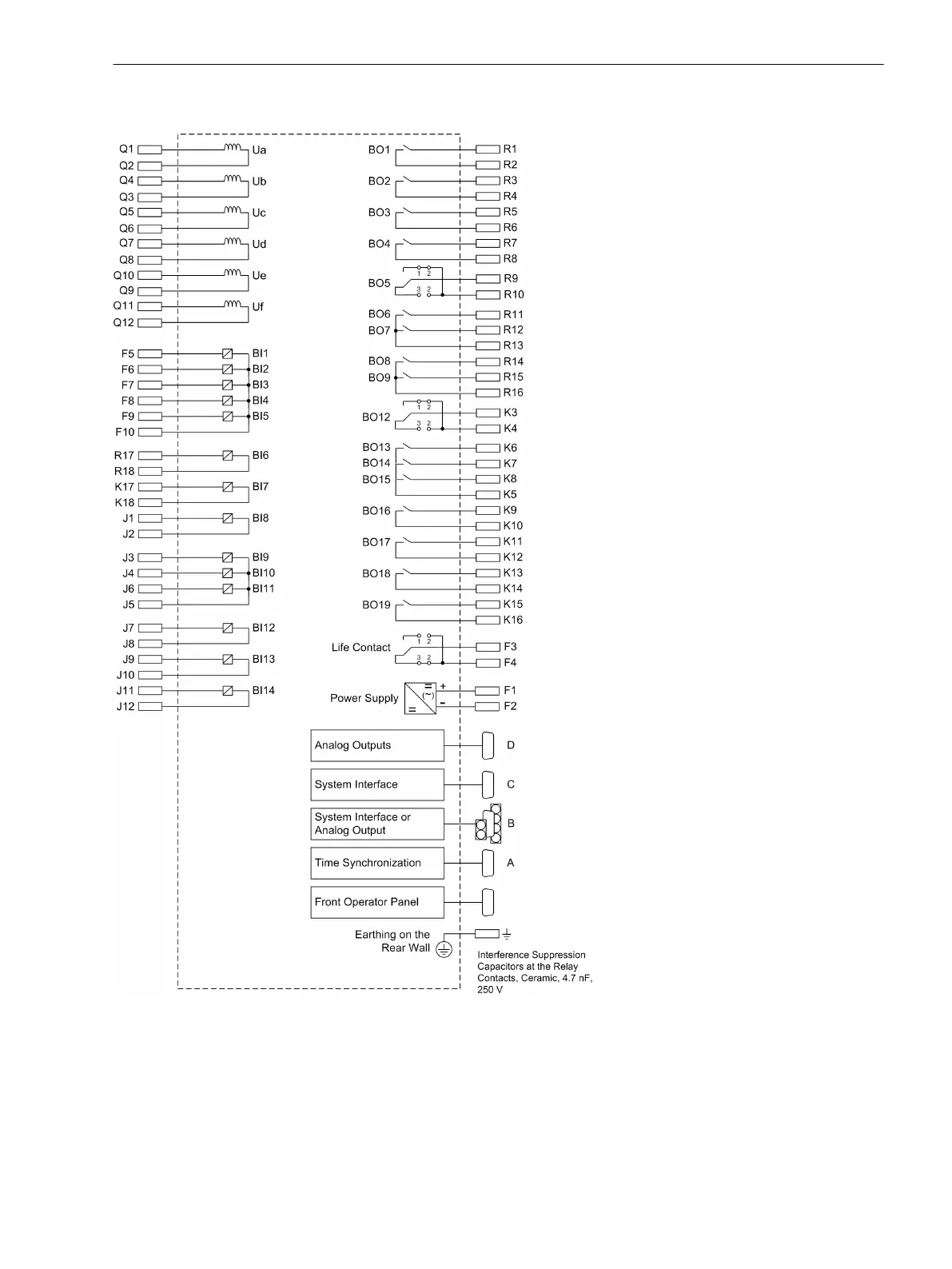

Figure B-2
General diagram of a 7VE63**-*E (panel flush mounted or cubicle mounted)
Terminal Assignments
B.1 Housing for Panel Flush and Cubicle Mounting
SIPROTEC 4, 7VE61 and 7VE63, Manual 233
C53000-G1176-C163-3, Edition 10.2017
