Siemens SIPROTEC 4 7VE61 - Special for Synchrocheck Applications

Special for Synchrocheck Applications
In the ordering option “Synchrocheck” the synchronization function provides the possibility to monitor up to 3
circuit breaker quasi parallel. In this way save wiring switching and test expenditure can be saved. In particular
this is an application in the 1
1
/
2
–circuit breaker technique. Also, for smaller power plants of a device can be
used up to 3 generators and it helps to save costs.

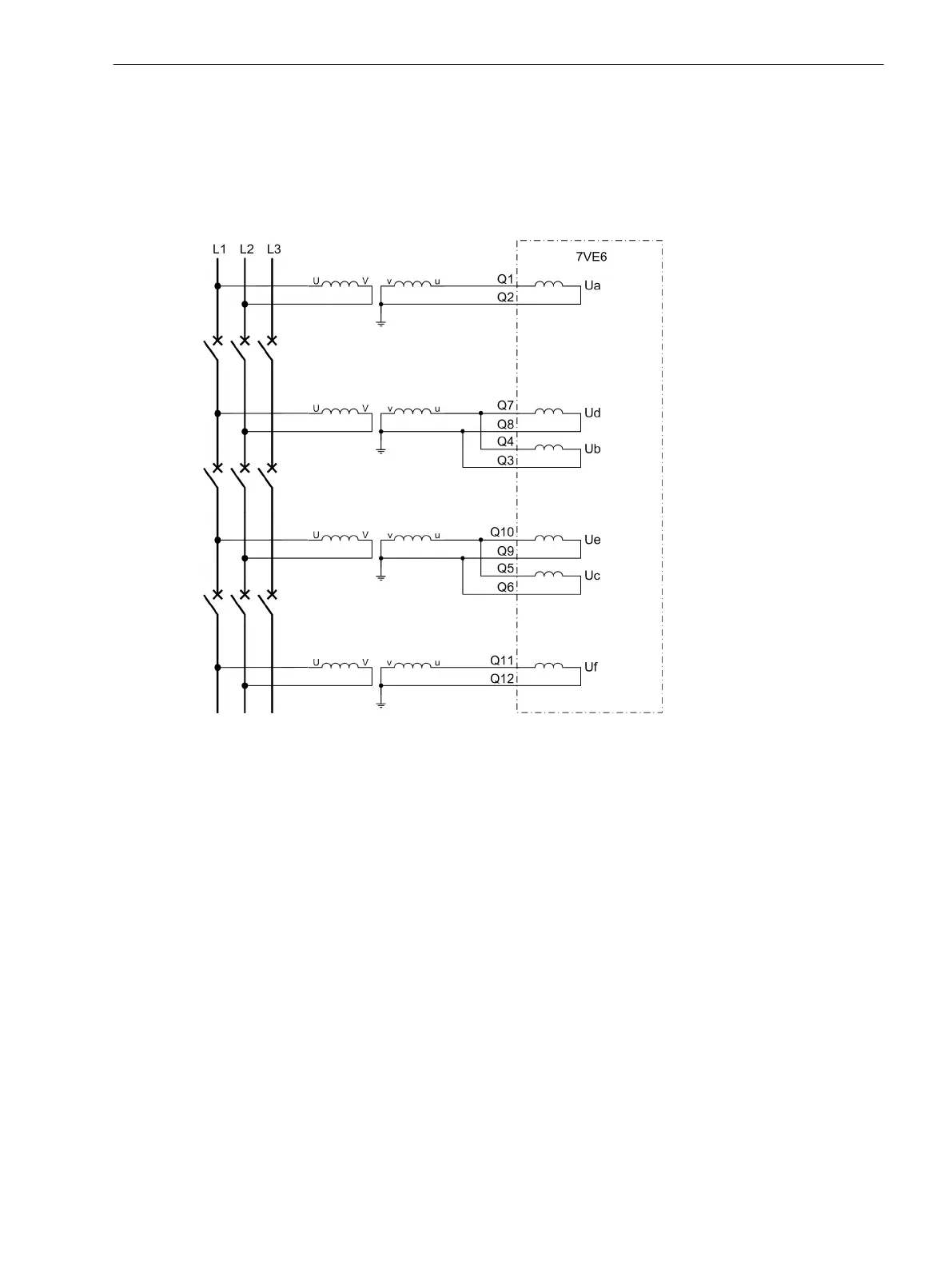

[ve6-anschluss-3-einkanalige-synccheck-030205-kn, 1, en_GB]
Figure C-8
Synchrocheck for several line ends
C.4
Connection Examples
C.4 Special for Synchrocheck Applications
