Siemens SIPROTEC 4 7VE61 User Manual

In the ordering option “Synchrocheck” the synchronization function can be set in the following way for two
switching devices. The two voltage inputs can be then used for monitoring purpose.
[ve6-anschluss-2-einkanalige-synccheck-030205-kn, 1, en_GB]

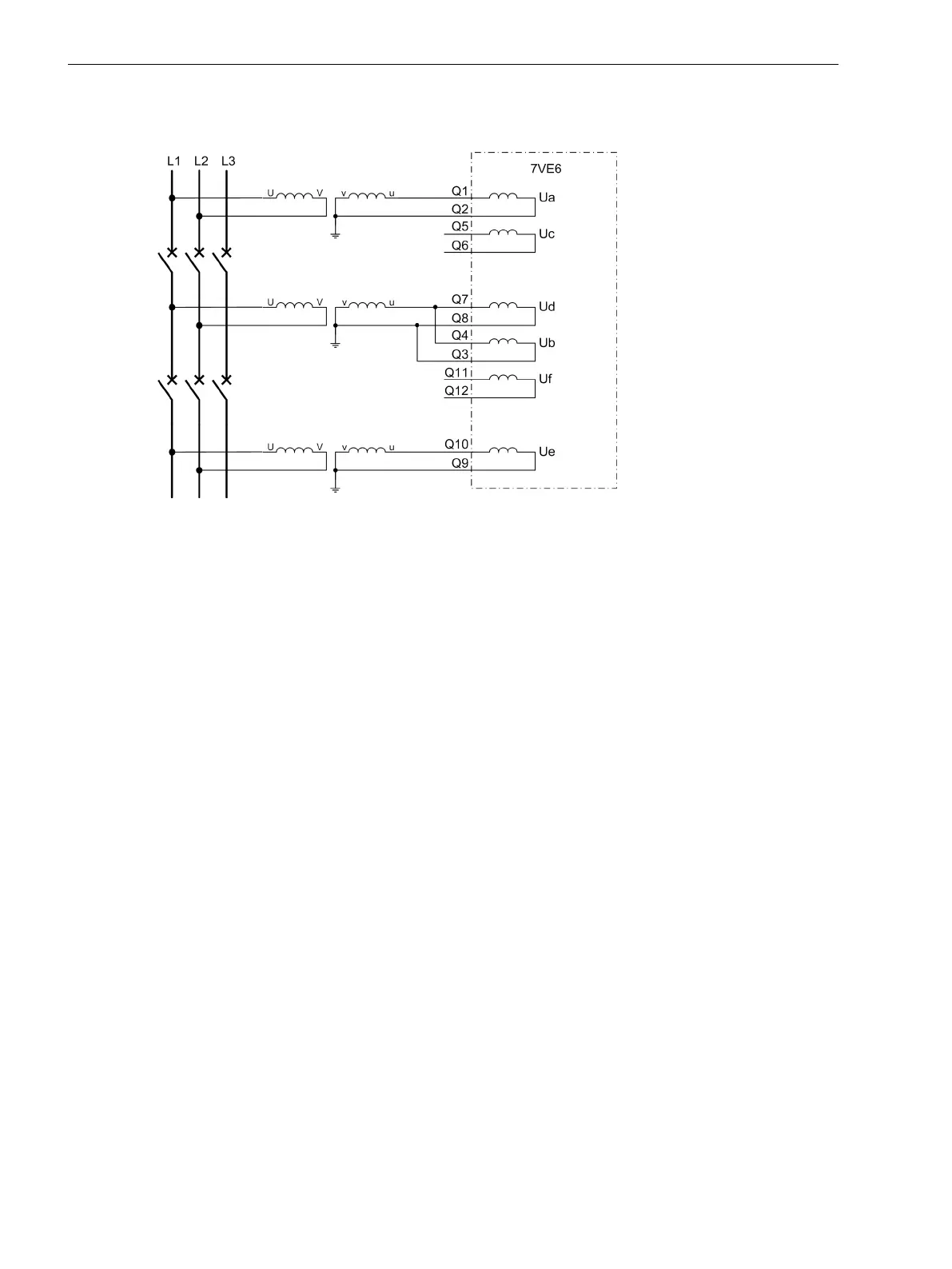

Figure C-9 Synchrocheck for two synchronizing points
Connection Examples
C.4 Special for Synchrocheck Applications
246 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
