NOTE
Setting address 610 FltDisp.LED/LCD to (Target on TRIP) is only reasonable if address 615 T MIN
LED HOLD is set to 0.
Die Einstellung der Adresse 610 FltDisp.LED/LCD auf (Target on TRIP) ist nur sinnvoll bei Einstel-
lung von Adresse 615 T MIN LED HOLD auf 0.
[logik-ruecksetz-gesp-led-081024, 1, en_GB]

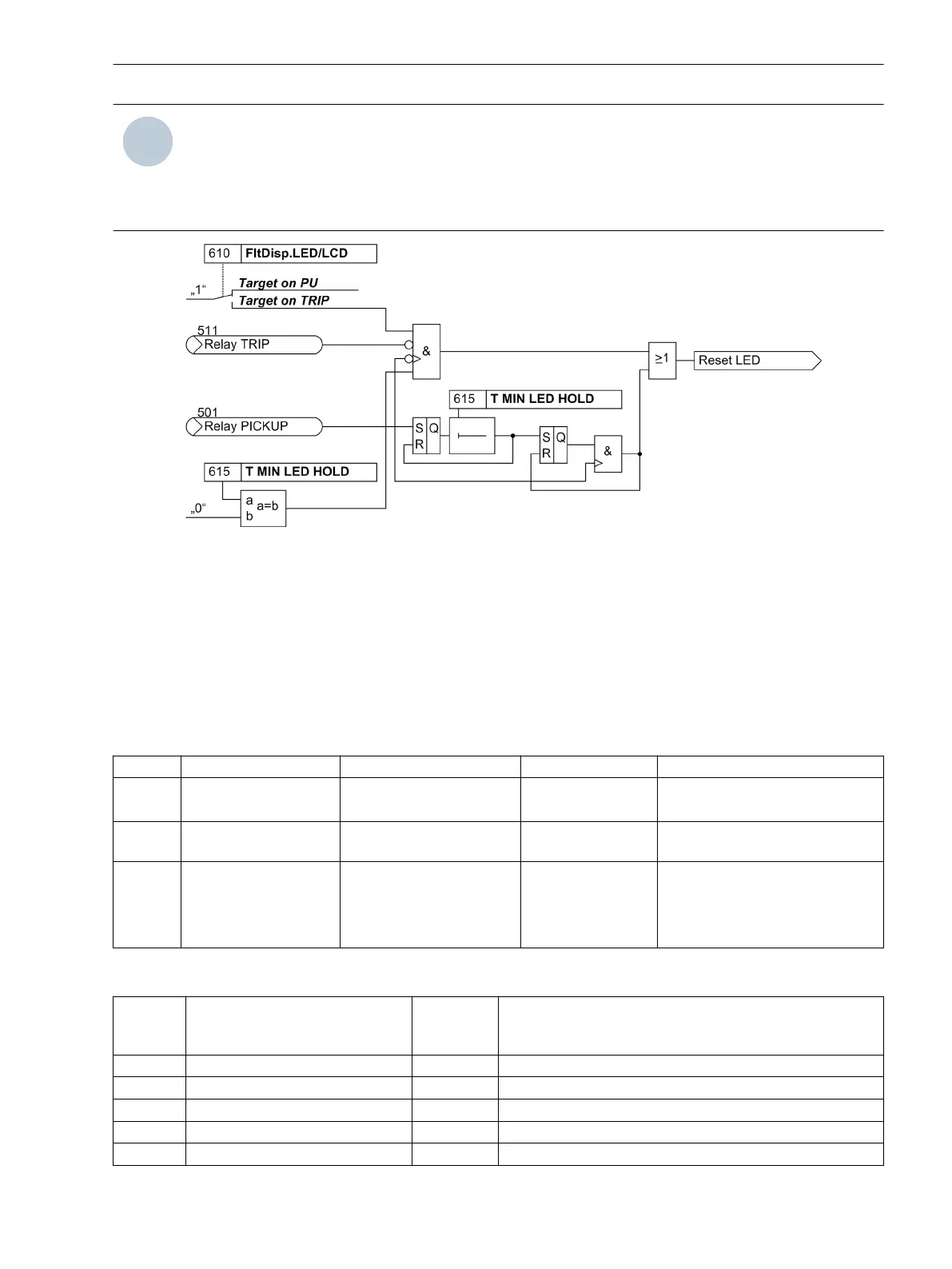

Figure 2-2 Creation of the resetting command for stored LEDs / relays
Default display of a 4-line display
After startup of the device featuring a 4-line display, measured values are displayed by default. The arrow keys
on the device front allow different displays of the measured values to be selected for the so-called default
display. The start image of the default display, which is displayed by default after startup of the device, can be
selected via parameter 640 Start image DD. The available representation types for the measured value are
listed in the Appendix.
Settings
Addr.
Parameter Setting Options Default Setting Comments
610 FltDisp.LED/LCD Target on PU
Target on TRIP
Target on PU Fault Display on LED / LCD
615 T MIN LED HOLD 0 .. 60 min 5 min Minimum hold time of latched
LEDs
640 Start image DD image 1
image 2
image 3
image 4
image 1 Start image Default Display
Information List
No.
Information Type of
Informa-
tion
Comments
- Reset LED IntSP Reset LED
- Test mode IntSP Test mode
- DataStop IntSP Stop data transmission
- UnlockDT IntSP Unlock data transmission via BI
- >Light on SP >Back Light on
2.1.1.2
2.1.1.3
Functions
2.1 General
SIPROTEC 4, 7VE61 and 7VE63, Manual 27
C53000-G1176-C163-3, Edition 10.2017
