Housing for Panel Surface Mounting
7VE61**–*B
[schalttafelaufbau-7ve61-b-170203-oz, 1, en_GB]

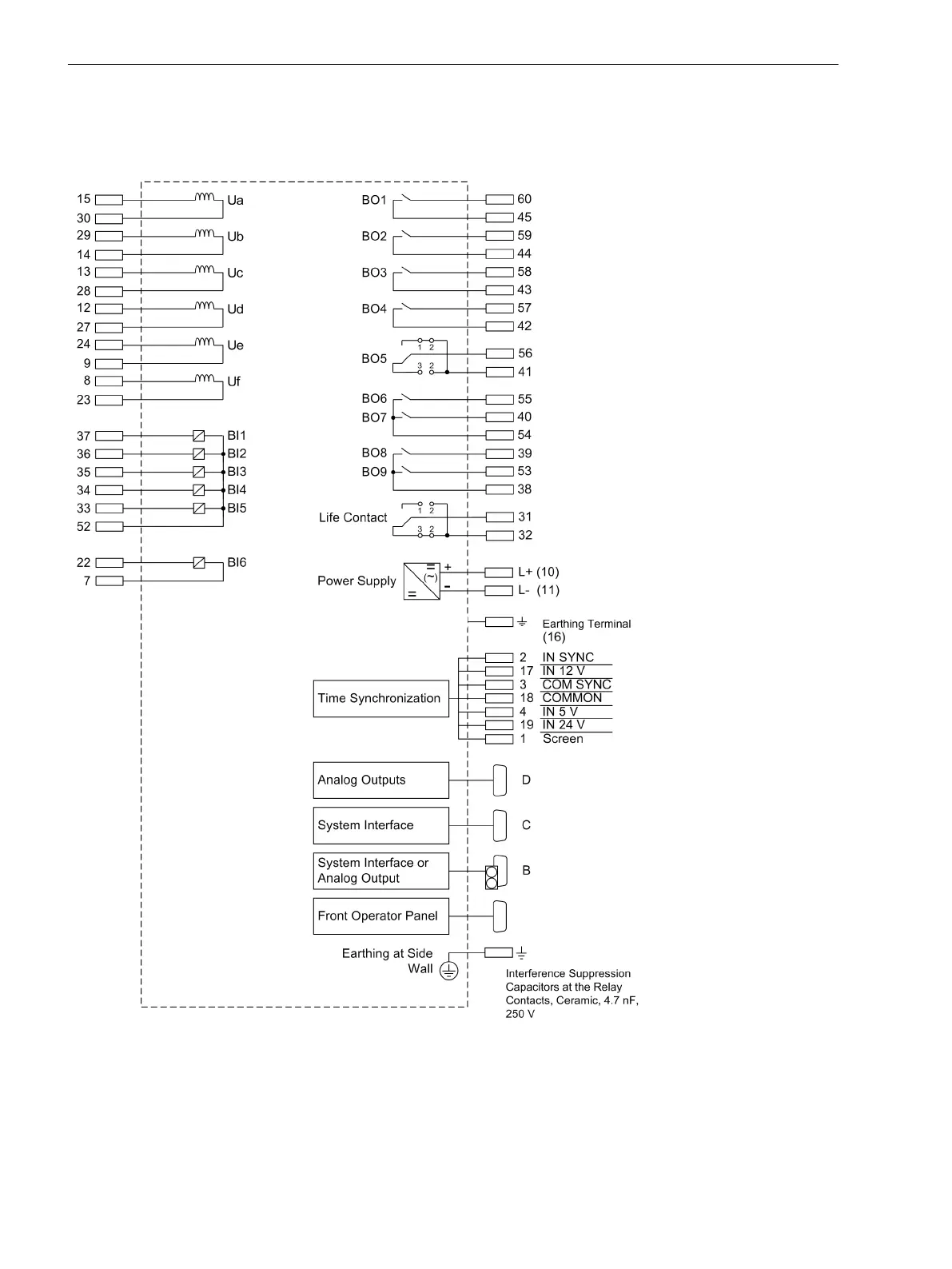

Figure B-3
General diagram of a 7VE61**-B (panel surface mounting)
B.2
Terminal Assignments
B.2 Housing for Panel Surface Mounting
234 SIPROTEC 4, 7VE61 and 7VE63, Manual
C53000-G1176-C163-3, Edition 10.2017
