Dimensions
Panel Flush and Cubicle Mounting (Housing Size
1
/
3
)
[massbild-schrankeinbau-gr-1-3-170203-oz, 1, en_GB]

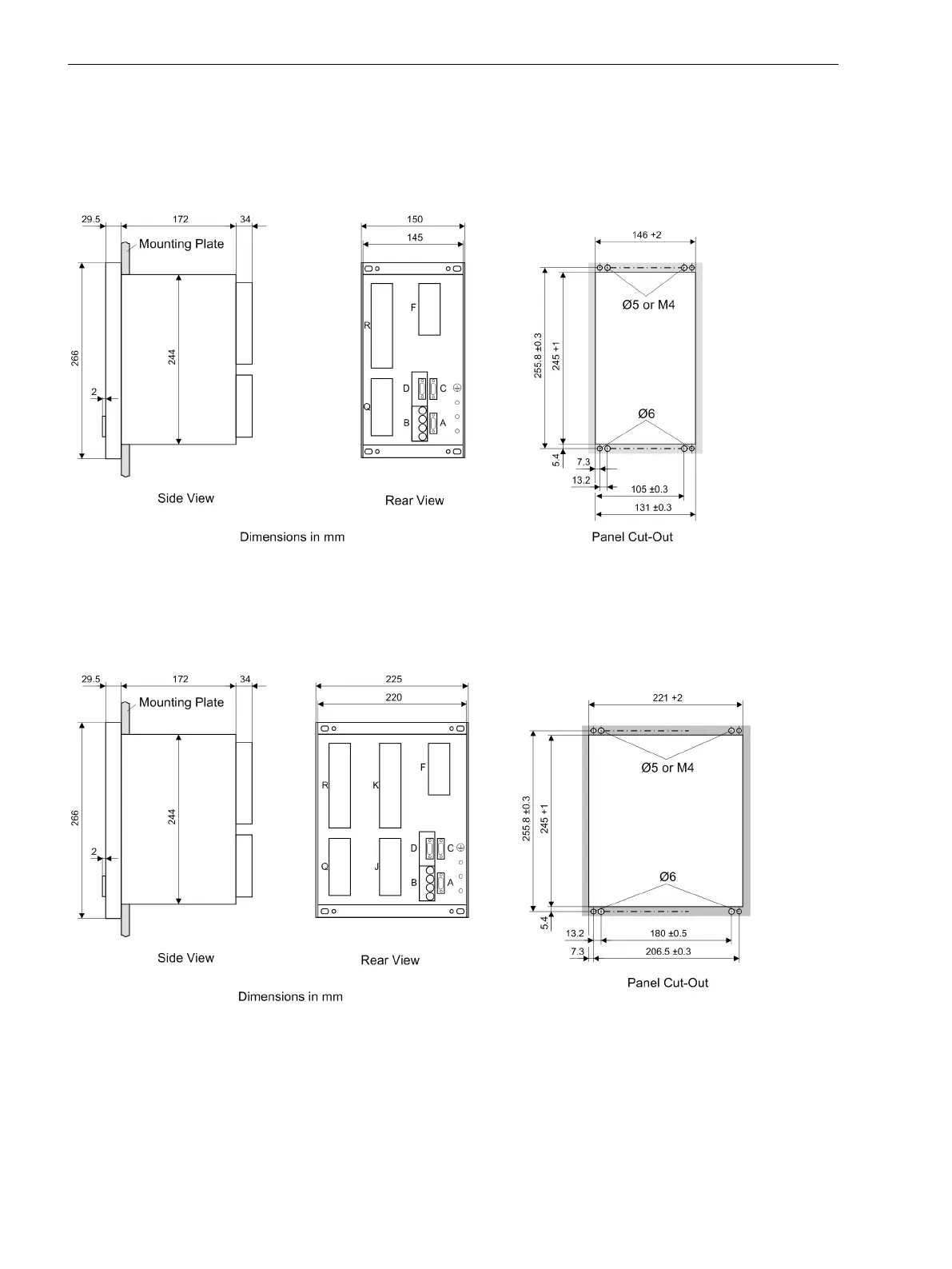

Figure 4-1
Dimensions of a device for panel flush mounting or cubicle installation (size
1
/
3
)
Panel Flush and Cubicle Mounting (Housing Size
1
/
2
)
[massbild-schrankeinbau-gr-1-2-170203-oz, 1, en_GB]
Figure 4-2
Dimensions of a device for panel flush mounting or cubicle installation (size
1
/
2
)
4.13
4.13.1
4.13.2
Technical Data
4.13 Dimensions
