If plant conditions of the voltage transformers connected in open delta connection (V-connection) are avail-
able, it is recommended the following connection. In terms of electricity, there is no difference for the
synchronization function to be connected to a three-phase voltage transformer. Essentially, it is also possible a
mixed connection. On the one side three-phase isolated voltage transformer and on the other side V-connec-
tion. If synchroscope is additionally connected, it is necessary a galvanically isolation via an interposing trans-
former.
[ve6-spannungswdl-v-schaltung-030203-kn, 1, en_GB]

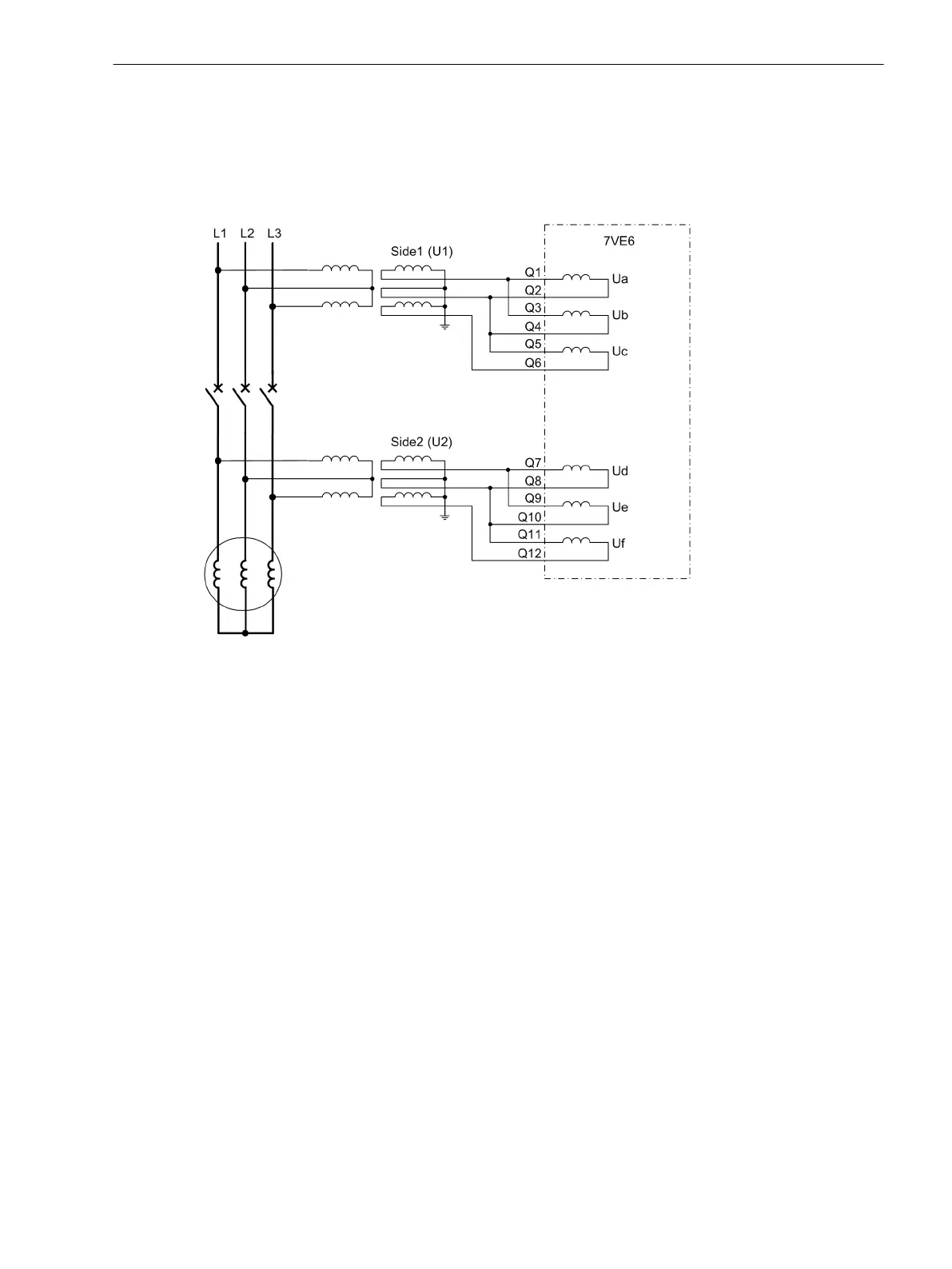

Figure C-4
Connection to a voltage transformer in open delta connection (V-connection)
Connection Examples
C.2 Voltage Connectors
SIPROTEC 4, 7VE61 and 7VE63, Manual 241
C53000-G1176-C163-3, Edition 10.2017
