Appendix
A.3 I/O Connections and Wiring
FUE1010 IP65 NEMA 4X
192 Operating Instructions, 12/2014, A5E03086491-AC
Terminal Block Wiring - 7ME39400SA00 - Analog Input Module - Single Channel
(Refer to manual drawing 1010N-5S2-7)
These connection diagrams apply to the part numbers listed below.
Table A- 20 Connection Diagrams and Part Numbers
1010N-5S2-7 Drawing
FUS1010
7ME3530, 7ME3533
FUH1010
7ME3600, 7ME3603

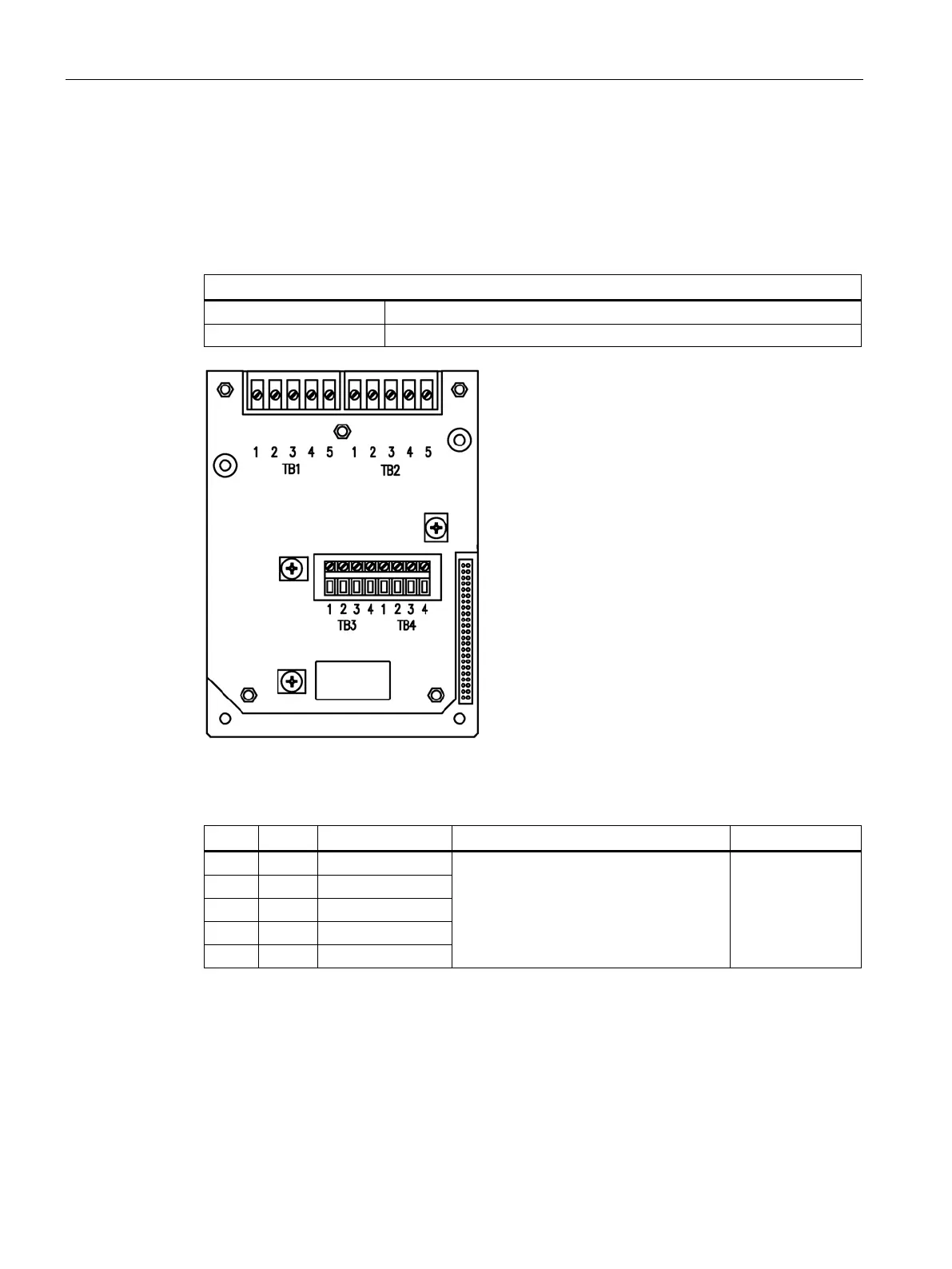

Figure A-6 7ME39400SA00 - Analog Input Module
Table A- 21 Input/Output Wiring TB1 7ME39400SA00 - Analog Input Module
Pin
Color
Function
Description
Wiring/Cable
TB1-1
Black
RTD Current High
RTD Temperature measurement T1 or
Channel 1 Ts (Supply Temperature)
AWG. 14 - 24 /
1000 Ft max w/o
factory approval
TB1-2
White
RTD Voltage High
TB1-3
Green
RTD Voltage Low
TB1-4
Red
RTD Current Low
TB1-5
Blue
Ground
