Connecting
5.4 Programming the Transmitter
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
51

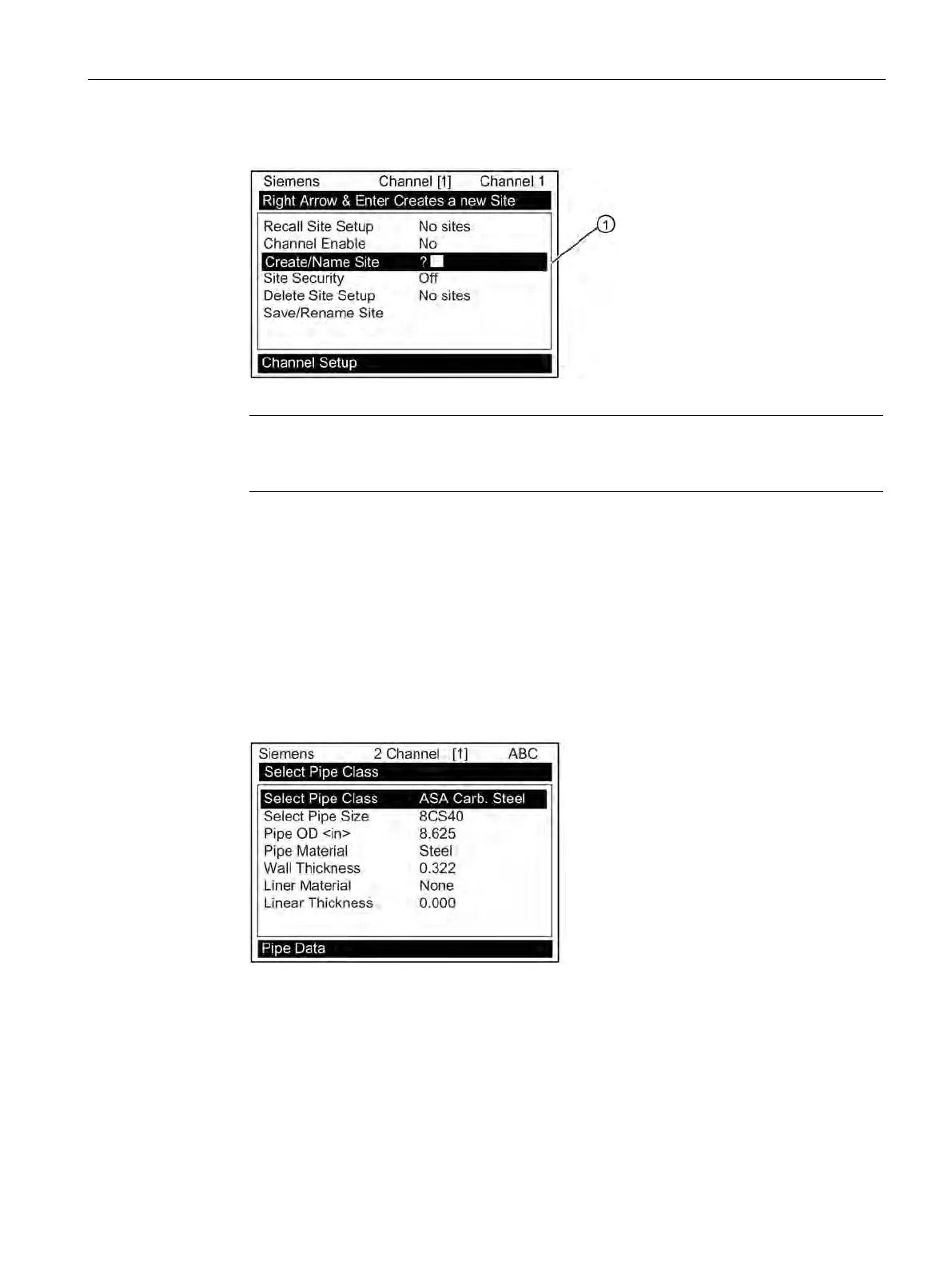

4. Press <ENTER> to create Site name (e.g., ABC). (See figure below.)
Insert desired name (8 characters max.)
Note
To select letters: Press <Right Arrow> to cursor and then press <Up/Down Arrow> to
select letters and numbers. Press <ENTER> when done.
5. Press the <Left Arrow> and return to the [Channel Setup] menu.
Pipe Class is a pre-loaded set of default pipe sizes for various ASA and metric pipes. If the
intended pipe is standard the user may select this function to pre-load necessary pipe data,
otherwise enter data manually using [Pipe O.D.], [Pipe Material] and [Wall Thickness].
1. Press the <Right Arrow> to select [Select Pipe Class]. Press <Right Arrow> again and
scroll to desired Pipe Class.
2. Press <ENTER> to select.
