Scale parameters and functions
8.4 Calibration procedure
SIWAREX WP231
Manual, 07/2014, A5E31238908A-02
79

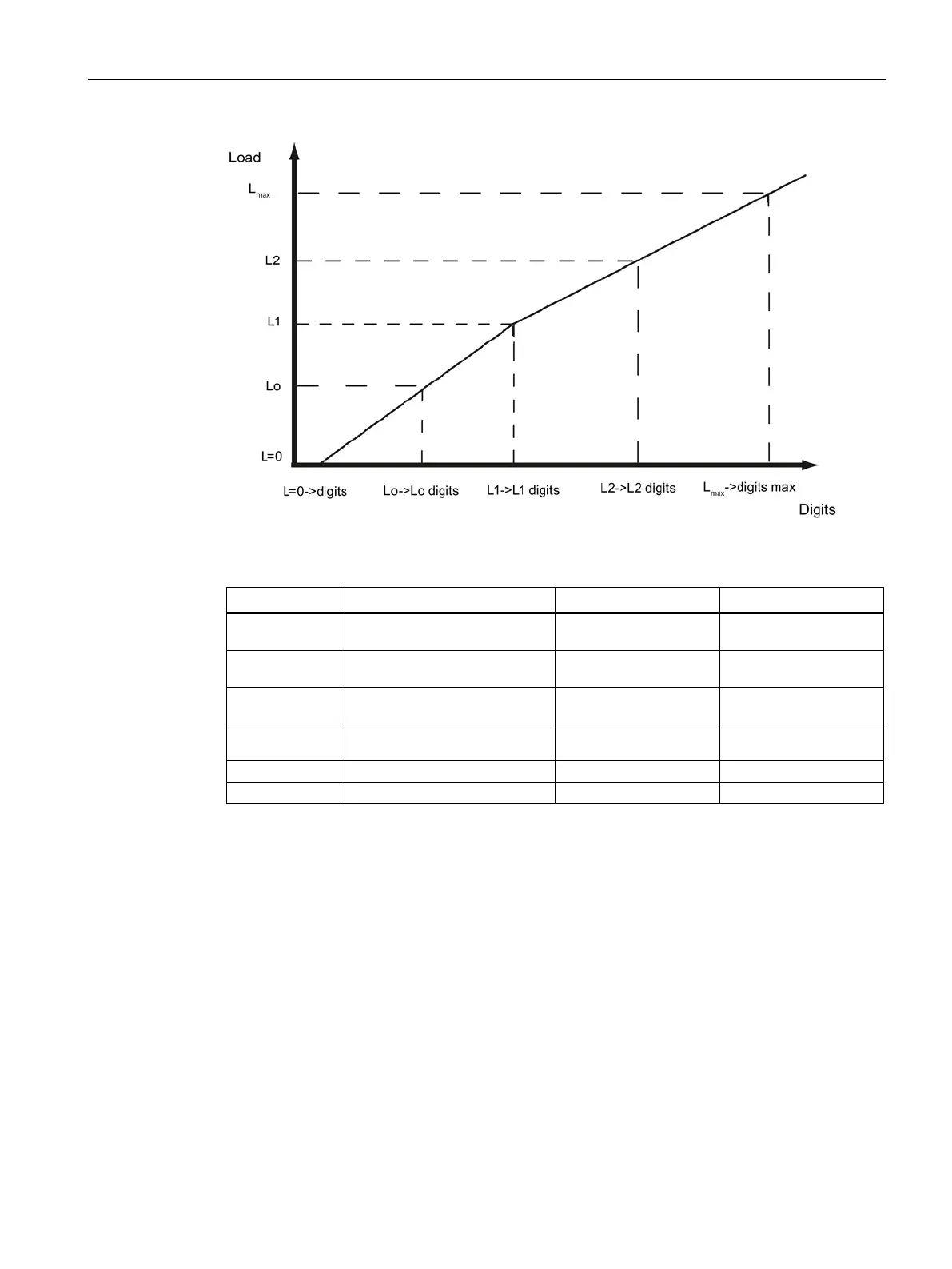

Figure 8-4 Linearizing the scales' characteristic curve
L=0 100 kg load cell (2 mV/V) not
loaded
Approx. 0
L0 Mechanical installation on load cell
(dead load)
e.g. 25 kg
Approx. 500 000
L1 Calibration weight 1 placed onto
scale
e.g. 60 kg
Approx. 1 200 000
L2 Calibration weight 2 placed onto
scale
e.g. 80 kg Approx. 1 650 000
L
max
Nominal weight of load cell 100 kg Approx. 2 000 000
L
max
+10 % Rated weight + approx. 10 % Approx. 110 kg Approx. 2 200 000
